Cable routing for the upper-left quadrant
Route cabling from slots in numerical order starting with the cables for slot #1.
1. Route cables for slots #1 and #2 directly to the left through the side comb, as shown in the following gure.

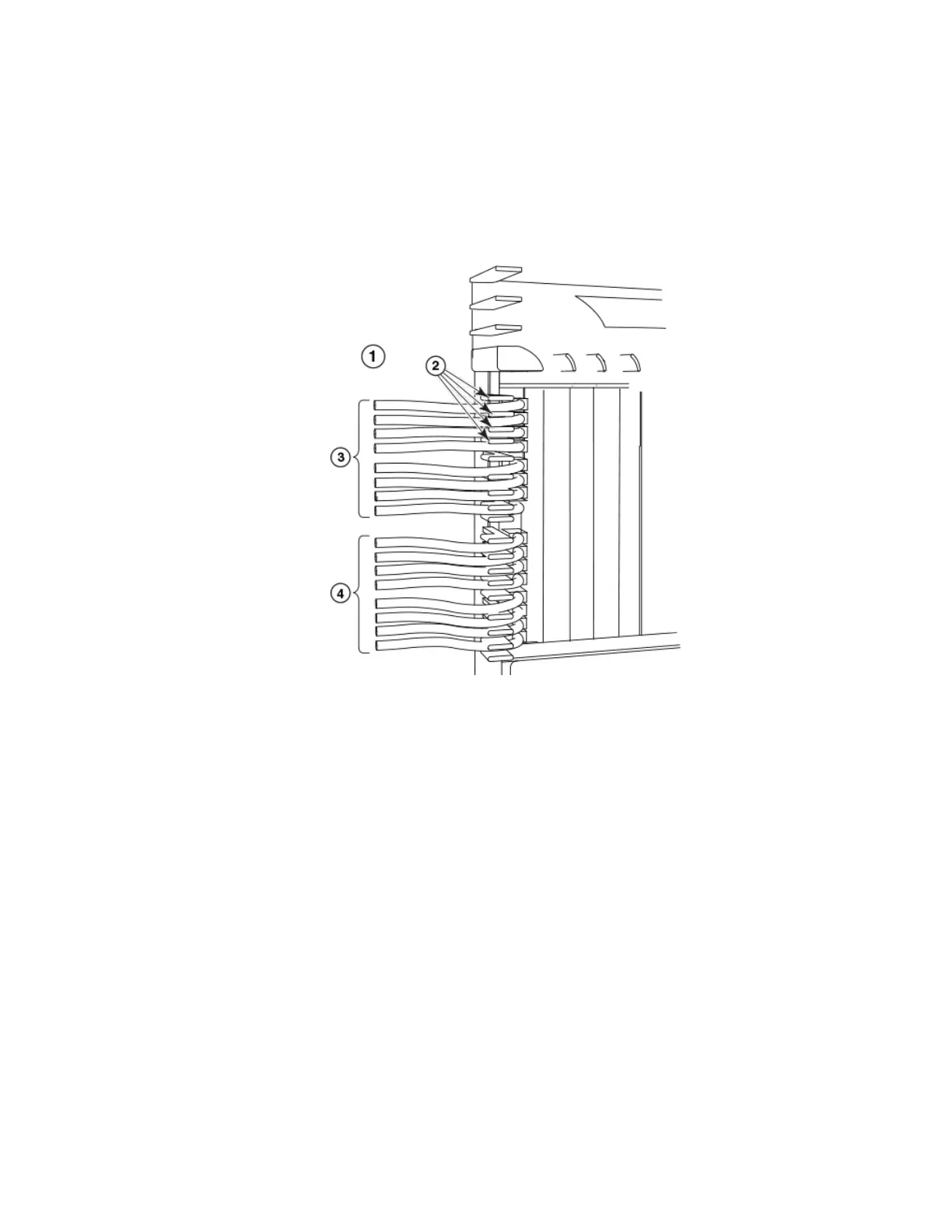

FIGURE 77 Routing upper-left quadrant cables
1. Upper left quadrant
2. Cables from slot #1
3. Side combs (18)
4. Cables from slot #2
Installing a Brocade MLXe Series-32 router
Brocade NetIron MLXe Series Hardware Installation Guide
158 53-1004203-04
