Follow these steps to connect a DC power source.
1. Use a #1 Phillips screwdriver to remove the screw that secures the safety cover, as shown in the following gure. Remove the
safety cover.

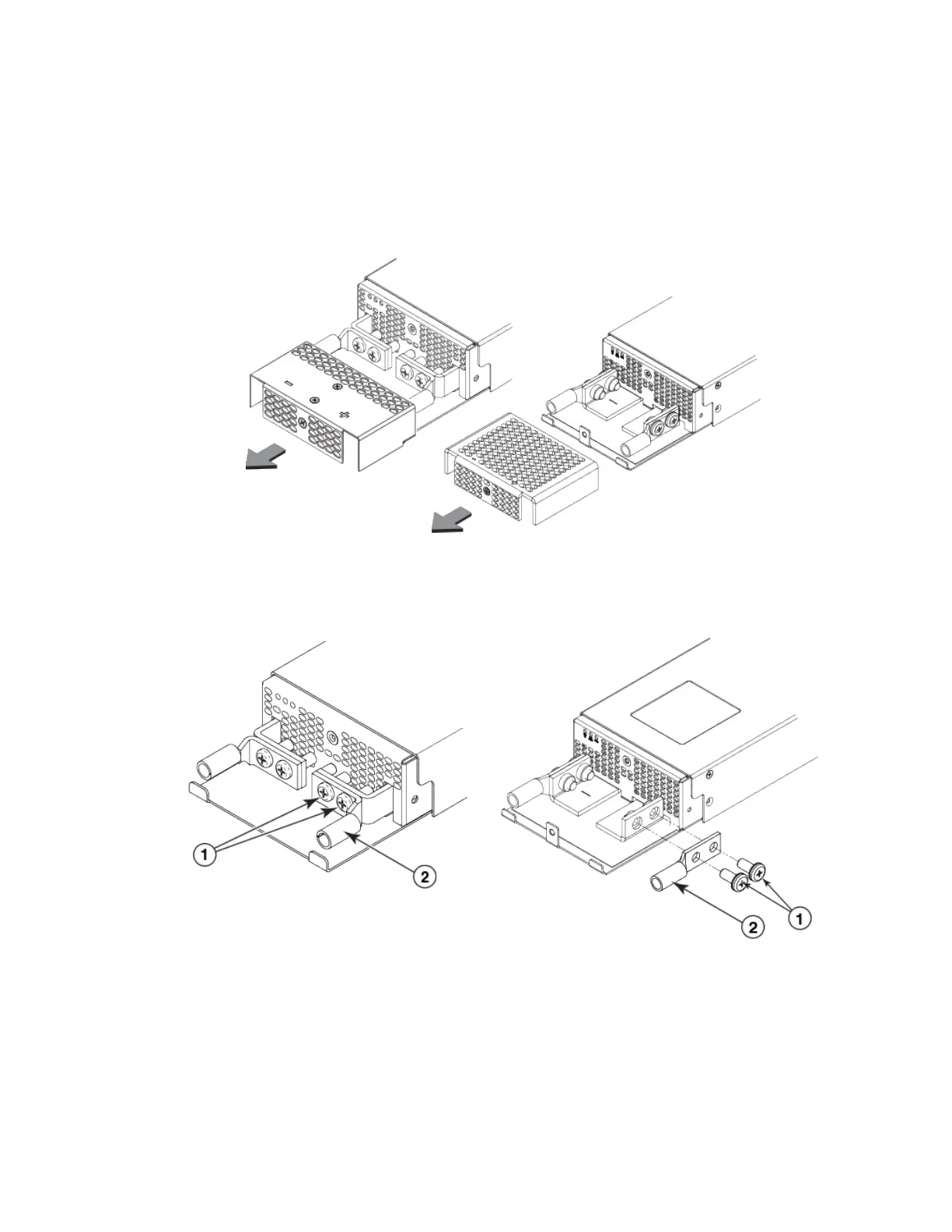

FIGURE 88 Removing the safety cover (2400W power supply and 3000W power supply displayed)
2. Use a #2 Phillips screwdriver to unscrew the power lugs. Refer to the following gure.
FIGURE 89 Removing the power lugs (2400W power supply and 3000W power supply displayed)
1. Power lug screws 2. Power lug
Installing a Brocade MLXe Series-32 router
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 169
