Brocade MLXe Series-8 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
• Up to three switch fabric modules.
• Up to eight interface modules.
• Up to four power supplies (AC or DC).
For a detailed list of components that ships with each router, refer to Brocade MLXe Chassis Bundles on page 277.

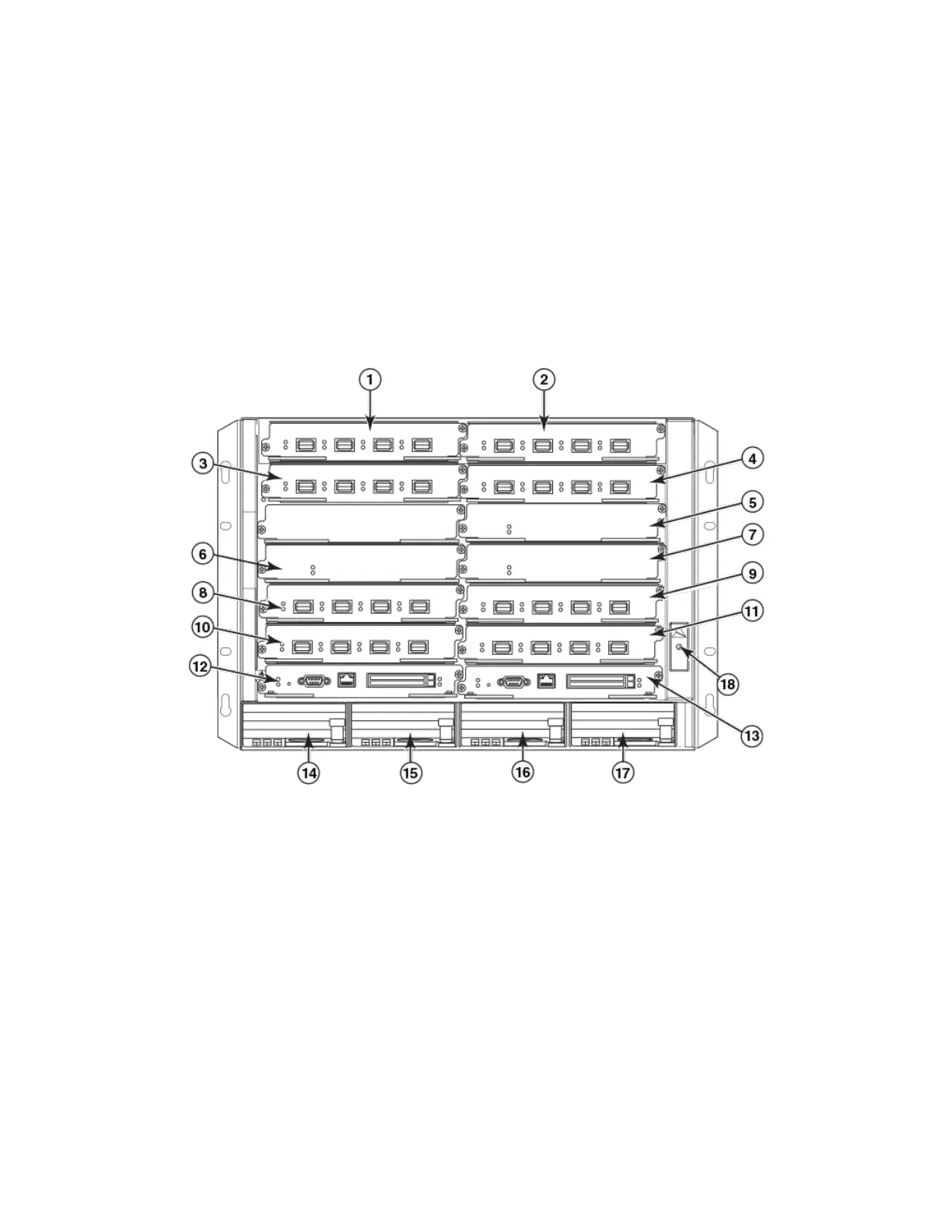

FIGURE 2 Brocade MLXe Series-8 router
1. Interface slot 1
2. Interface slot 2
3. Interface slot 3
4. Interface slot 4
5. Switch fabric slot 1
6. Switch fabric slot 2
7. Switch fabric slot 3
8. Interface slot 5
9. Interface slot 6
10. Interface slot 7
11. Interface slot 8
12. Management slot 1
13. Management slot 2
14. Power supply slot 1
15. Power supply slot 2
16. Power supply slot 3
17. Power supply slot 4
18. ESD connector
Brocade MLXe Series-16 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
Hardware features
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 23
