3. Remove the fan assembly by grasping the handle on the faceplate and pulling the assembly toward you as shown in Replacing
the rear fan assemblies in 16-slot routers on page 258. Pulling the fan assembly unseats the fan connector from the device.
DANGER
The Brocade NetIron MLX Series 32 fan assembly is heavy and will be o-balance as you remove it. Use both
hands on the handle.
DANGER
Be careful not to accidently insert your ngers into the fan tray while removing it from the chassis. The fan may
still be spinning at a high speed.

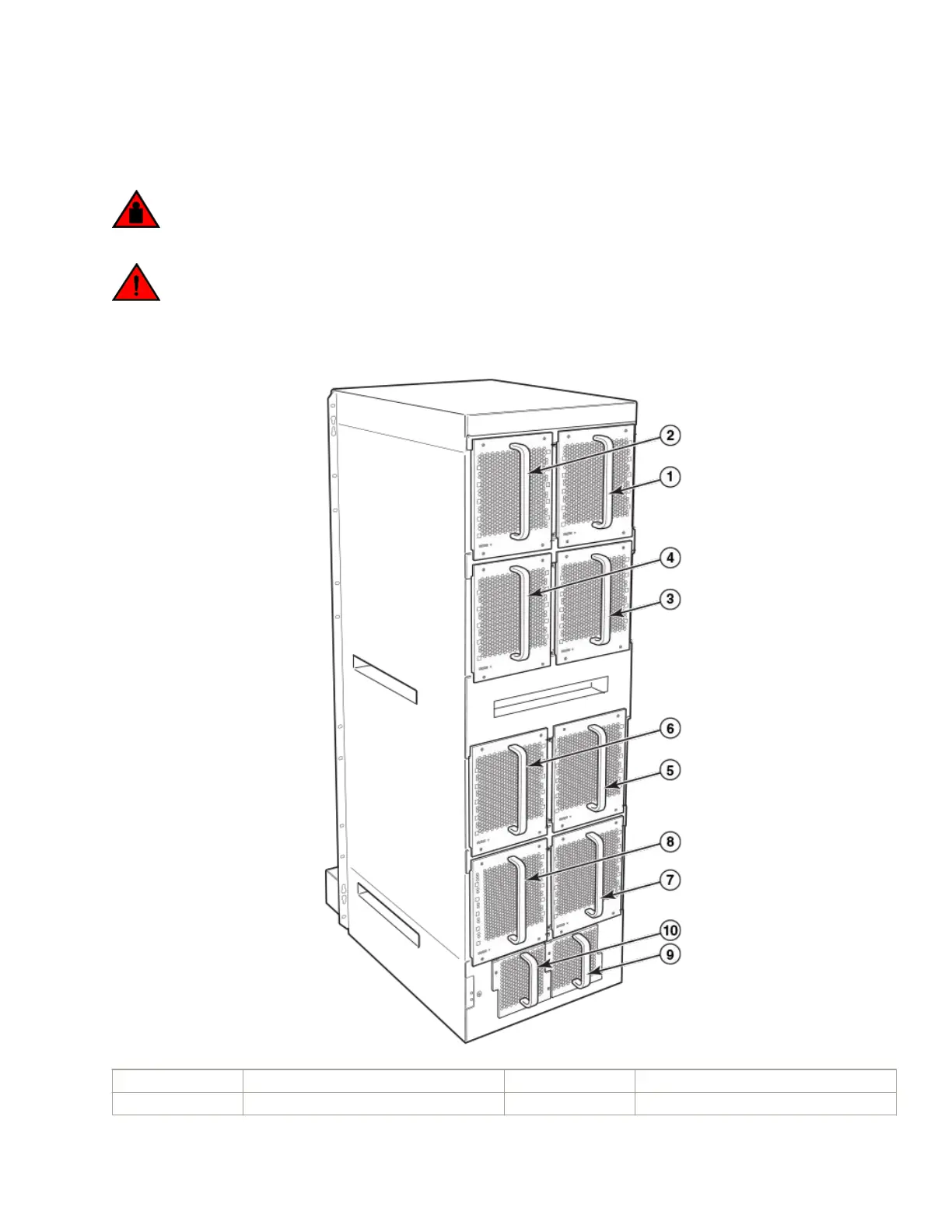

FIGURE 111 32-slot router fan assemblies
1 Fan module 1 6 Fan module 6
2 Fan module 2 7 Fan module 7
Replacing fan assemblies
Brocade NetIron MLXe Series Hardware Installation Guide
53-1004203-04 257
