3. Installation Information PreciseFlex 100 Robot
Unpacking and Handling Instructions Part Number: 603988 Rev. A

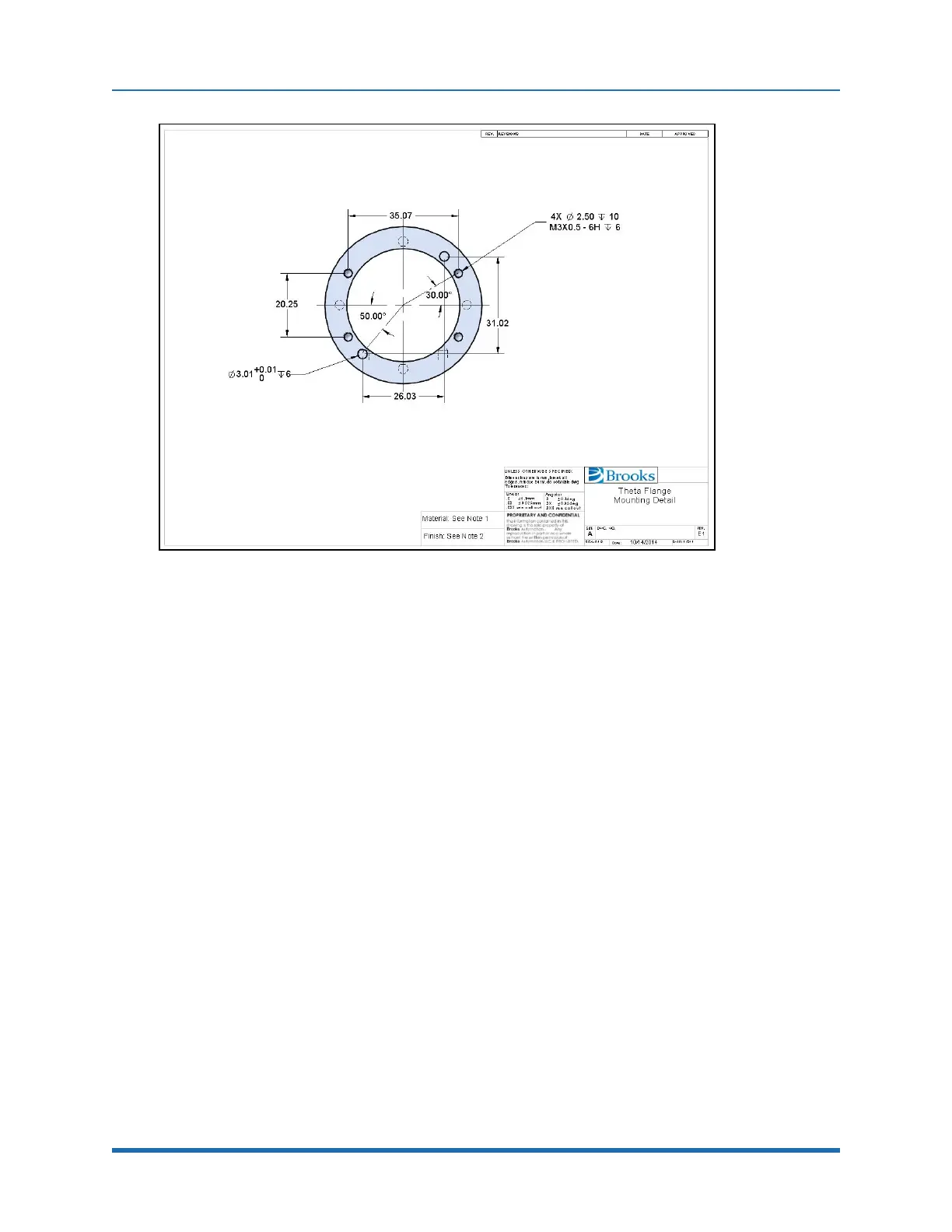

Figure 3-10: Theta Flange Mounting Detail
Unpacking and Handling Instructions
PreciseFlex
TM
robots are shipped in wooden crates with international ratings and foam inserts to
protect the robots. As the robots weigh 25 kgs or more, two persons should move the robot to the
installation location.
Mounting Instructions
PreciseFlex robots must be attached to a rigid surface that can withstand lateral forces of 200
Newtons without moving or vibrating. The robot X-axis has T-Slots to accommodate M4 Economy
T-Nuts for mounting screws located as shown above. M4 Economy T-Nuts, PN NDM04022 are
available from Buckeye Fasteners.
46
Copyright © 2023 Brooks Automation, Inc.
