6. Service Procedures PreciseFlex 100 Robot
Replacing the X-axis Timing Belt Part Number: 603988 Rev. A
Step Action
15.

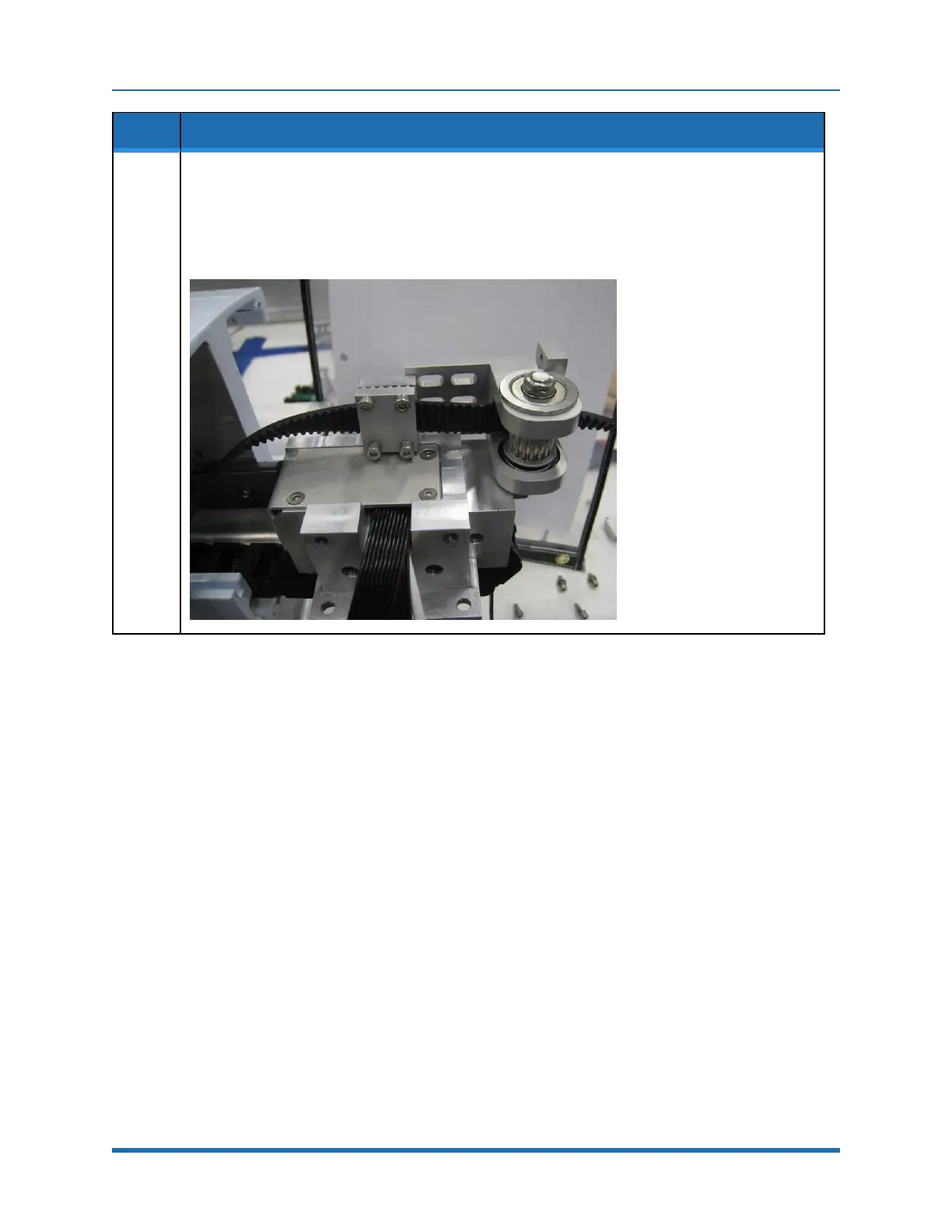

Re-assemble the robot.
When re-attaching the E-chain bracket to the X extrusion, first install the M3 X 6 mm FHCS to attach
the E-chain bracket.
Then pull the cables in the E-chain tight, mark the cables with a pen at the bracket, and then push the
cables 5 mm back into the E-chain so that the cables are floating in the Echain and not stretched tight.
Secure the harness with (2) tie wraps around the E-chain bracket fingers.
96
