12 STANDARD ADJUSTMENTS
BM-2000
96

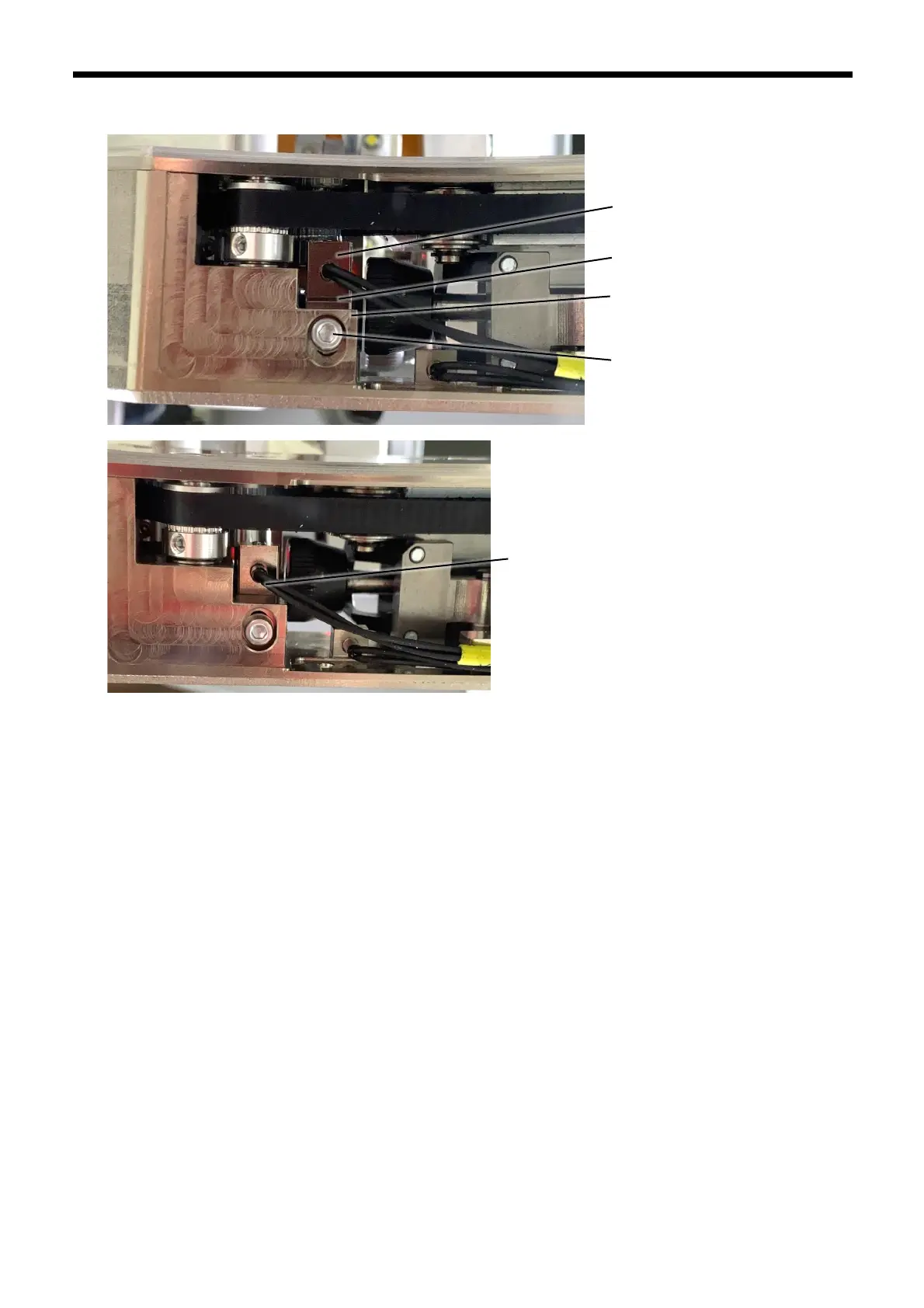

3. Loosen the screw (3), and then move the sensor bracket (6) so that the reference line on the sensor bracket (4) is aligned
with the edge of the arm (5).
4. Tighten the screw (3).
5. Install the bottom cover (2).
Reference line
(4)
(5)
(3)
When reference line and edge are
aligned
