12.4 Adjusting the positioning LED marker
Adjust the LED marker which is used for positioning when setting the cloth at the start of gluing.
[Preparation before adjustment]
1. Turn on the power switch to start the bonding machine.

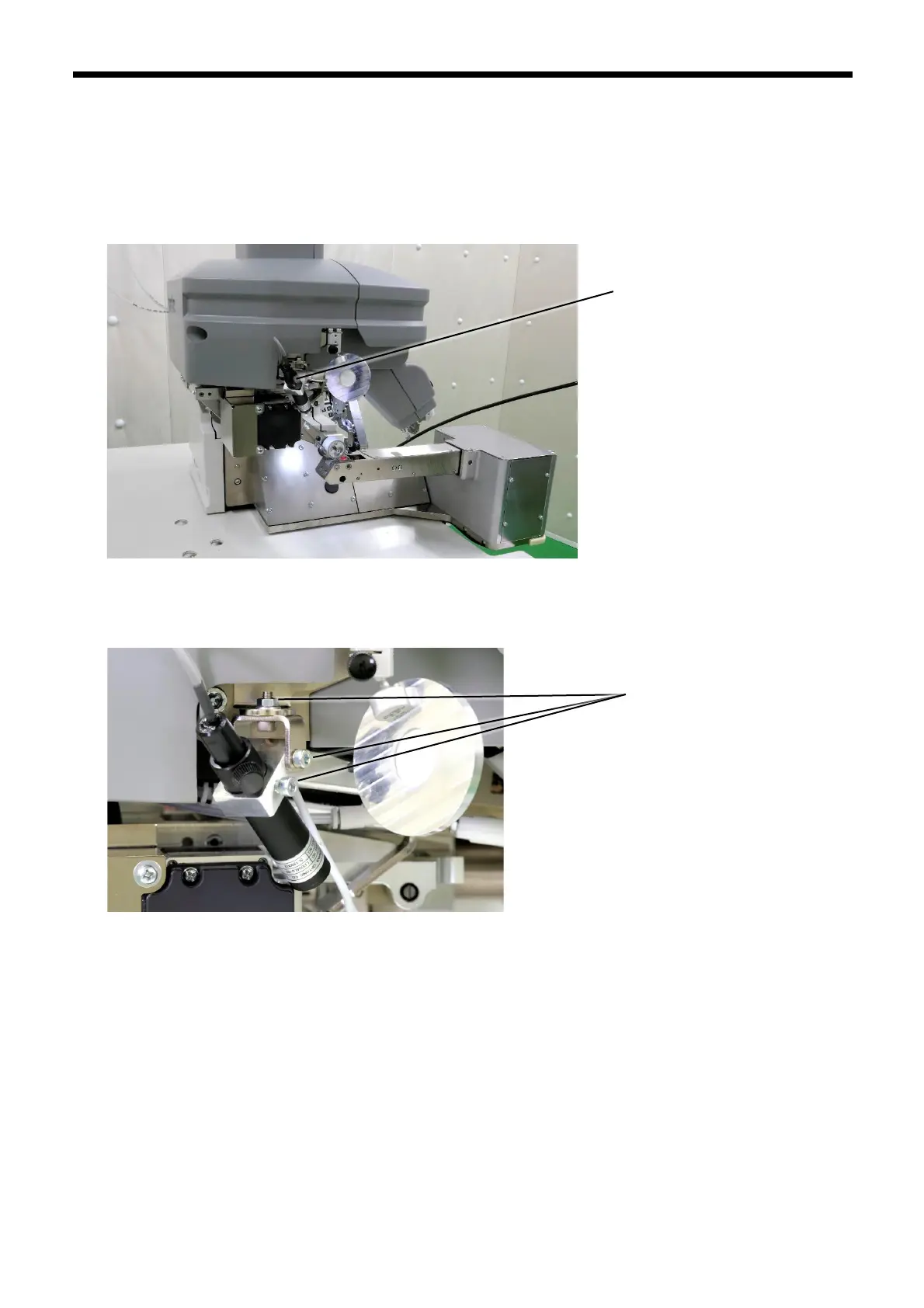

2. Depress the treadle once so that the positioning LED marker (1) illuminates.
[Positioning LED marker position adjustment]
1. Loosen the three screws (2).
(1)
(2)
