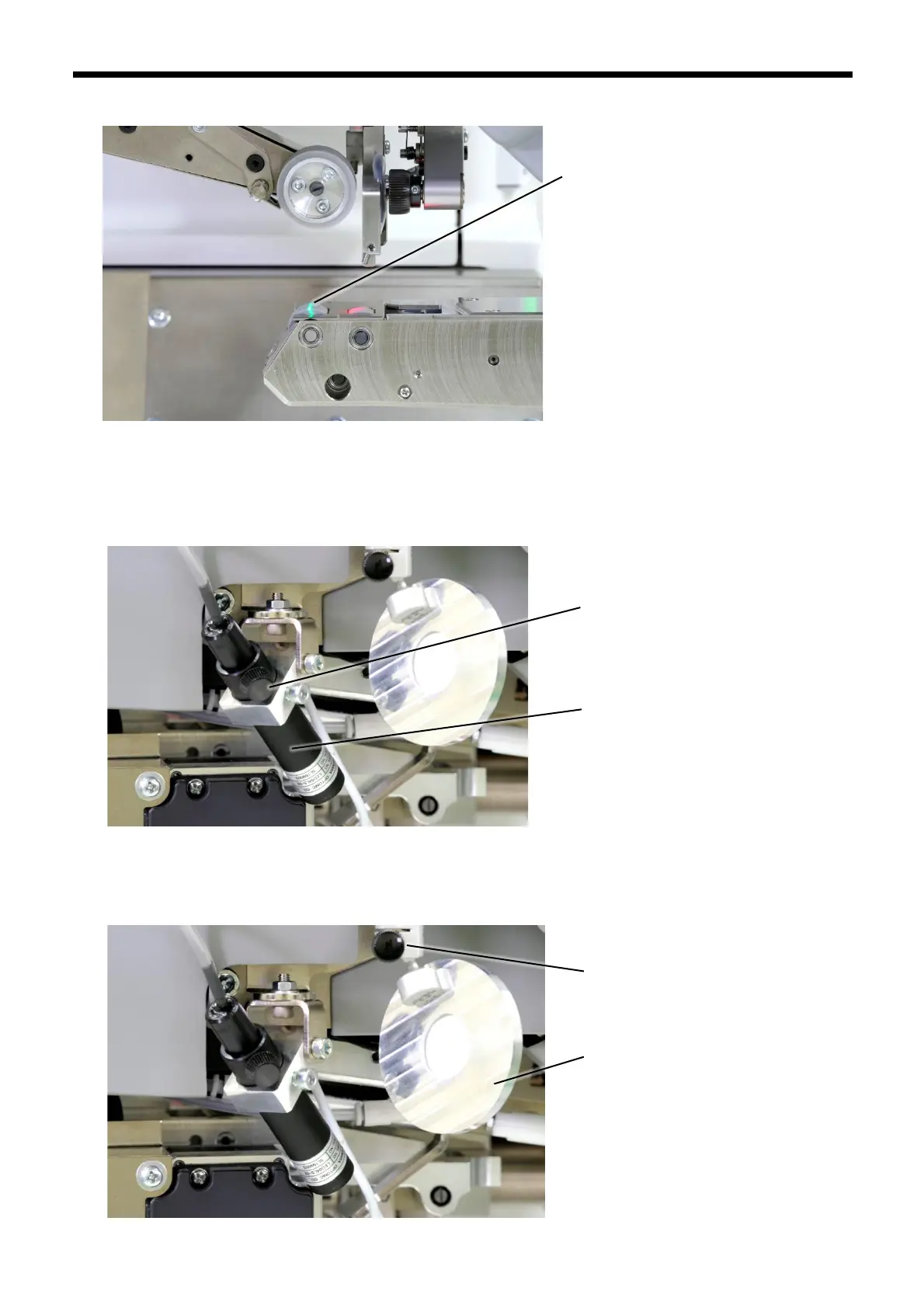

2. Adjust the position of the positioning LED marker (1) so that the irradiation position is as shown in the following illustration.
3. Tighten the screws which were loosened in step 1. Be careful not to tighten the screws too much.
[Positioning LED marker focus adjustment]
1. Loosen the knob screw (3), move the positioning LED marker (1) in or out to adjust the focus position, and then tighten
the knob screw (3) to secure the positioning LED marker (1).
[Positioning mirror adjustment]
1. Loosen the knob screw (4), move the positioning mirror (5) to adjust so that the irradiation position of the positioning LED
marker is near the center, and then tighten the knob screw (4) to secure the positioning mirror (5).
Irradiation position
for positioning LED
marker
(3)
