Glue-free width setting method for upper cloth and lower cloth
Set the glue-free width for the upper cloth and lower cloth while referring to "3.2.4.2 Upper and lower cloth glue-free width
setting".
The settings can be made separately for the upper cloth and the lower cloth.
The settings can be made within the range of -50 to +50.
* The setting value is an index value, and does not represent the actual length.

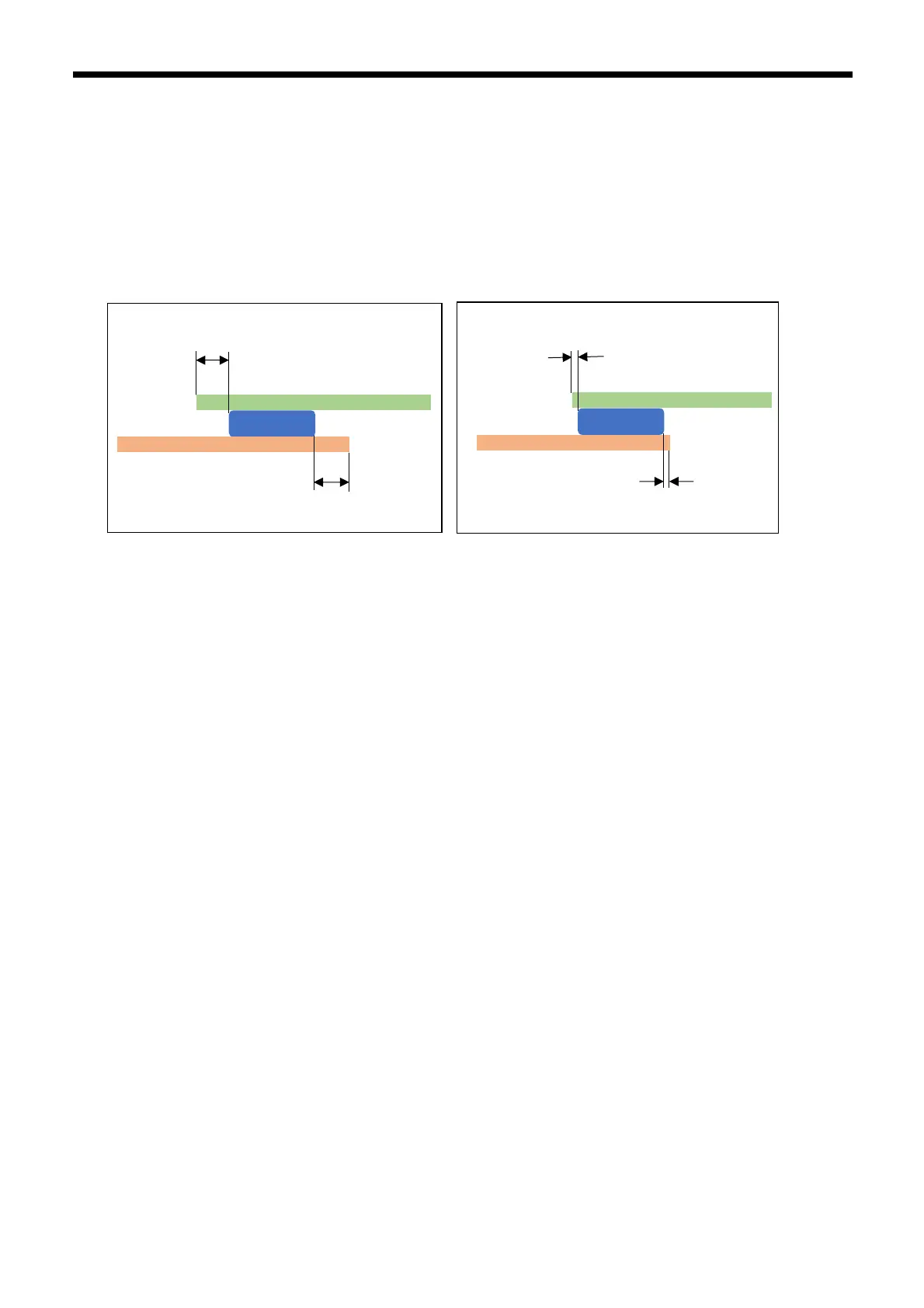

⚫ If you would like to make distances A and B (glue-free widths) as shown in the illustration below larger, then increase the
values; if you would like to make them smaller, decrease the values.
5.7 Setting upper and lower feed speed
The optimum value for the ratio between the feed speeds for the upper roller and the lower roller will vary depending on
conditions such as the type of cloth, the gluing direction, the feed speeds and the gluing thickness.
Therefore, set the upper and lower feed speeds according to the gluing conditions.
Upper and lower feed speed setting method
1. Set lower feed speed.
They can be set within the range of 0.5 m/min to 5 m/min.
Adjust it if required.
2. Set upper feed speed.
Basically the settings should be made as follows.
Cut a piece of cloth which is made from the same material as the gluing pattern into strips (recommended size: 300 mm long x
40 mm wide).
At this time, the direction of the cloth should be the same as the respective patterns for the upper cloth and lower cloth.
Glue this cloth, and check the difference in length between the trailing ends of the upper cloth and lower cloth.
Refer to "3.2.4.1 Upper and lower roller feed speed setting" for panel operations.
