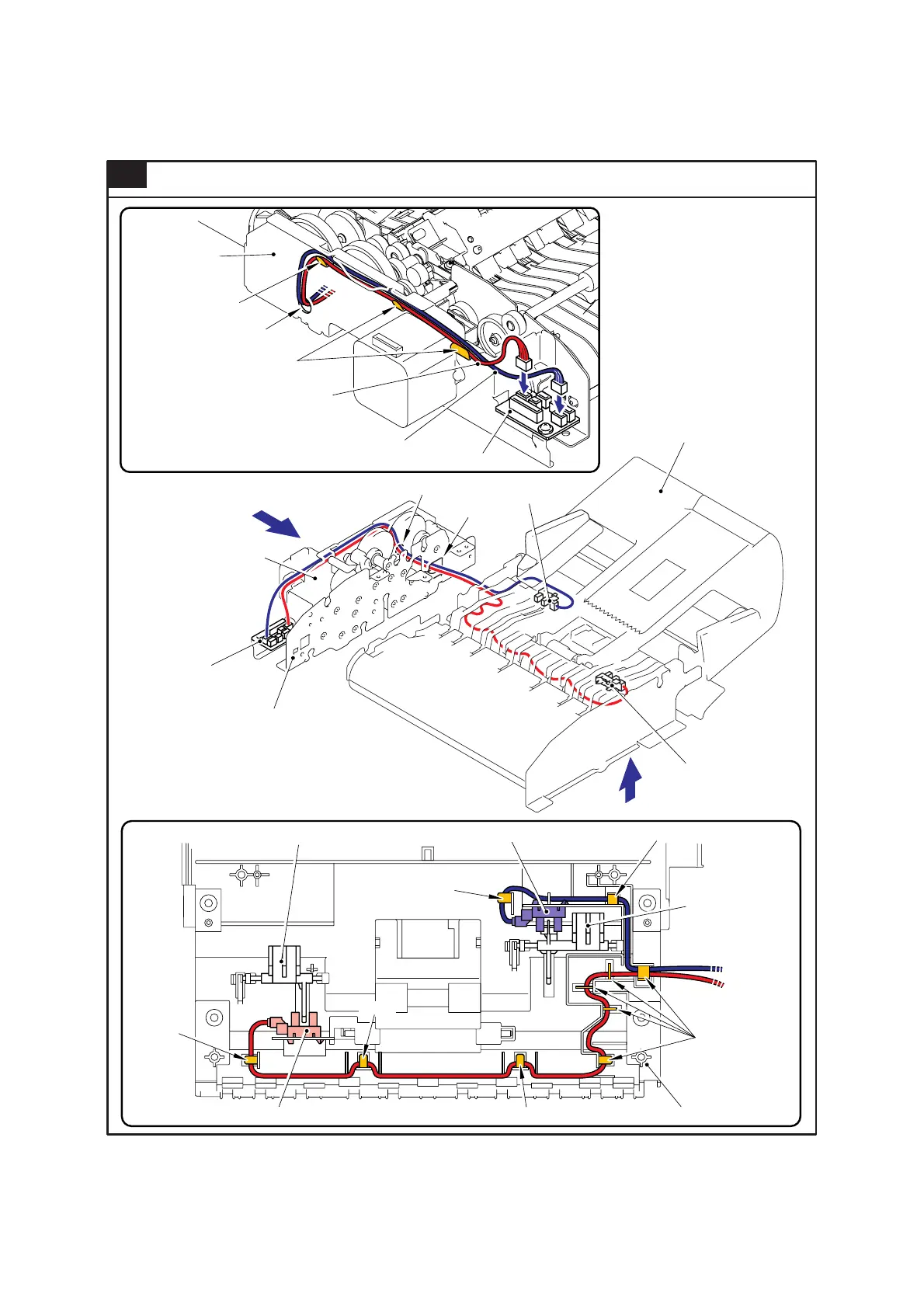

ADF unit ( Document front sensor 1 , Document front sensor 2 )
16
Document front sensor 1
Document front sensor 2
Document front
sensor 1
Document front sensor 2
Document front
sensor 1
Document front
sensor 2
Actuator front 1
Paper feed chute ASSY
Actuator front 2
Hole "C"
Hole "C"
Hole
Hook
Hooks
Hook
Hook
Hook
Hook
Hooks
Hook
Paper feed chute ASSY
ADF relay PCB
Drive frame sub ASSY
Motor frame
ASSY
Motor frame ASSY
ADF relay PCB
< View A >
< View A >
< View B >
< View B >
