6-4 Confidential
6.4.2 Procedures to Replace Periodical Replacement Parts
6.4.2.1 Fuser unit and laser unit
<Uninstalling Procedure>

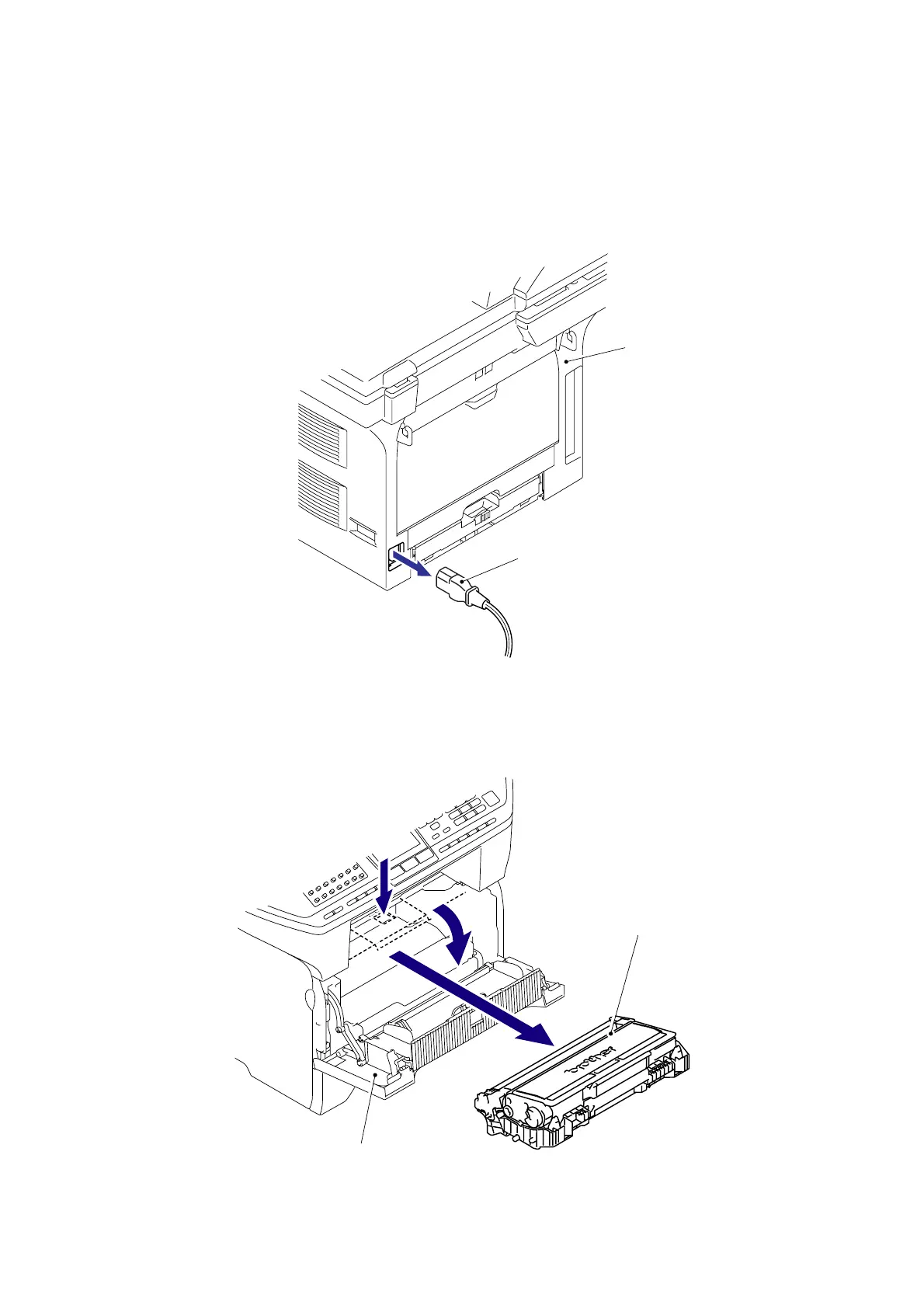

(1) Disconnect the AC cord from the Machine.
Fig. 6-3
(2) Press the cover release lever.
(3) Open the Front cover.
(4) Take out the Drum/toner ASSY.
Fig. 6-4
AC cord
Machine
Drum/toner ASSY
Front cover
2
3
4
<Front side>
<Back side>
To Next Page
