Brother DCP-8065DN Service Manual

Confidential
5-36
5.1.16 ADF Chute ASSY
(1) Disconnect the 7 connectors (for the model supporting the DX tray only) or 3 connectors
(for the model supporting no DX tray only) from the ADF relay PCB.
(2) Disconnect the connector of the ADF motor harness from the ADF motor.
(3) Remove the cup S M3x8 Taptite screw and ADF FG harness.

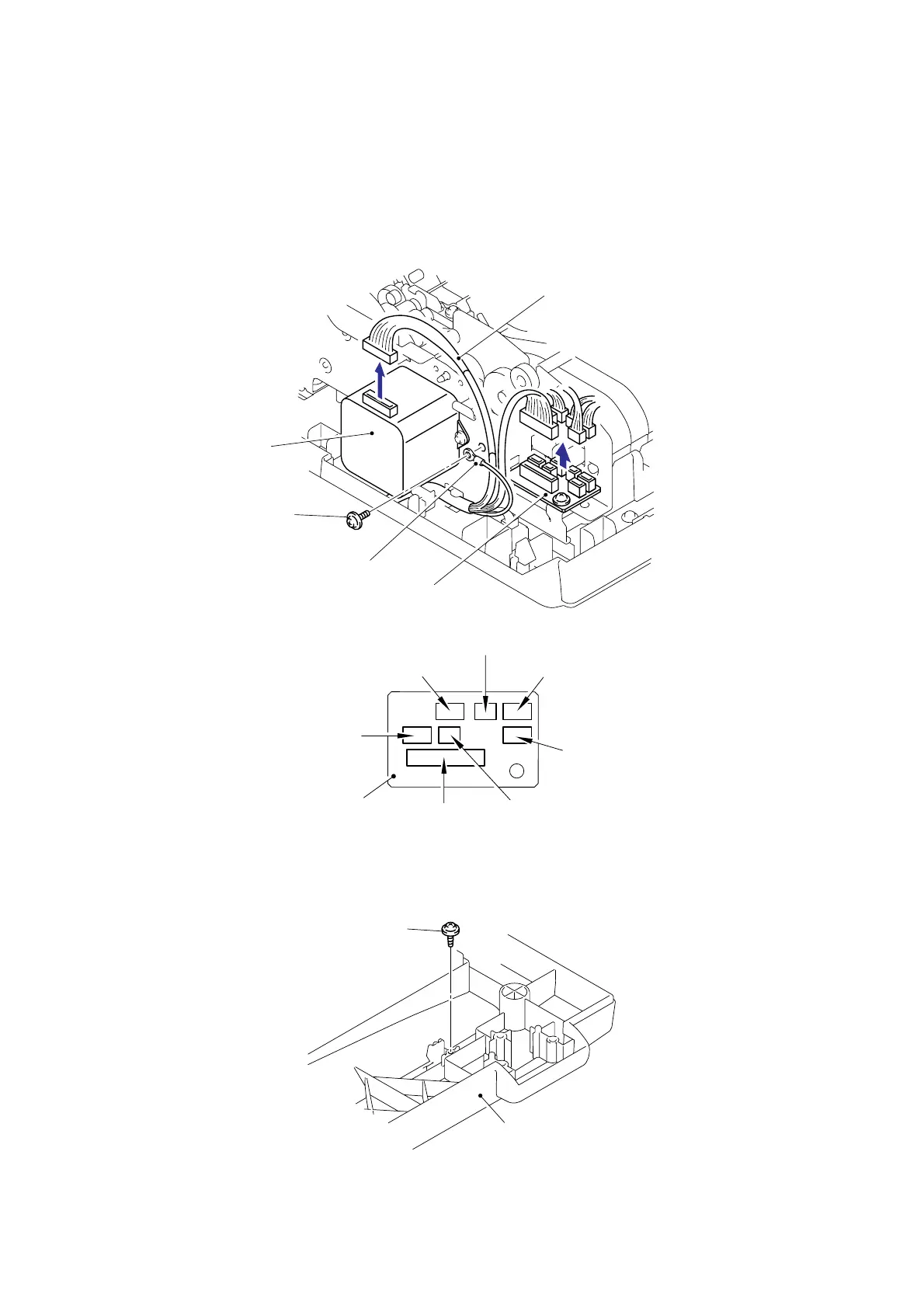

Fig. 5-27
(4) Turn the Document cover upside down and remove the cup B M3x10 Taptite screw.
Fig. 5-28
ADF motor harness
ADF relay PCB
ADF FG harness
Taptite, cup S M3x8
ADF moto
r
1
2
Document rear senso
r
Document front sensor 1
PF solenoid ASSY
(for the models with the DX only)
ADF relay harness
ADF relay PCB
Document front sensor 2
(for the models with the DX only)
Switch back senso
r
(for the models with the DX only)
S/B solenoid ASSY
(for the models with the DX only)
<Back side>
Taptite, cup B M3x10
Document cover LGL sub ASSY

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
