Brother DCP-8065DN - Page 136

Confidential
5-37

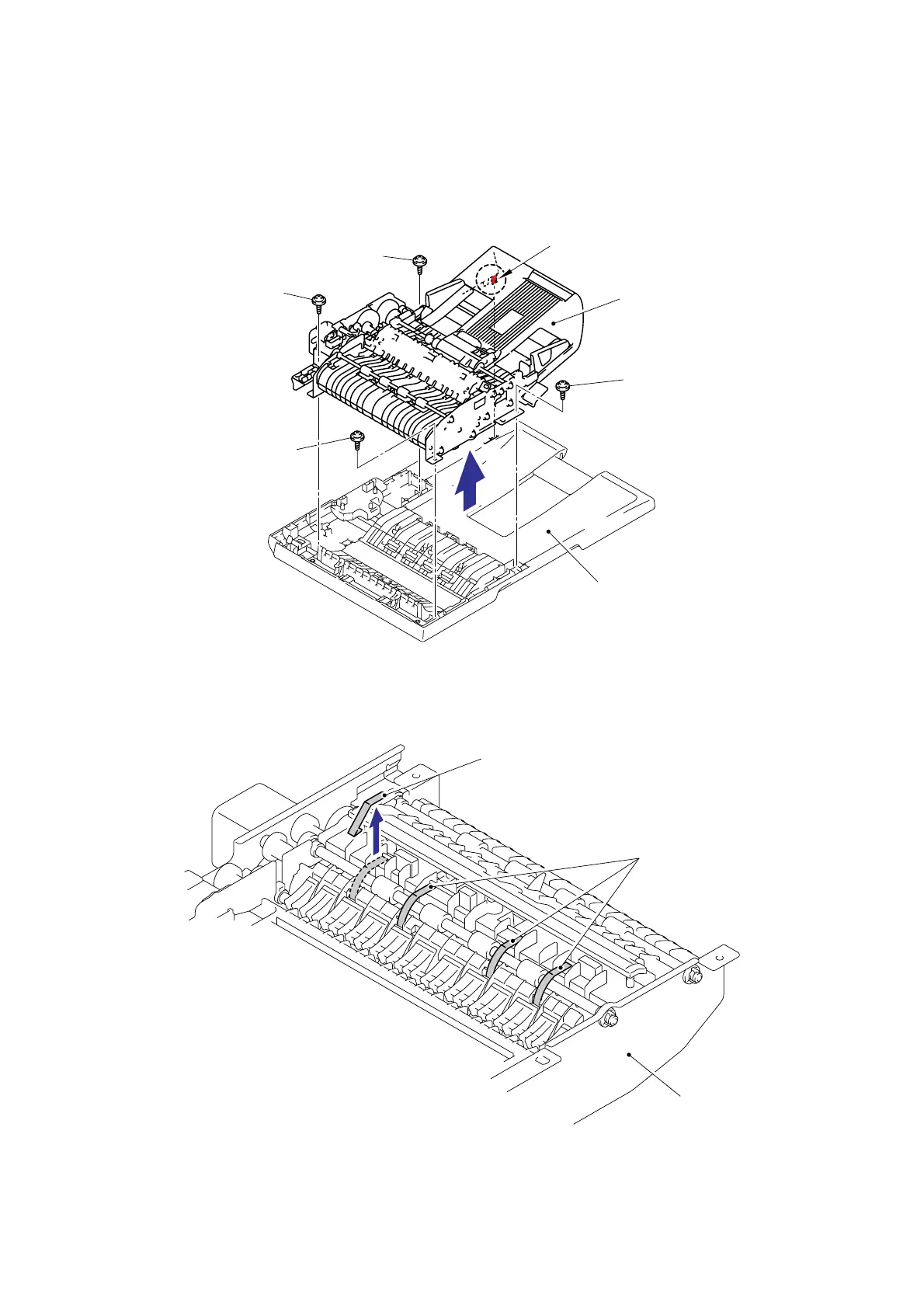

(5) Turn the Document cover the correct way up and remove the four cup B M3x10 Taptite
screws from the ADF chute ASSY.
(6) Release the hook to remove the ADF chute ASSY from the Document cover LGL sub
ASSY.
Fig. 5-29
(7) Turn the ADF chute ASSY upside down and remove the four LF4 films.
Fig. 5-30
Document cover LGL sub ASSY
Taptite, cup B M3x10
Taptite, cup B M3x10
Taptite, cup B M3x10
Taptite, cup B M3x10
ADF chute ASSY
<Front side>
Hoo
k
ADF chute ASSY
LF4 films
LF4 fil
m
