5.1.39 Actuator R/Photo Interrupter
(1) Turn the Actuator R to the direction of the arrow 1a and pull it out to the direction of the
arrow 1b.

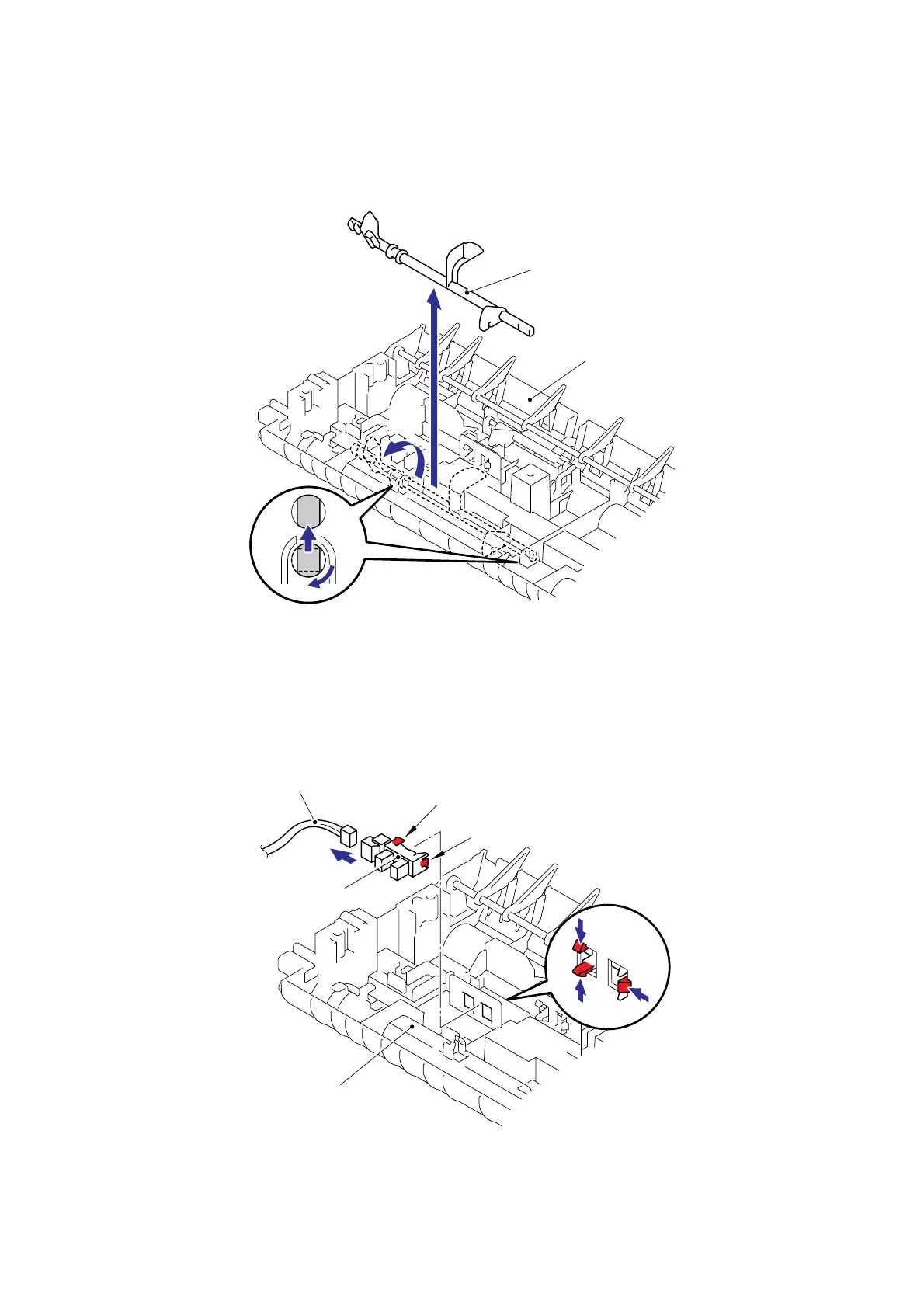

Fig. 5-69
(2) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Lower
main chute ALFB.
(3) Disconnect the Connector from the Photo interrupter.
Fig. 5-70
