Brother DCP-8065DN - Hinge Base R

Confidential
5-32

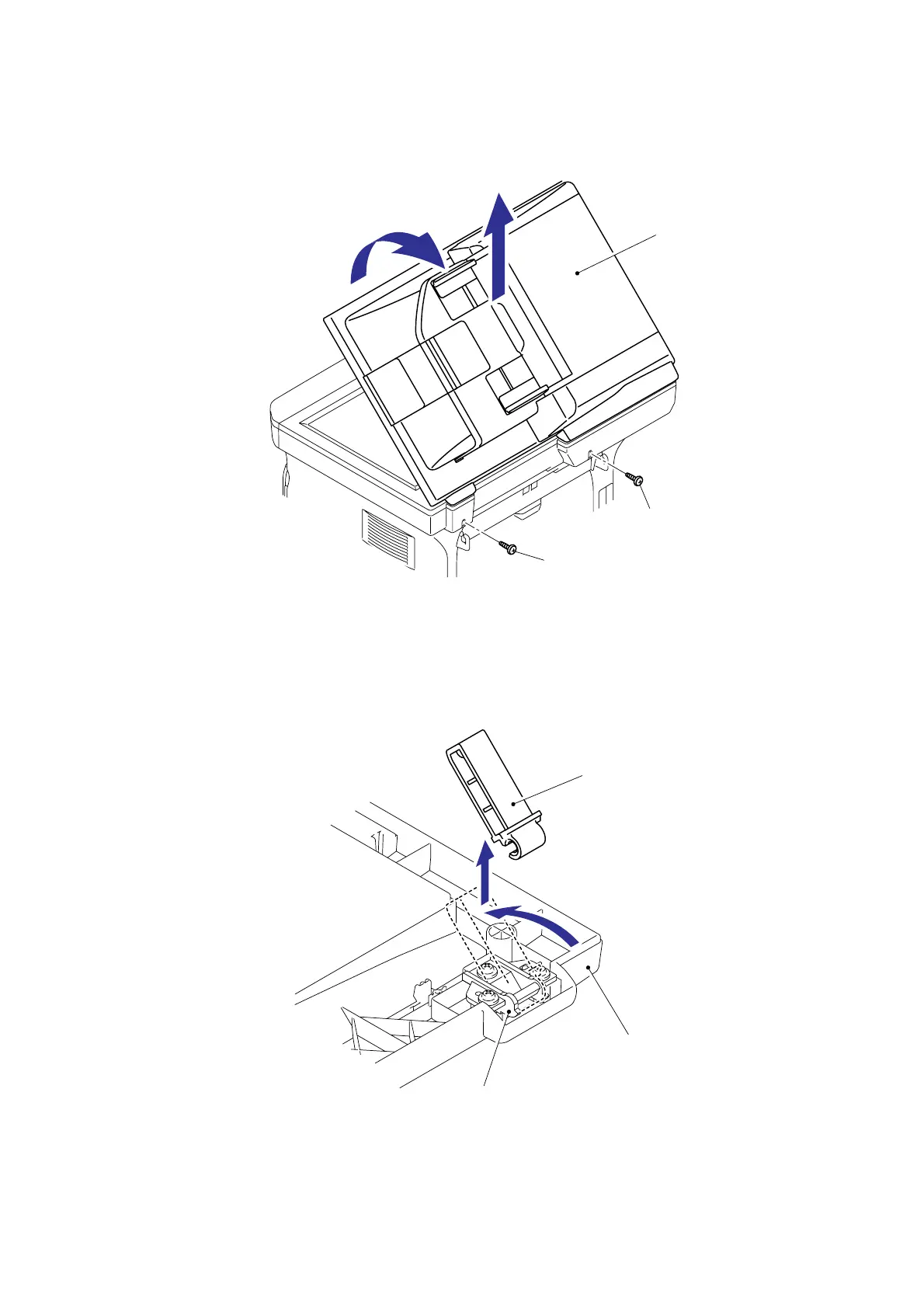

(5) Remove the two bind B M4x12 Taptite screws, and then remove the Document cover.
Fig. 5-20
5.1.10 Hinge Base R
(1) Turn the Document cover upside down. Remove the Hinge base R from the Hinge arm R.
Fig. 5-21
Document cove
r
Taptite,
b
in
d
B M4x12
Taptite,
b
in
d
B M4x12
Hinge base R
Document cove
r
1
2
Hinge arm R
<Back side>
<Bottom side>
