1.2 CONTROL PANEL
MFC-8460N, MFC-8860DN and MFC-8870DW have similar control keys.

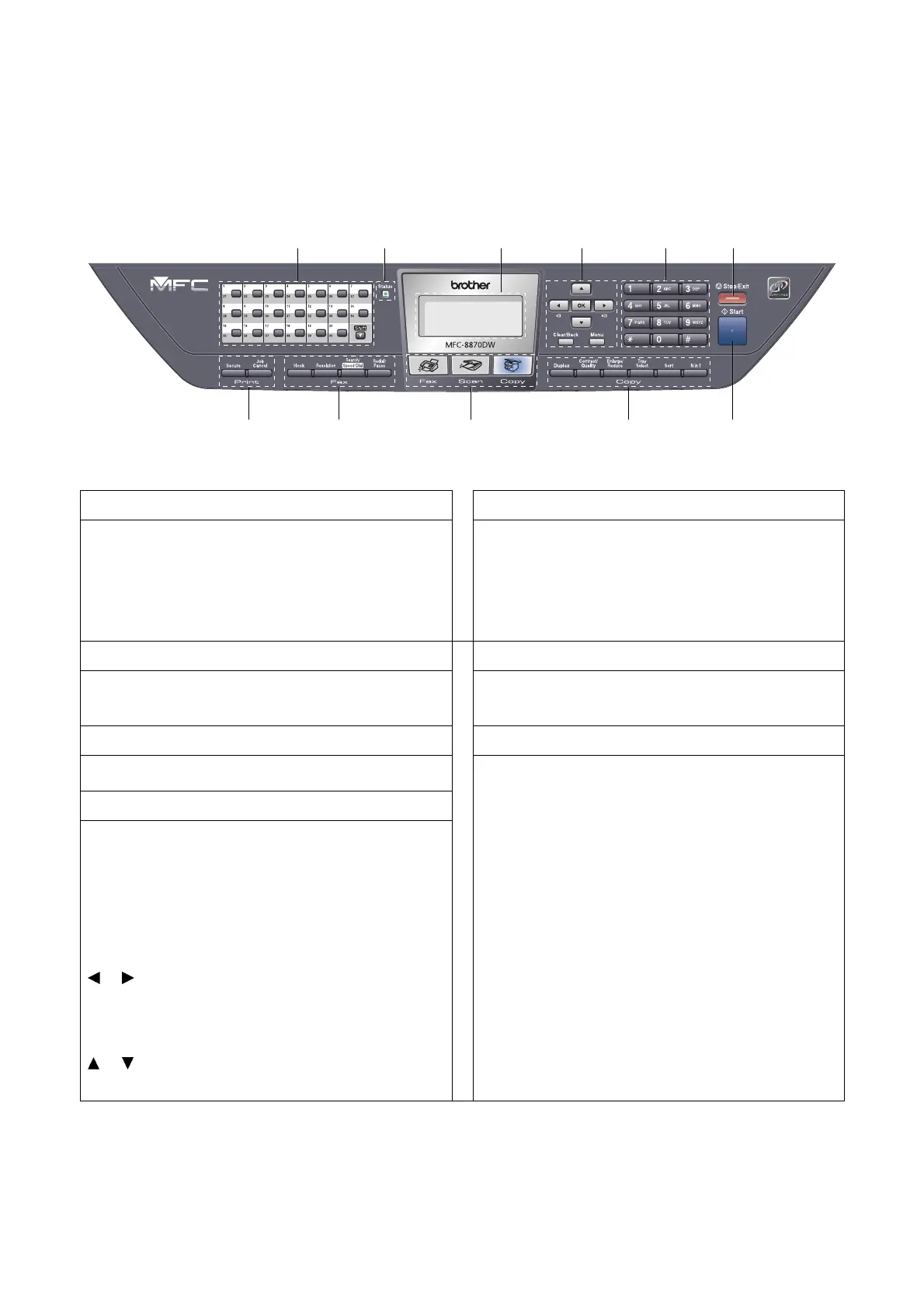

Fig. 1-3
1. One-Touch Keys
5. Dial pad Keys
These 20 keys give you instant access to 40
previously stored numbers.
Shift
Lets you access One-Touch numbers 21 to 40 when
held down.
Used to enter telephone and fax numbers or to
enter text.
The [#] key temporarily switches the dialing mode
from Pulse to Tone during a telephone call.
2. Status LED
6. Stop/Exit Key
The LED will flash and change color depending on
the machine status.
Stops an operation or exits from a menu.
3. LCD 7. Start Key
Displays messages to help you use your machine.
4. Menu Keys
Menu
Accesses the main menu.
Clear/Back
Deletes entered data or lets you exit the menu.
OK
Selects a setting.
or
Scrolls backwards or forwards through menu
selections.
Changes the volume when in fax or standby mode.
or
Scrolls through the menus and options.
Starts sending a fax, making a copy or scanning.
