Brother DCP-8065DN - Panel PCB ASSY

Confidential
5-72
5.1.56 Panel PCB ASSY

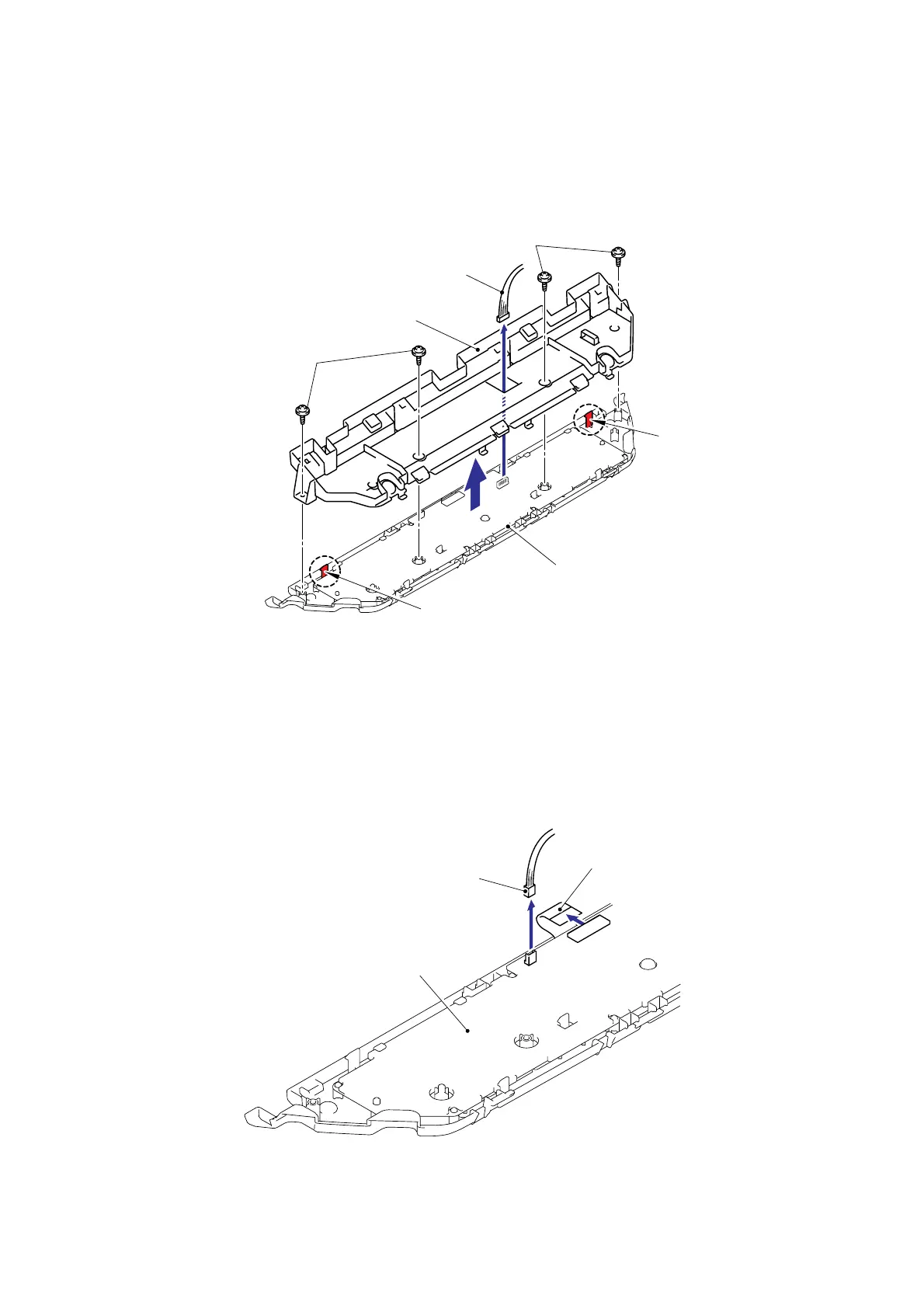

(1) Disconnect the connector of the Panel PCB harness from the Panel unit.
(2) Remove the four cup B M3x10 Taptite screws, release the two Hooks and remove the ALFB
panel.
Fig. 5-95
(3) Disconnect the connector of the Backlight module harness and LCD cable from the Panel
PCB ASSY.
NOTE:
- After disconnecting flat cable(s), check that each cable is not damaged at its end or short-
circuited.
- When connecting flat cable(s), do not insert them at an angle. After insertion, check that
the cables are not at an angle.
Fig. 5-96
Taptite, cup B M3x10
Taptite, cup B M3x10
ALFB panel
Panel PCB harness
Panel unit
LCD cable
Panel PCB ASSY
Backlight module harness
1
2
Hoo
k
Hoo
k
