5.1.82 Filter

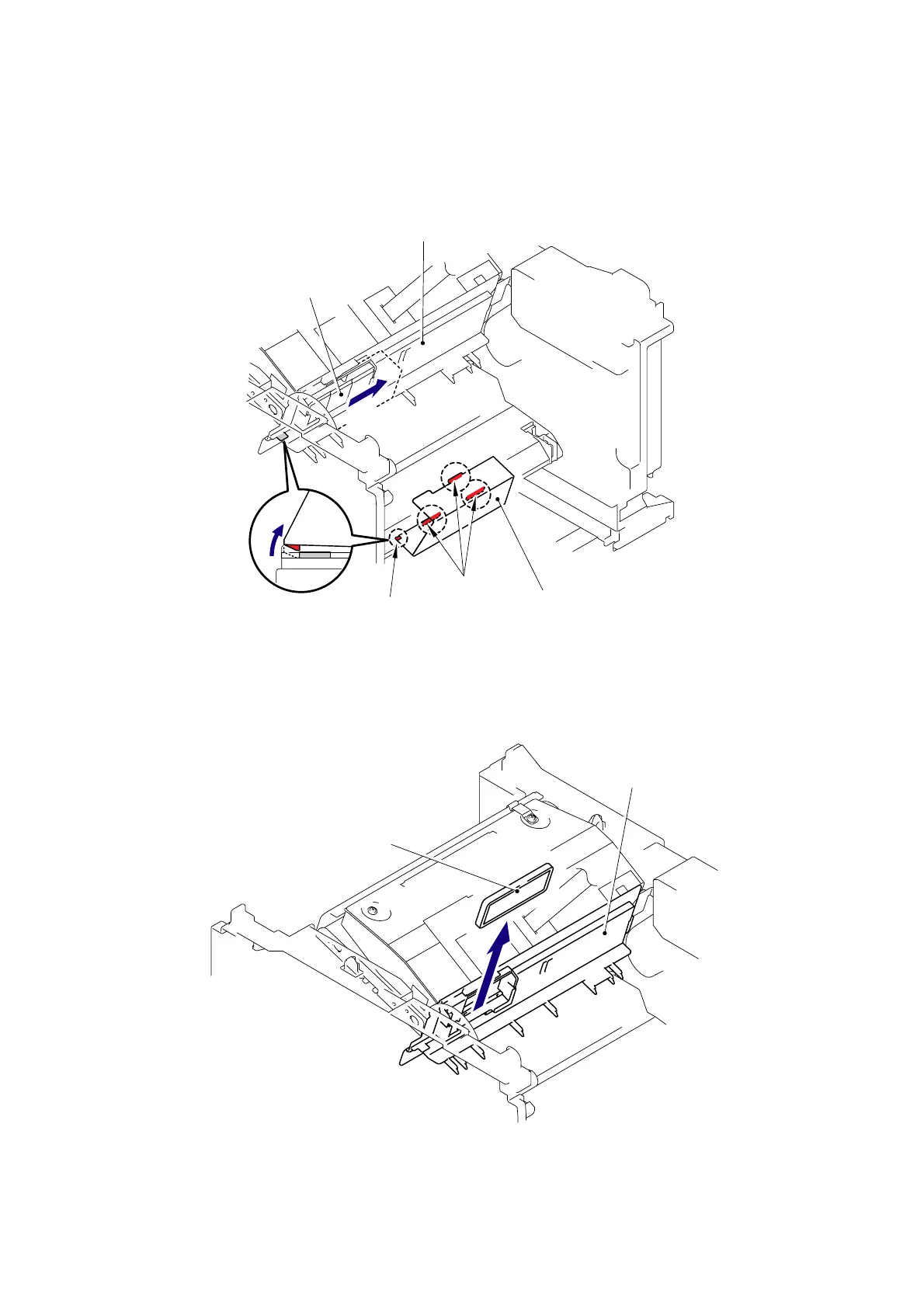

(1) Slide the Sub duct to the direction of the arrow 1b while pressing the three Hooks and
remove the Sub duct from the Air duct.
Fig. 5-154
(2) Remove the Filter from the Air duct.
NOTE: The filter is dirt. Be careful when disassembling or assembling it.
Fig. 5-155
Air duct
Filte
r
Sub duct
Hooks
1a
1b
Air duct
Filte
r
<Back side>
Hoo
k
