5.1.97 Wireless PCB (PCB T60H929.00 ASSY 02) (For the model with the Wireless only)
(1) Disconnect the connector from the Wireless PCB harness.
(2) Remove the Wireless PCB (PCB T60H929.00 ASSY 02) and Wireless PCB holder from the
Frame R.

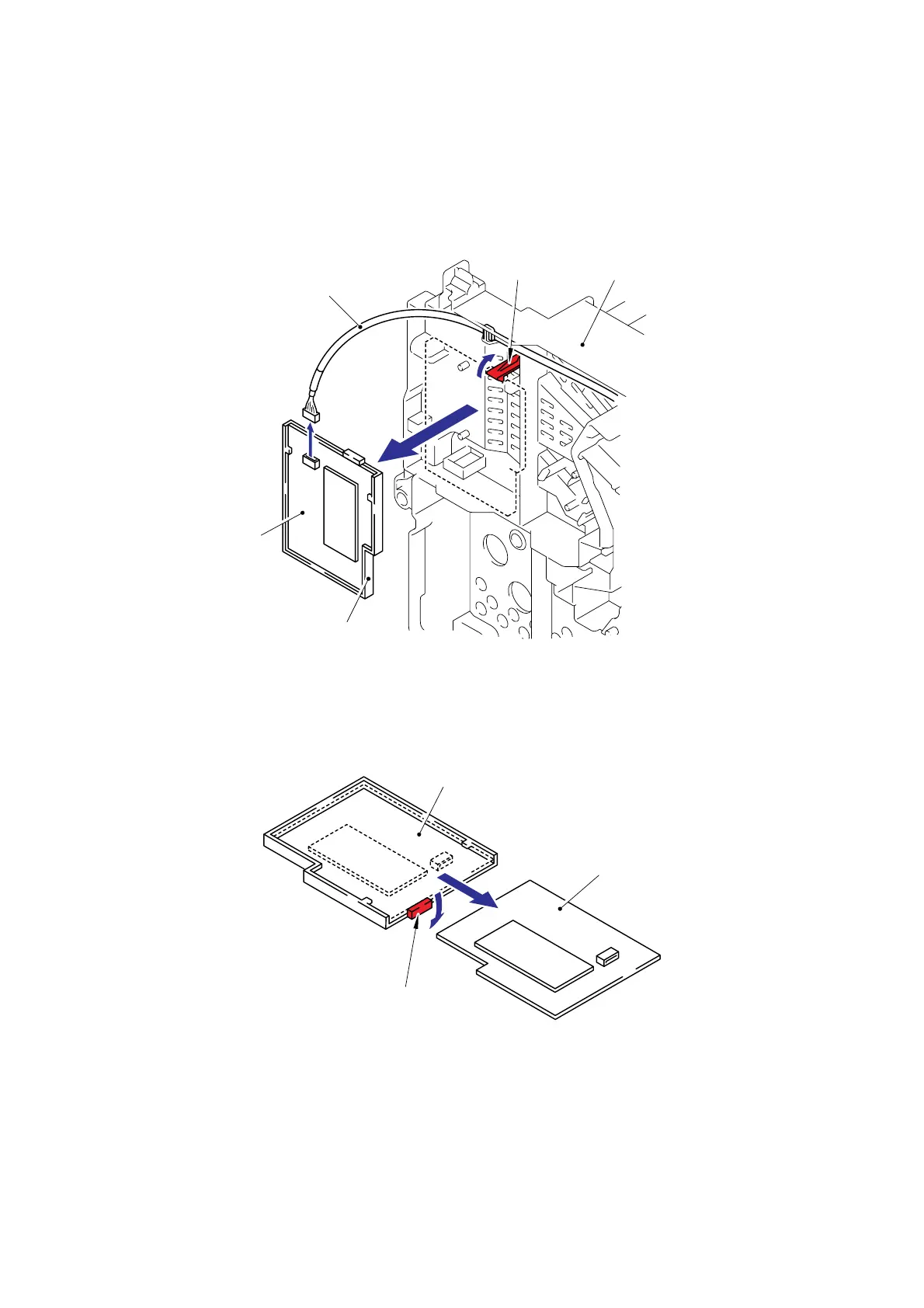

Fig. 5-196
(3) Remove the Wireless PCB (PCB T60H929.00 ASSY 02) from the Wireless PCB holder.
Fig. 5-197
Frame R
Hoo
k
Wireless PCB harness
Wireless PCB
(PCB T60H929.00 ASSY 02)
Wireless PCB holde
r
Hoo
k
Wireless PCB
(PCB T60H929.00 ASSY 02)
Wireless PCB holde
r
