Brother DCP-8065DN - Page 222

Confidential
5-123

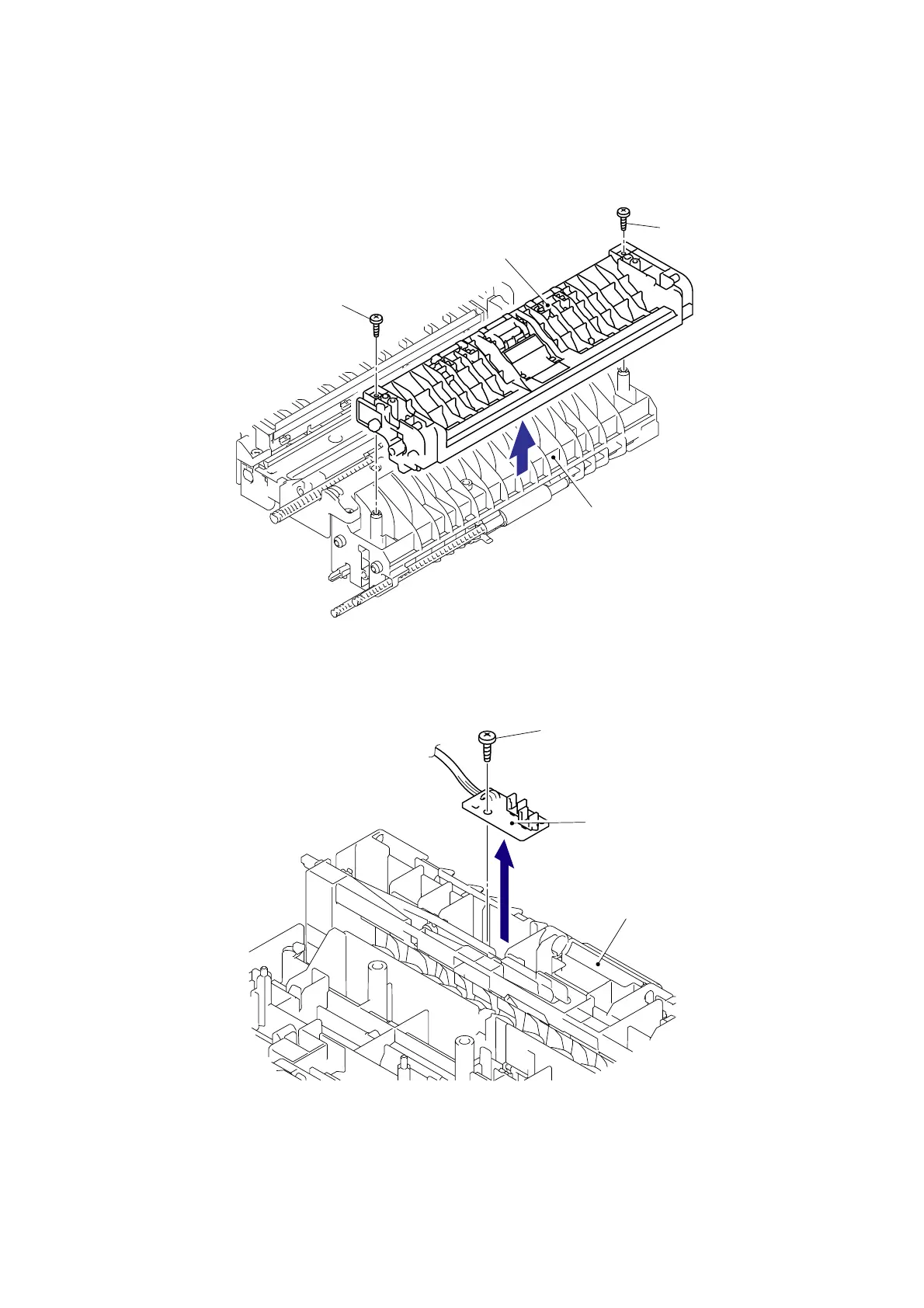

5.1.96 PE EG Sensor ASSY
(1) Remove the two bind B M3x8 Taptite screws, and then remove the MP frame.
Fig. 5-194
(2) Remove the bind B M3x8 Taptite screw, and then remove the PE EG sensor ASSY.
Fig. 5-195
Taptite, bind B M3x8
Taptite, bind B M3x8
MP frame
Paper feed frame
Paper feed frame
PE EG sensor ASSY
Taptite, bind B M3x8
