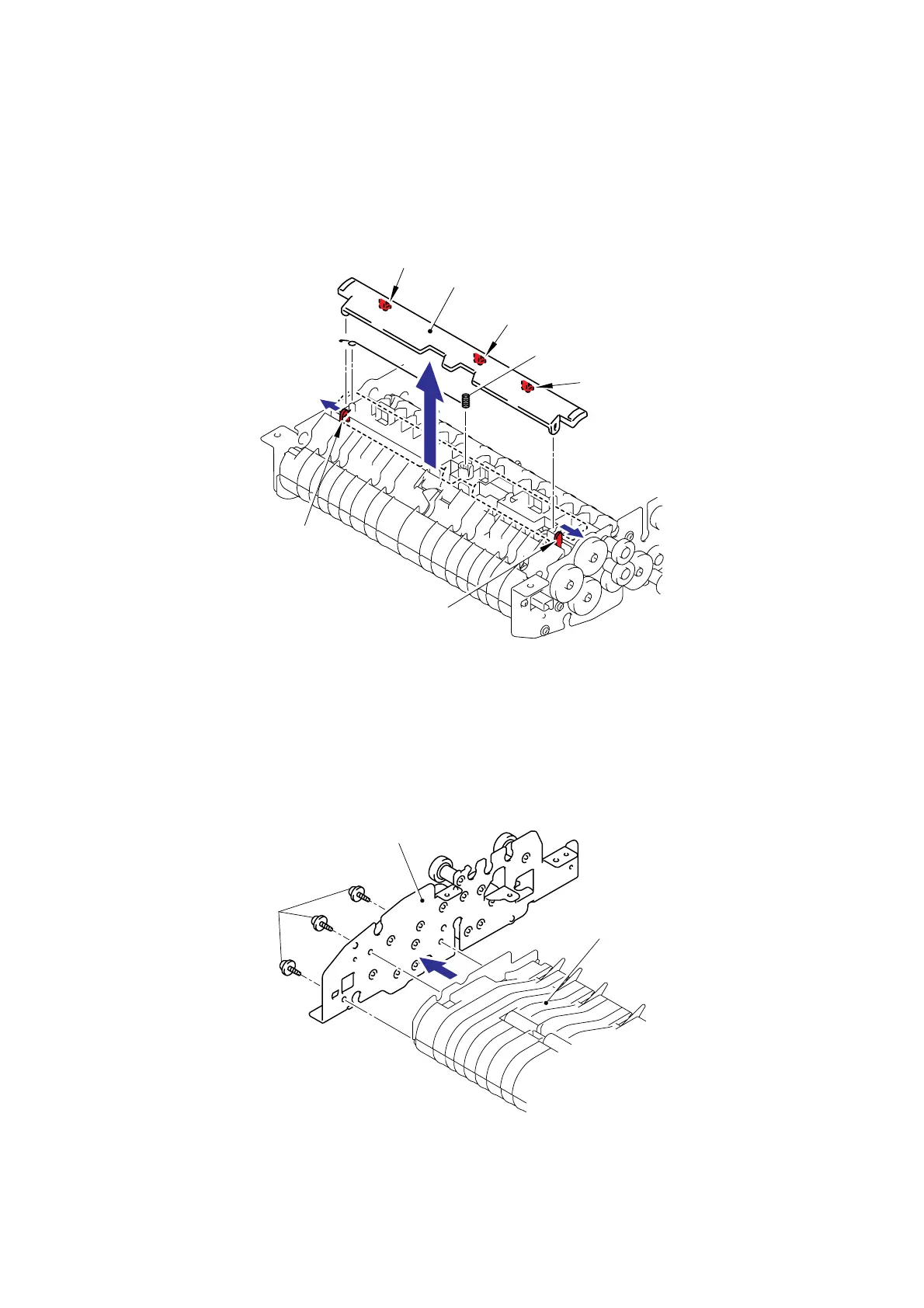

5.1.37 Document Hold/Document Hold Spring
(1) Push the Hooks to the direction of the arrows as shown in the figure below to remove the
Document hold.
(2) Remove the Document hold spring gently to prevent it from jumping.
Fig. 5-65
5.1.38 Upper Main Chute ASSY/Lower Main Chute ASSY
(1) Turn the ADF chute ASSY upside down. Remove the three cup B M3x10 Taptite screws.
(2) Remove the Drive frame sub ASSY DX.
Fig. 5-66
Document hold spring
Document hol
d
Main chute ASSY
Drive frame sub ASSY DX
Taptite, cup B M3x10
Hoo
k
Hoo
k
Hoo
k
Hoo
k
<Back side>
<Back side>
Hoo
k
