5.1.7 Outer Chute ASSY

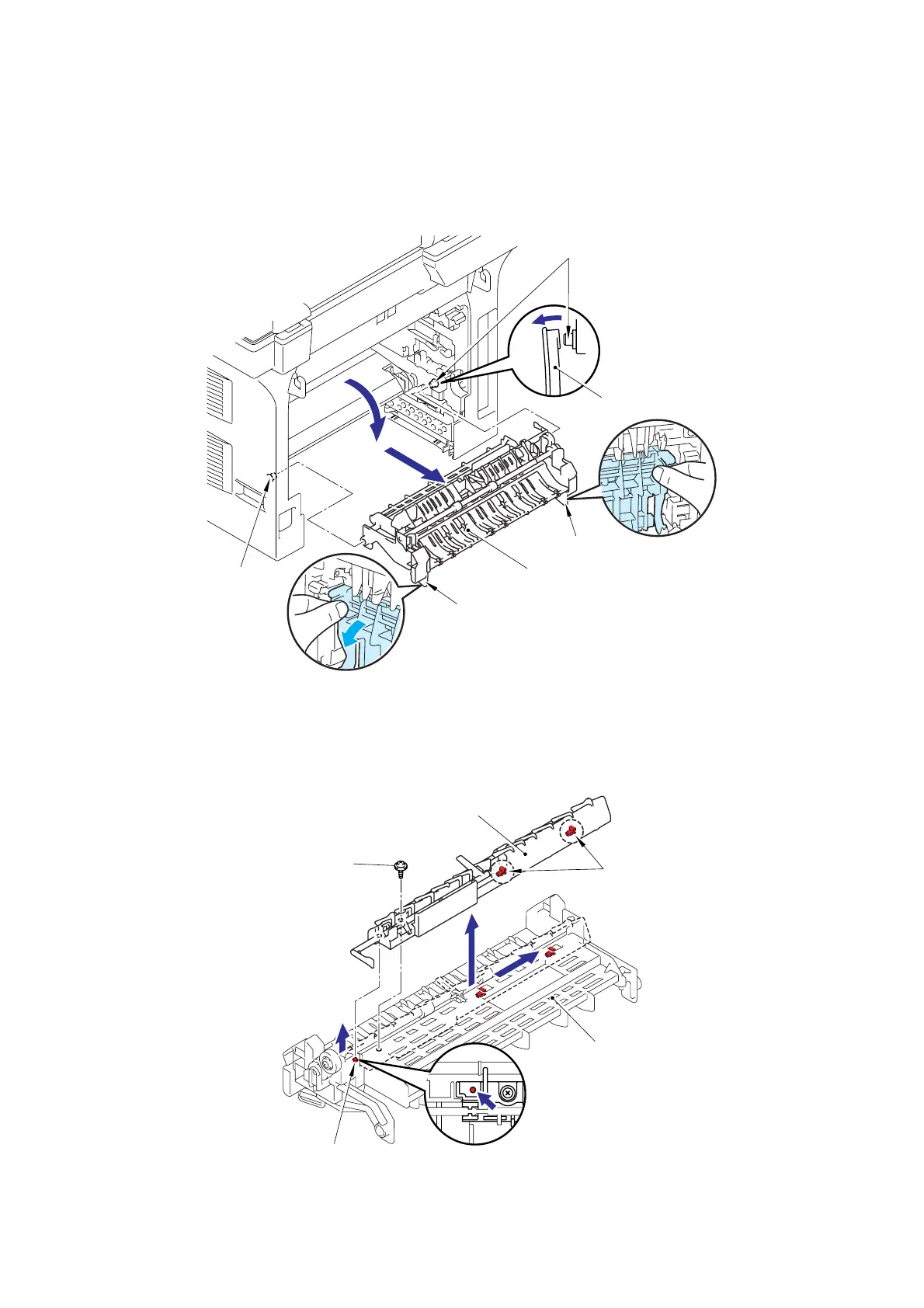

(1) Hold the Knobs on the Outer chute ASSY and pull down the Outer chute ASSY to your side.
(2) Remove the Arms of the Outer chute ASSY from the Pins on the machine body.
(3) Remove the Outer chute ASSY.
Fig. 5-12
(4) Remove the bind B M3x8 Taptite screw.
(5) Lift up the side where the eject actuator is assembled of the Sub outer chute slightly (to the
direction of the arrow 5a), and move the Sub outer chute to the direction of the arrow 5b.
(6) Lift up the Sub outer chute to remove.
Fig. 5-13
Pin
Pin
Outer chute ASSY
2
3
Pin
1
<Back side>
Ar
m
K
nob
K
nob
Sub outer chute
Hooks
Outer chute ASSY
Taptite, bind B M3x8
6
5b
5a
1
1
