Brother DCP-8065DN

Confidential
5-88

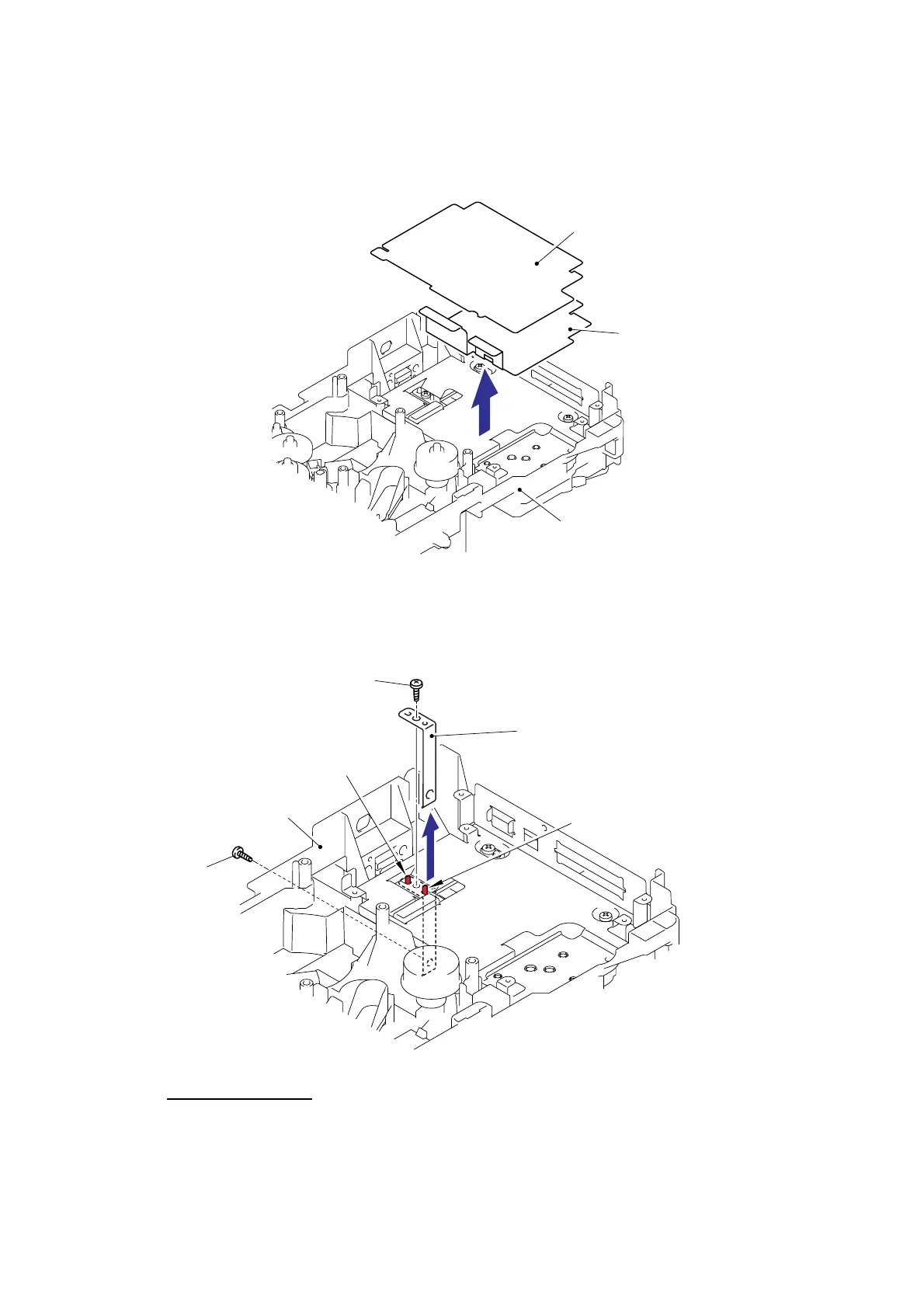

5.1.67 Main Shield Plate ASSY
(1) Remove the two Insulation sheets.
Fig. 5-125
(2) Remove the bind B M4x12 Taptite screw.
(3) Remove the bind B M4x12 Taptite screw, and then remove the Plate.
Fig. 5-126

Assembling Notes
- When assembling the Plate, ensure to put the Plate into the base plate LV.
- When assembling the Plate, secure the screw at the Frame L side first, then the screw at the
base plate LV side.
Insulation sheet
Frame L
Frame L
Pin
Pin
Plate
Taptite, bind B M4x12
Taptite, bind B M4x12
Insulation sheet
