Brother DCP-8065DN - ADF Cover ASSY; ADF Side Cover F

Confidential
5-34

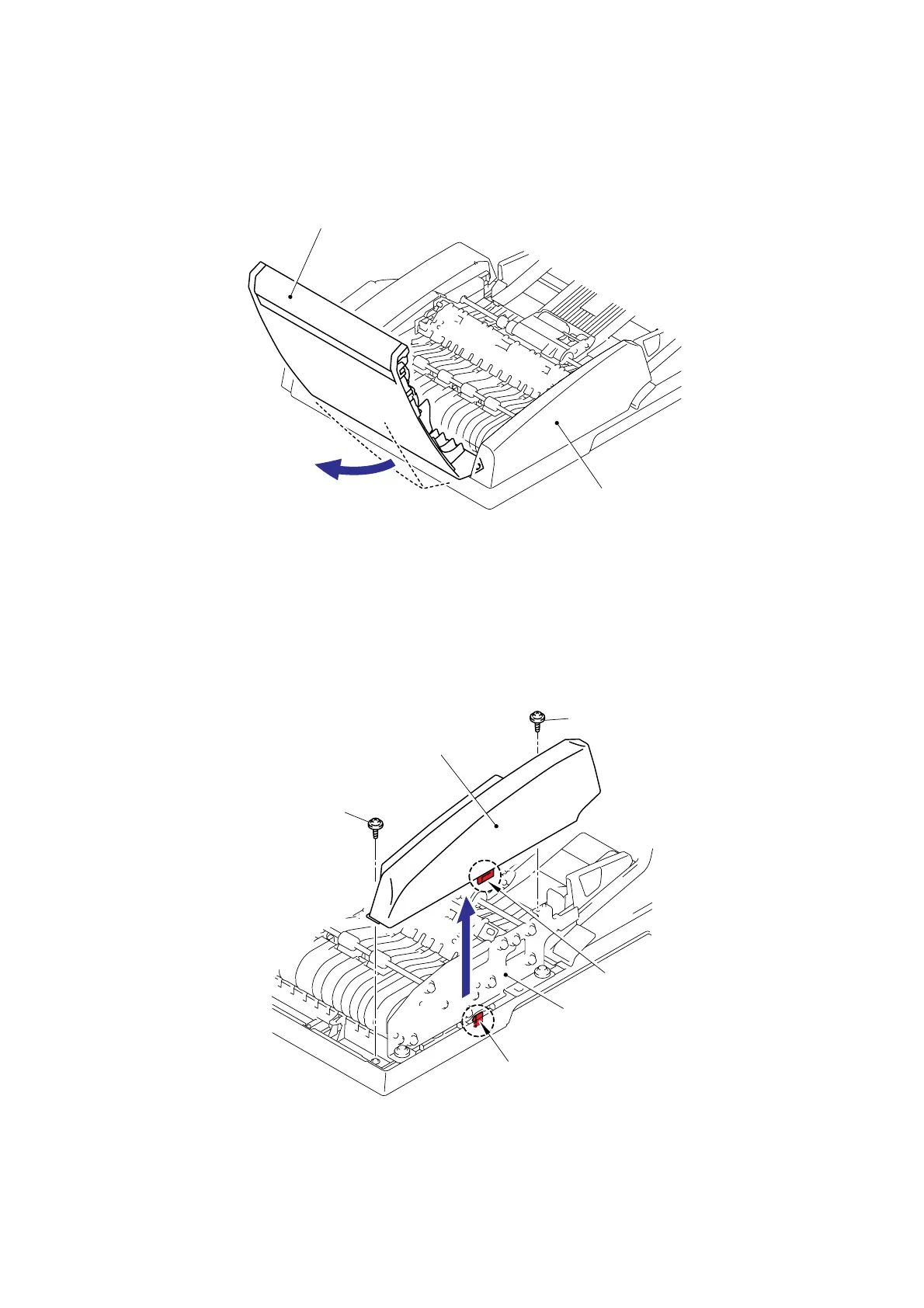

5.1.13 ADF Cover ASSY
(1) Turn the Document cover upside down. Remove the ADF cover ASSY from the ADF unit.
Fig. 5-24
5.1.14 ADF Side Cover F
(1) Push the Hook from underneath the ADF unit to release the Latch, and remove the cup S
M3x8 Taptite screw and cup B M3x10 Taptite screw from the ADF Side cover F.
(2) Remove the ADF side cover F from the ADF unit.
Fig. 5-25
ADF unit
ADF cover ASSY
ADF unit
Latch
ADF side cover F
Taptite, cup S M3x8
Taptite, cup B M3x10
<Front side>
Hoo
k
