5.1.20 PF Roller Holder ASSY
(1) Turn the ADF chute ASSY upside down. Release the Hooks of the Conductive bushing A
to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the PF roller holder ASSY
from the ADF chute ASSY.

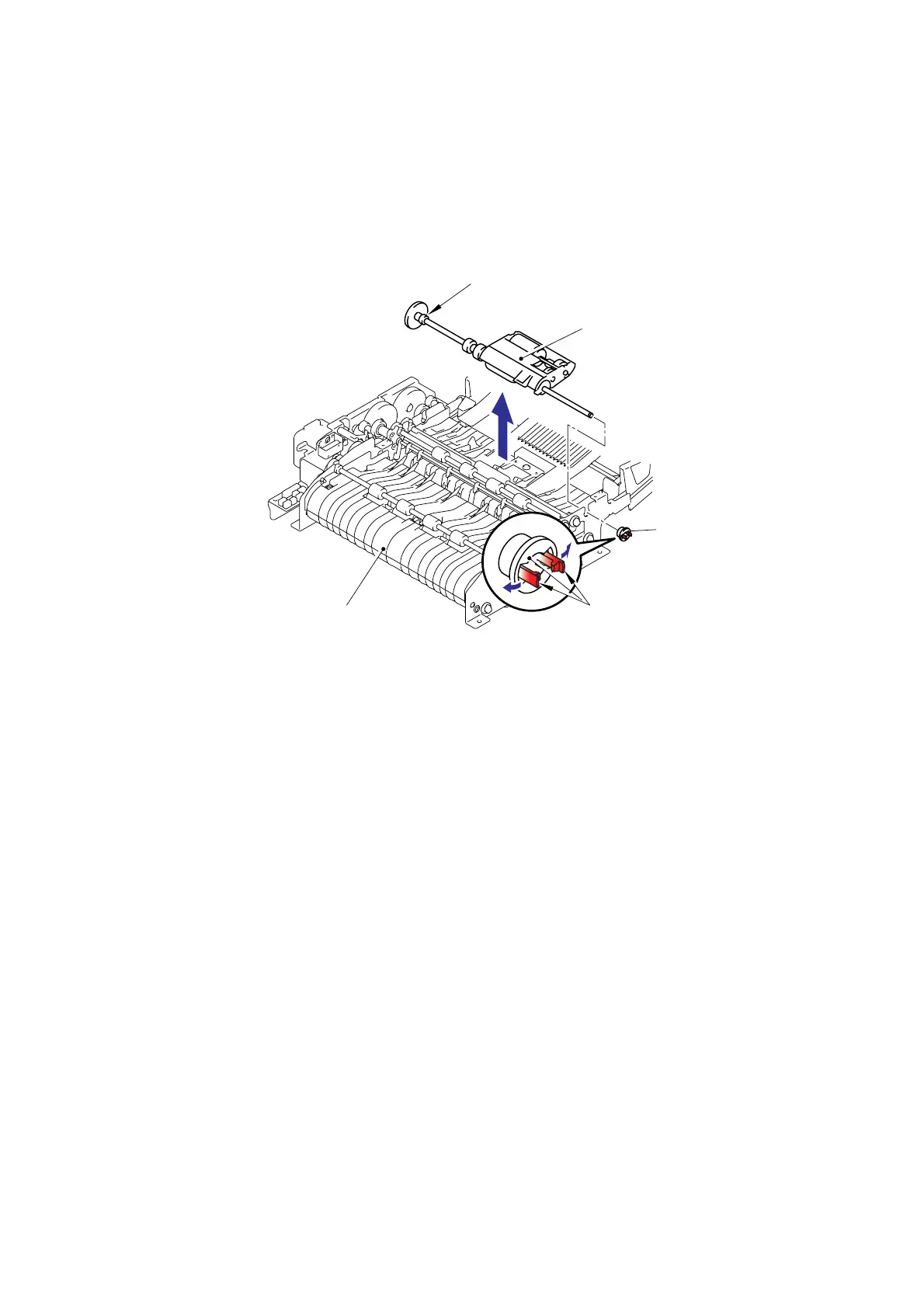

Fig. 5-35
PF roller holder ASSY
ADF chute ASSY
Conductive bushing A
Hooks
<Front side>
Bushing
