Brother DCP-8065DN - AC Cord; Drum;Toner ASSY

Confidential
5-23

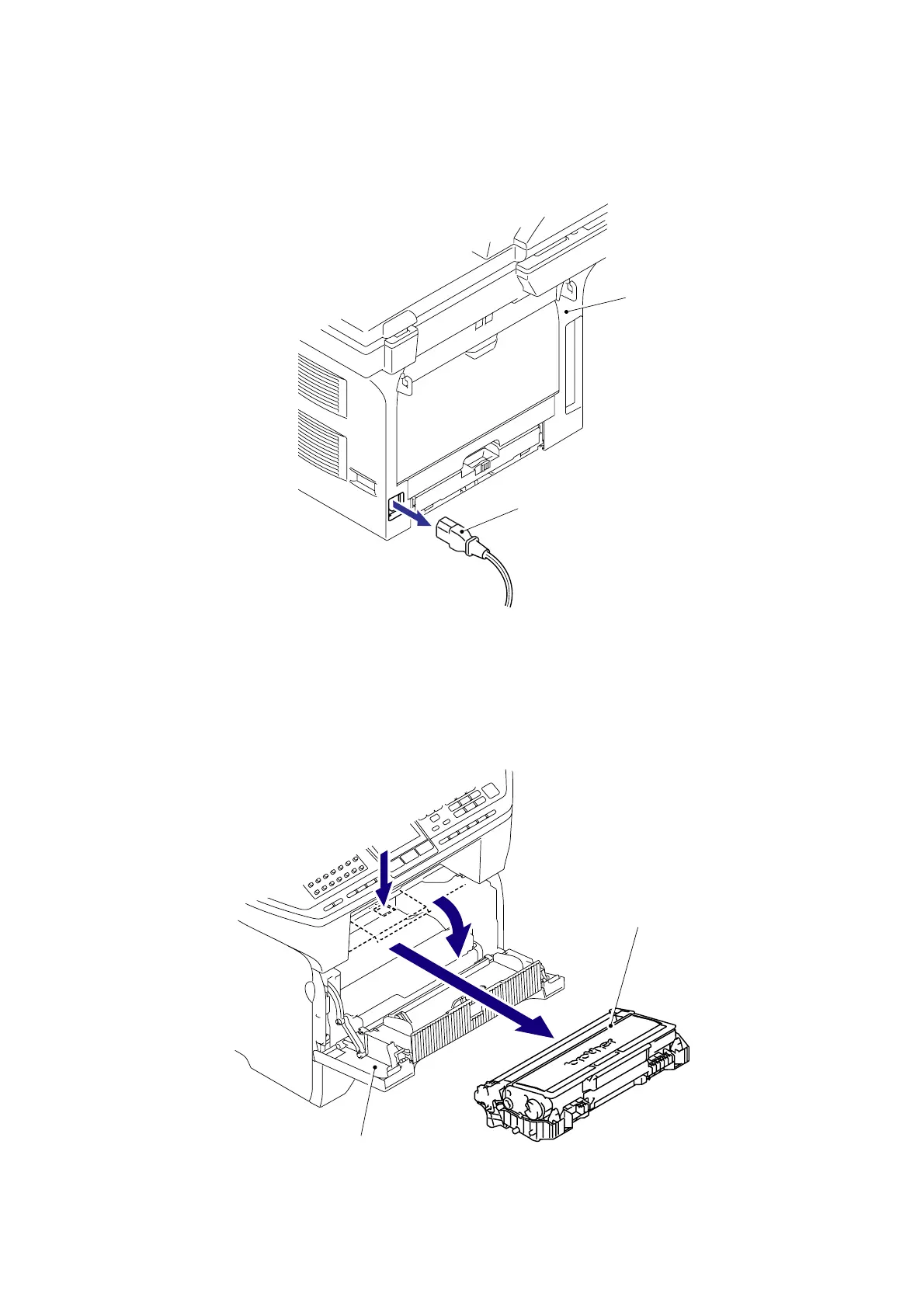

5.1.1 AC Cord
(1) Disconnect the AC cord from the Machine.
Fig. 5-1
5.1.2 Drum/Toner ASSY
(1) Press the cover release lever.
(2) Open the Front cover.
(3) Take out the Drum/toner ASSY.
Fig. 5-2
AC cor
d
Drum/toner ASSY
Machine
Front cove
r
1
2
3
<Back side>
<Front side>
