(5) Remove the cup B M4x16 Taptite screw, and then remove Fuser unit.

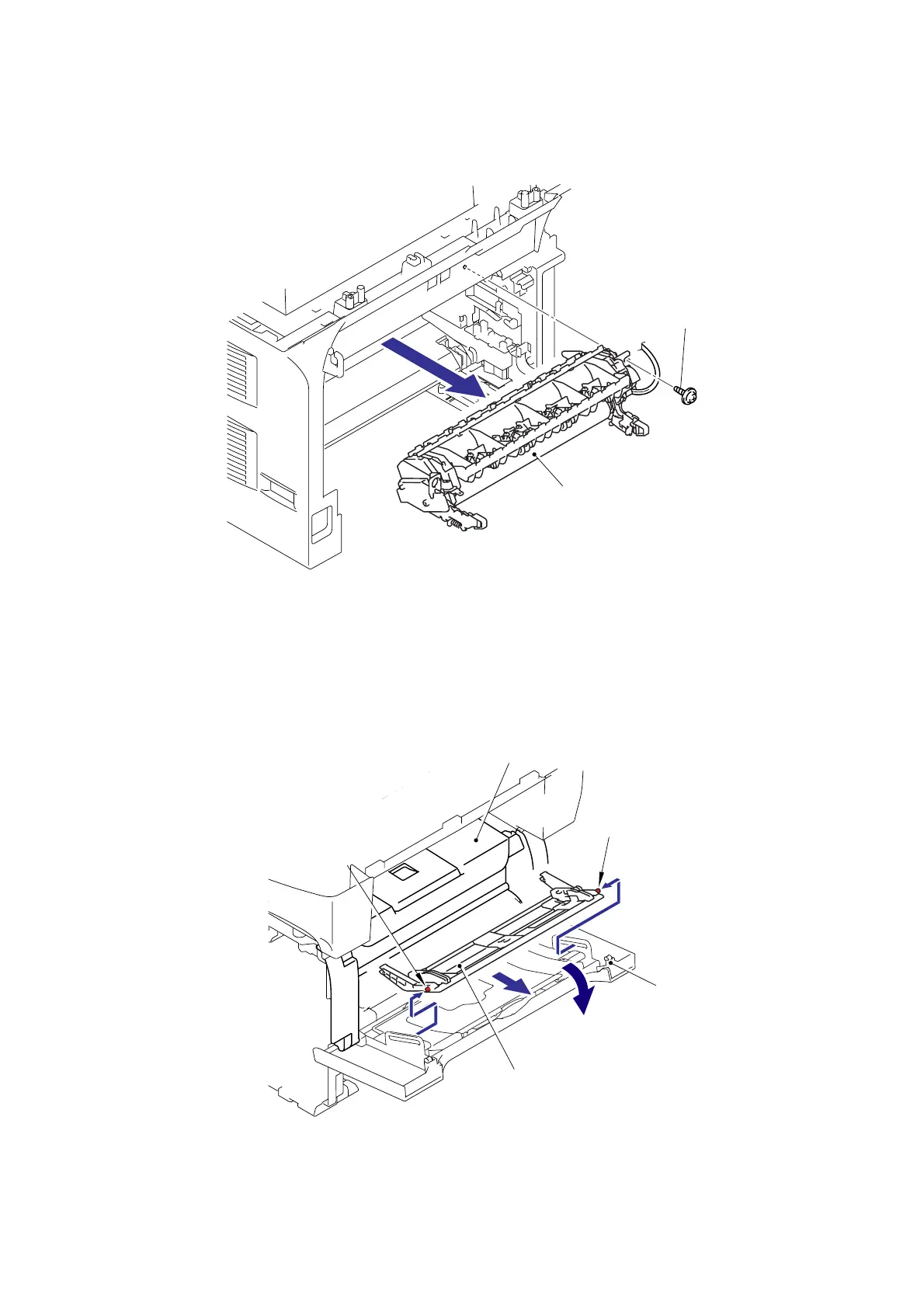

Fig. 5-113
5.1.63 Tray MP ASSY
(1) Open the MP tray cover ASSY.
(2) Release the Boss of the Tray MP ASSY from the MP tray cover ASSY.
(3) Remove the Tray MP ASSY.
Fig. 5-114
Taptite, cup B M4x16
Fuser unit
Tray MP ASSY
Process cover ASSY
MP tray cover ASSY
2
1
3
Boss
Boss
2
