Brother DCP-8065DN

Confidential
5-109

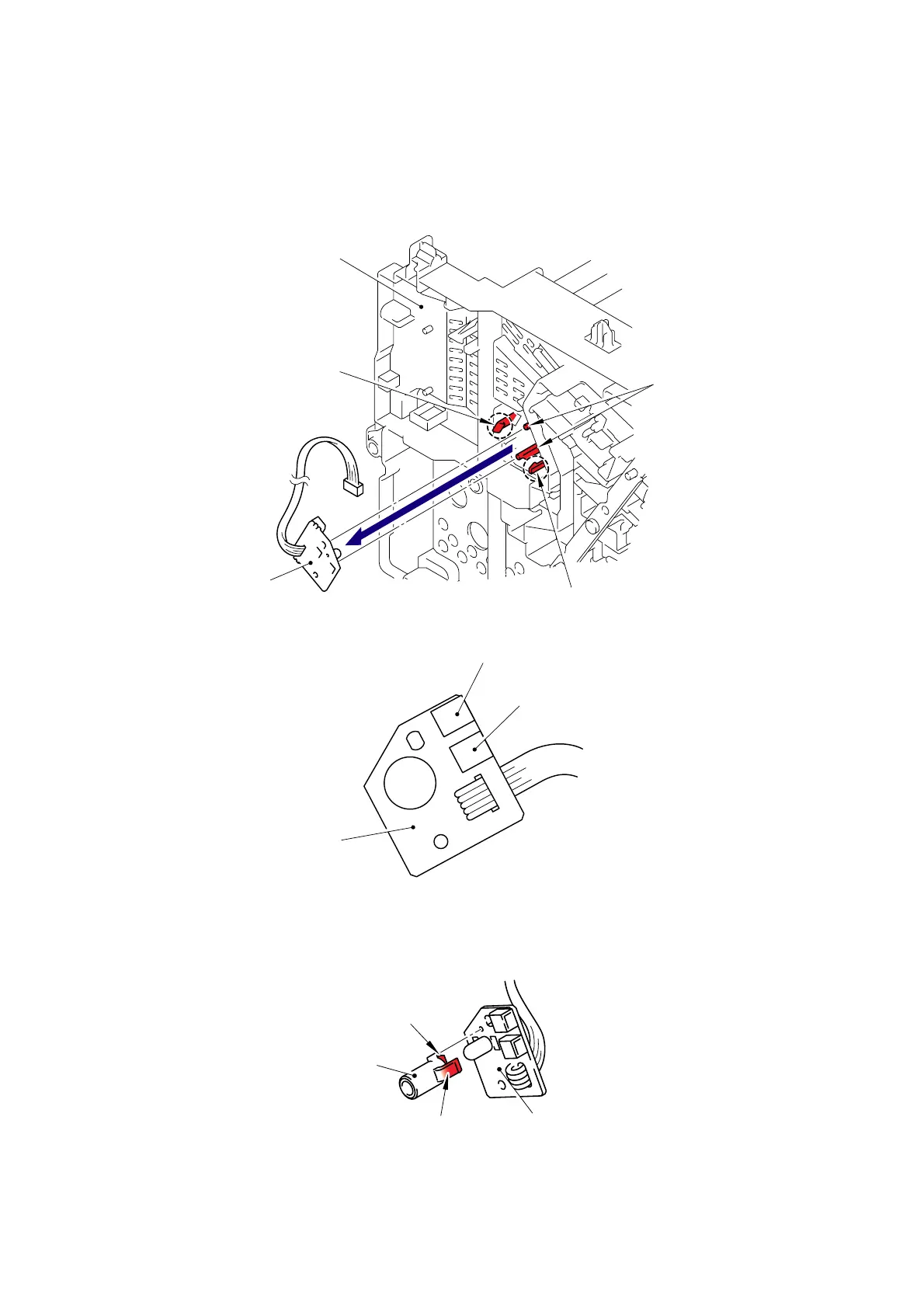

5.1.86 Toner LED PCB Unit ASSY
(1) Release the two Hooks to remove the Toner LED PCB unit ASSY from the Frame R.
(2) Disconnect the two connectors from the Toner LED PCB.
Fig. 5-167
(3) Release the two Hooks to remove the LED holder from the Toner LED PCB.
Fig. 5-168
Pins
Hoo
k
Hoo
k
Frame R
Toner LED PCB unit ASSY
Fan motor 60 unit LV connecto
r
Fan motor 60 unit connecto
r
Toner LED PCB
Toner LED PCB
Hoo
k
LED holde
r
<Right side>
Hoo
k
