Brother DCP-8065DN - SB Roller ASSY (for the Models with the DX Only)

Confidential
5-42

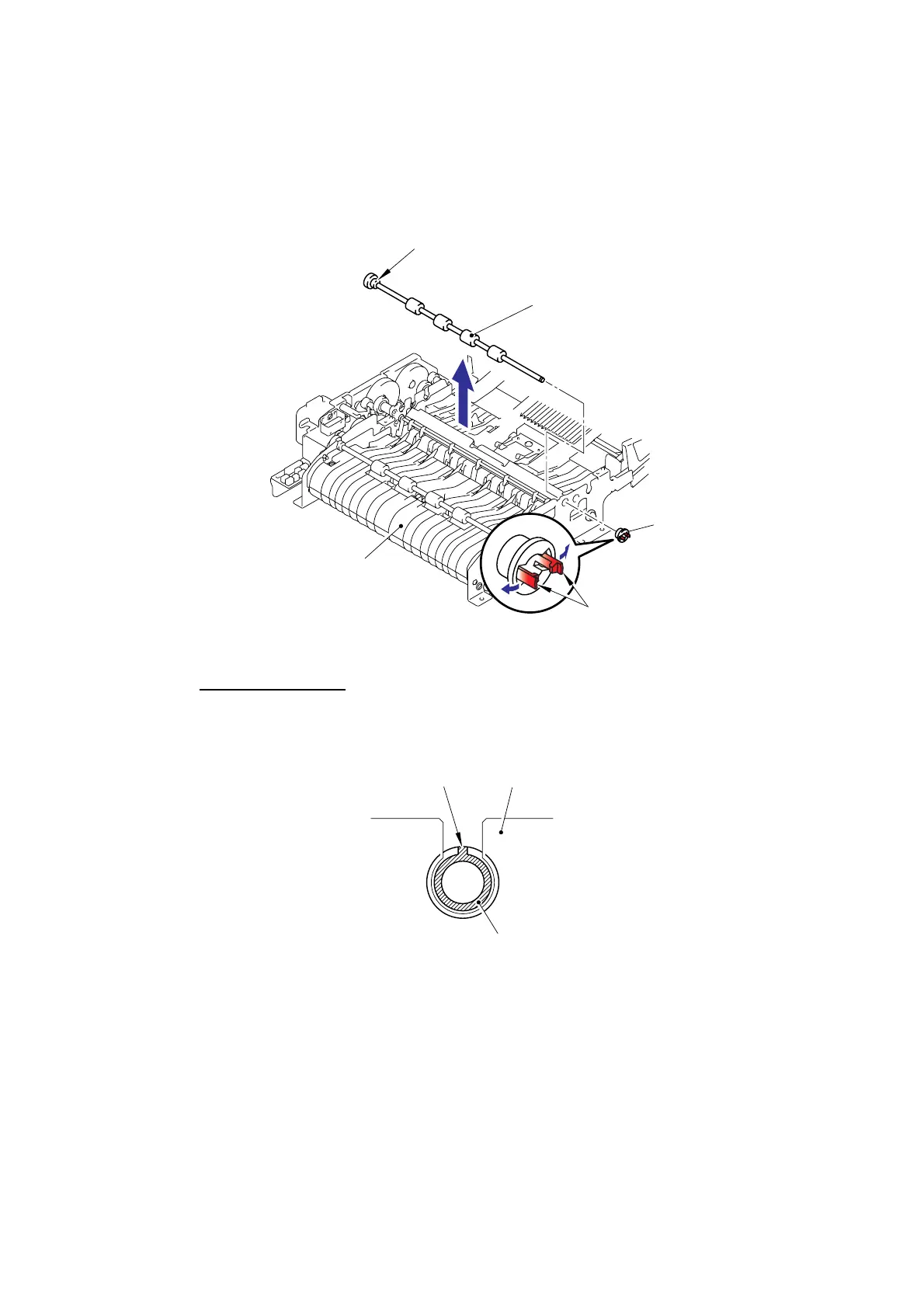

5.1.22 SB Roller ASSY (For the models with the DX only)
(1) Release the Hooks of the Conductive bushing A to remove the Conductive bushing A.
(2) Remove the Bushing from the ADF chute ASSY, and remove the SB roller ASSY from the
ADF chute ASSY.
Fig. 5-38

Assembling Notes
- When assembling the SB roller ASSY, assemble the Bushing with aligning the
Boss of the Bushing with the notch on the ADF chute ASSY.
Fig. 5-39
Conductive bushing A
SB roller ASSY
ADF chute ASSY
Hooks
<Front side>
Bushing
ADF chute ASSY
Bushing
Boss
