Brother DCP-8065DN

Confidential
5-75

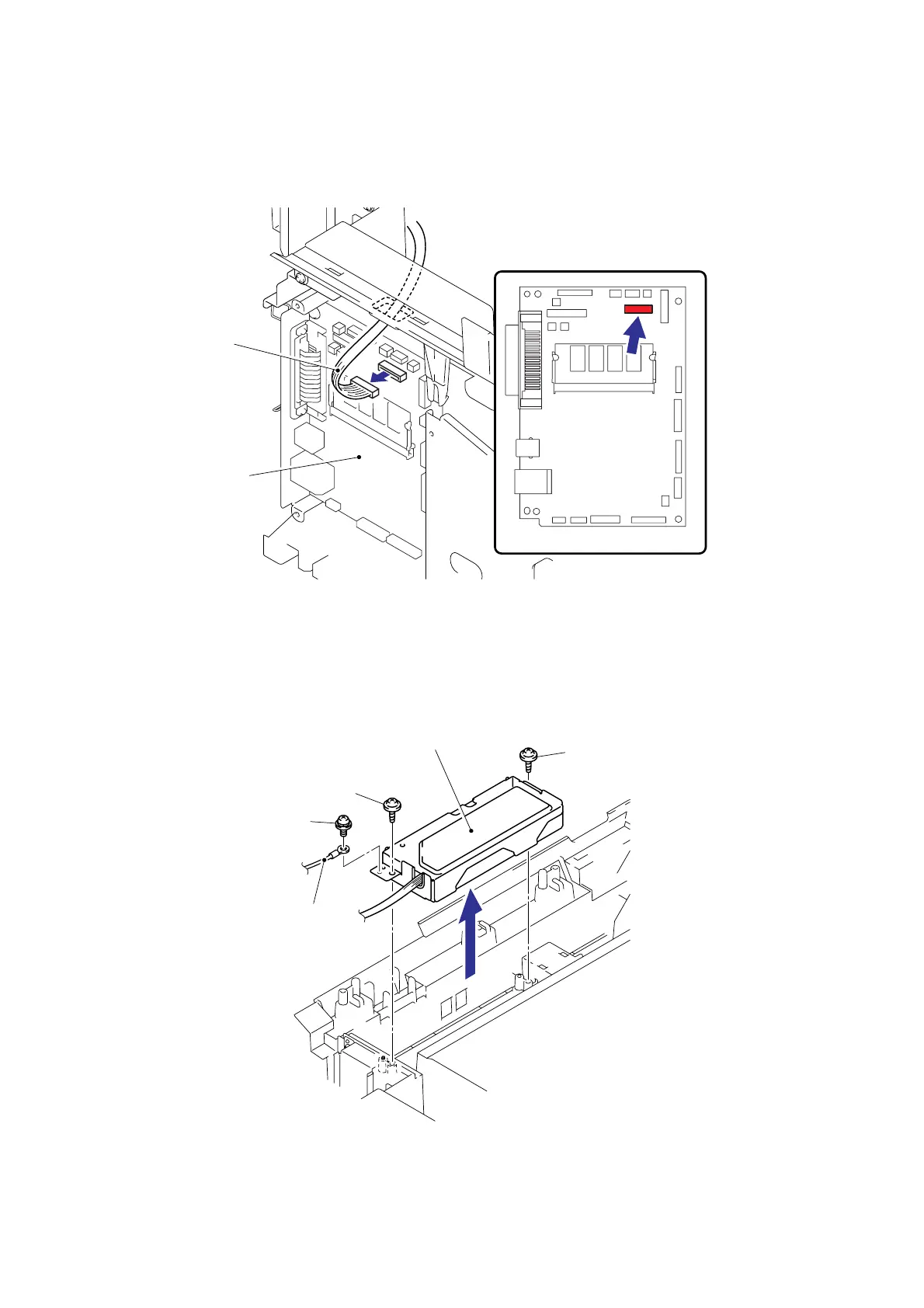

5.1.59 NCU PCB ASSY (For the models with the NCU only)
(1) Disconnect the connector of the NCU harness from the Main PCB.
Fig. 5-101
(2) Remove the Screw pan (S/P washer) M3.5x6 and NCU FG harness ASSY ALFB.
(3) Remove the two bind B M4x12 Taptite screws, and then remove the NCU unit.
Fig. 5-102
Taptite,
b
ind B M4x12
Screw
p
an (S/P washer)
M3.5x6
Taptite,
b
ind B M4x12
N
CU unit
N
CU FG harness ASSY ALFB
Main PCB
N
CU harness
Main PCB
<Back side>
<Left side>
