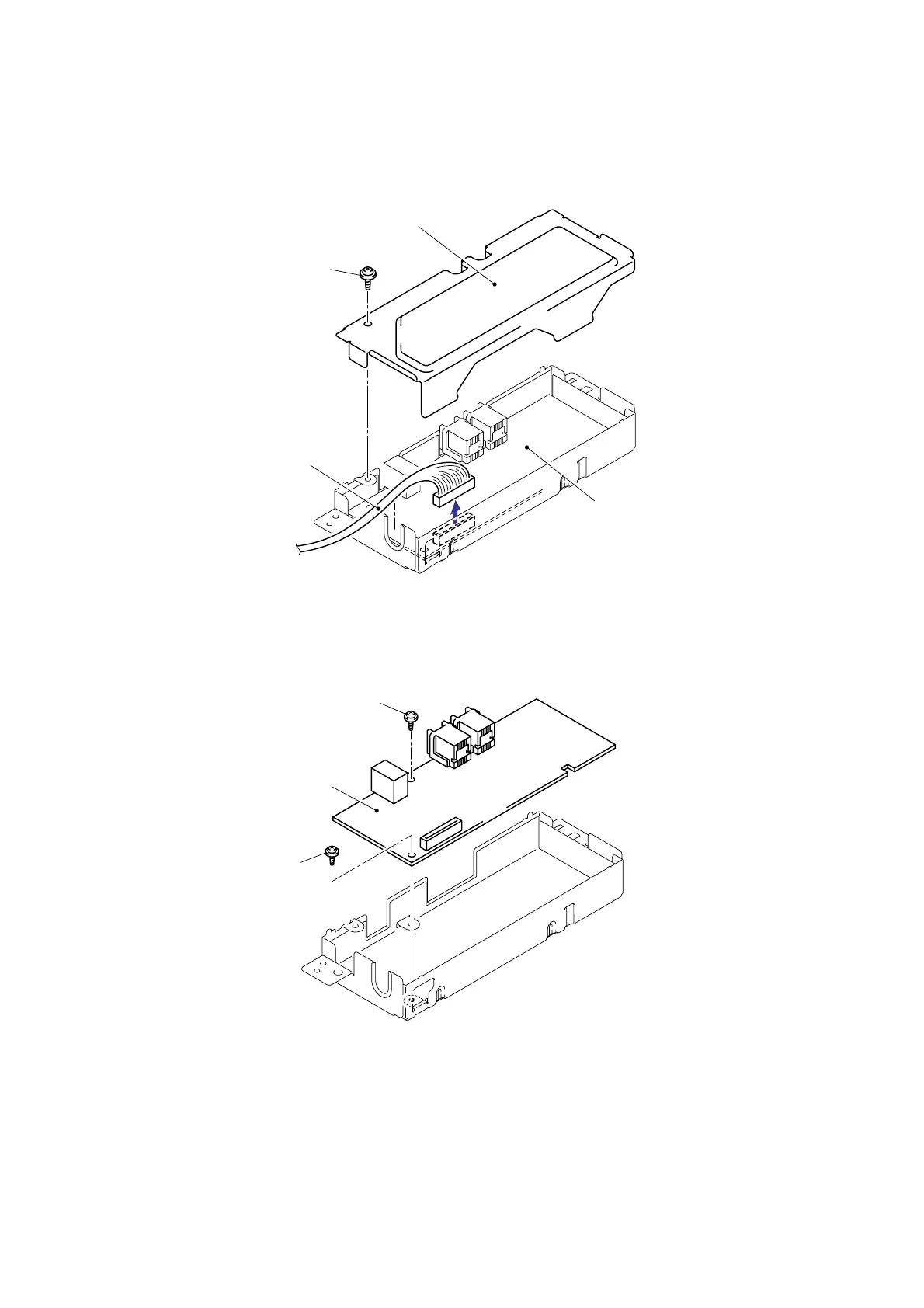

(4) Remove the Screw pan (S/P washer) M3.5x6 screw, and then remove the NCU shield plate.
(5) Disconnect the connector of the NCU harness.
Fig. 5-103
(6) Remove the two cup S M3x6 Taptite screws, and then remove the NCU PCB ASSY.
Fig. 5-104
N
CU shiel
d
plate
Screw
p
an (S/P washer)
M3.5x6
N
CU harness
N
CU PCB
Taptite, cup S M3x6
Taptite, cup S M3x6
N
CU PCB ASSY
