Brother DCP-8065DN - Register Solenoid ASSY; Ejector Solenoid ASSY (for the Models with the DX Only)

Confidential
5-96
5.1.74 Register Solenoid ASSY
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Register solenoid ASSY and the Solenoid release spring.

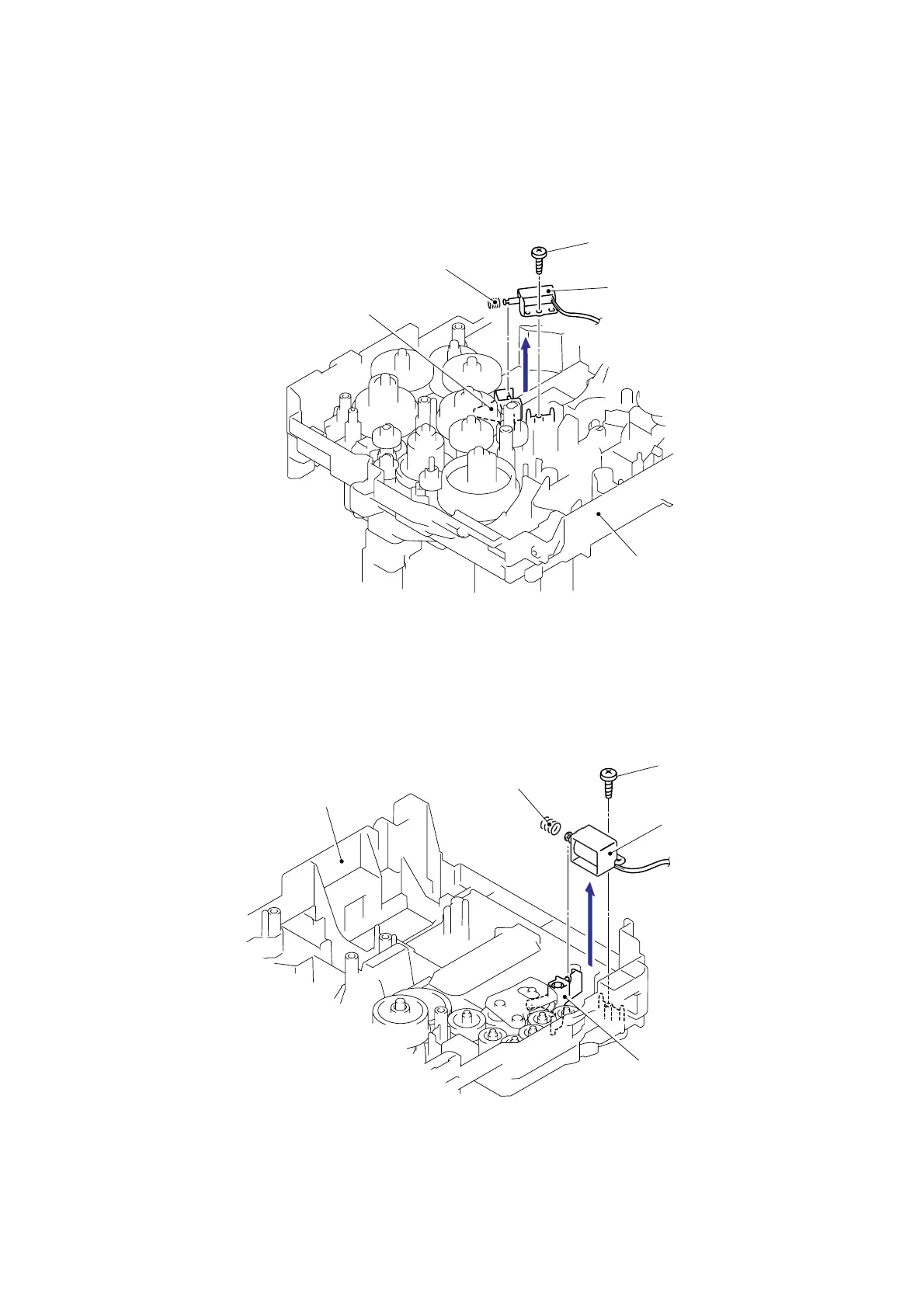

Fig. 5-141
5.1.75 Ejector Solenoid ASSY (For the models with the DX only)
(1) Remove the bind B M3x10 Taptite screw.
(2) Remove the Ejector solenoid and the Solenoid release spring.
Fig. 5-142
Taptite, bind B M3x10
Frame L
Register solenoid ASSY
Solenoid release spring
Register solenoid leve
r
Taptite, bind B M3x10
Ejector solenoi
d
Solenoid release spring
Frame L
Ejector solenoid leve
r
