Brother DCP-8065DN

Confidential
5-103

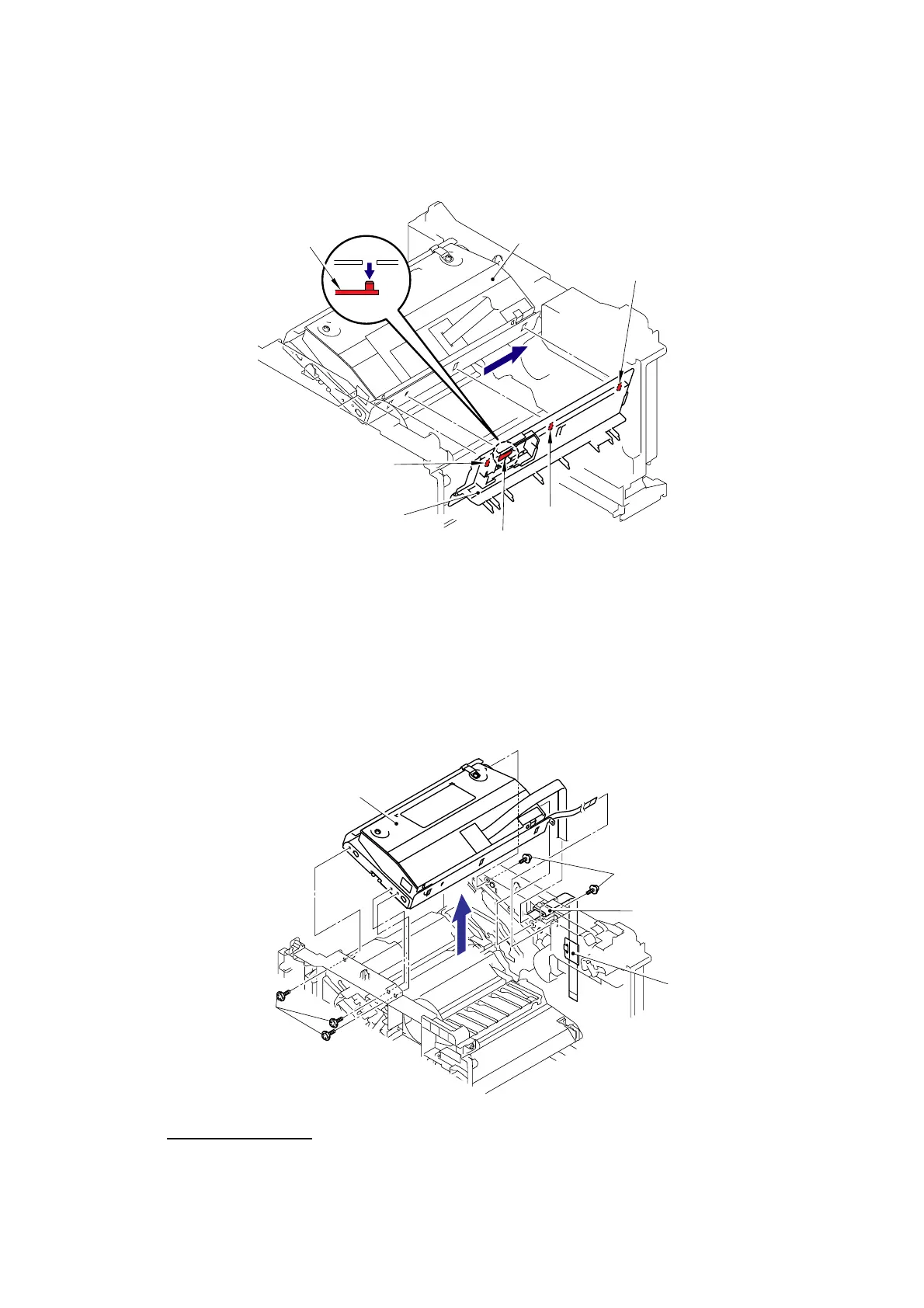

5.1.83 Laser Unit
(1) Remove the Pin of the Air duct from the frame. Slide the Air duct to the direction of the
arrow 1b and remove the Air duct.
Fig. 5-156
(2) Remove the five cup S M3x6 Taptite screws.
(3) Remove the Protective film.
(4) Pull out the flat cable from the Core.
(5) Remove the Laser unit.
NOTE:
- Be careful not to lose the Protective film attached on the flat cable.
- Do not touch the Laser scanner window directly.
Fig. 5-157

Assembling Notes
Before assembling the Laser unit, always assemble the Core.
Laser unit
Air duct
Hoo
k
Pin
Pin
Hoo
k
Pin
1b
Taptite, cup S M3x6
Taptite, cup S M3x6
Laser unit
Protective fil
m
Core
1a
<Back side>
<Front side>
