3.2.3.6 Paper eject
After the printing image on the exposure drum is transferred onto the paper, the paper is fed to the
fuser unit to fix unfixed toner onto the paper by the heat roller and the pressure roller in the fuser
unit.
Afterwards, the paper is ejected from the fuser unit. The paper eject actuator detects whether the
paper is ejected correctly or not.
After the paper exits from the heat roller, the paper is turned by the back cover and ejected face
down into the top output tray through the eject roller ASSY.

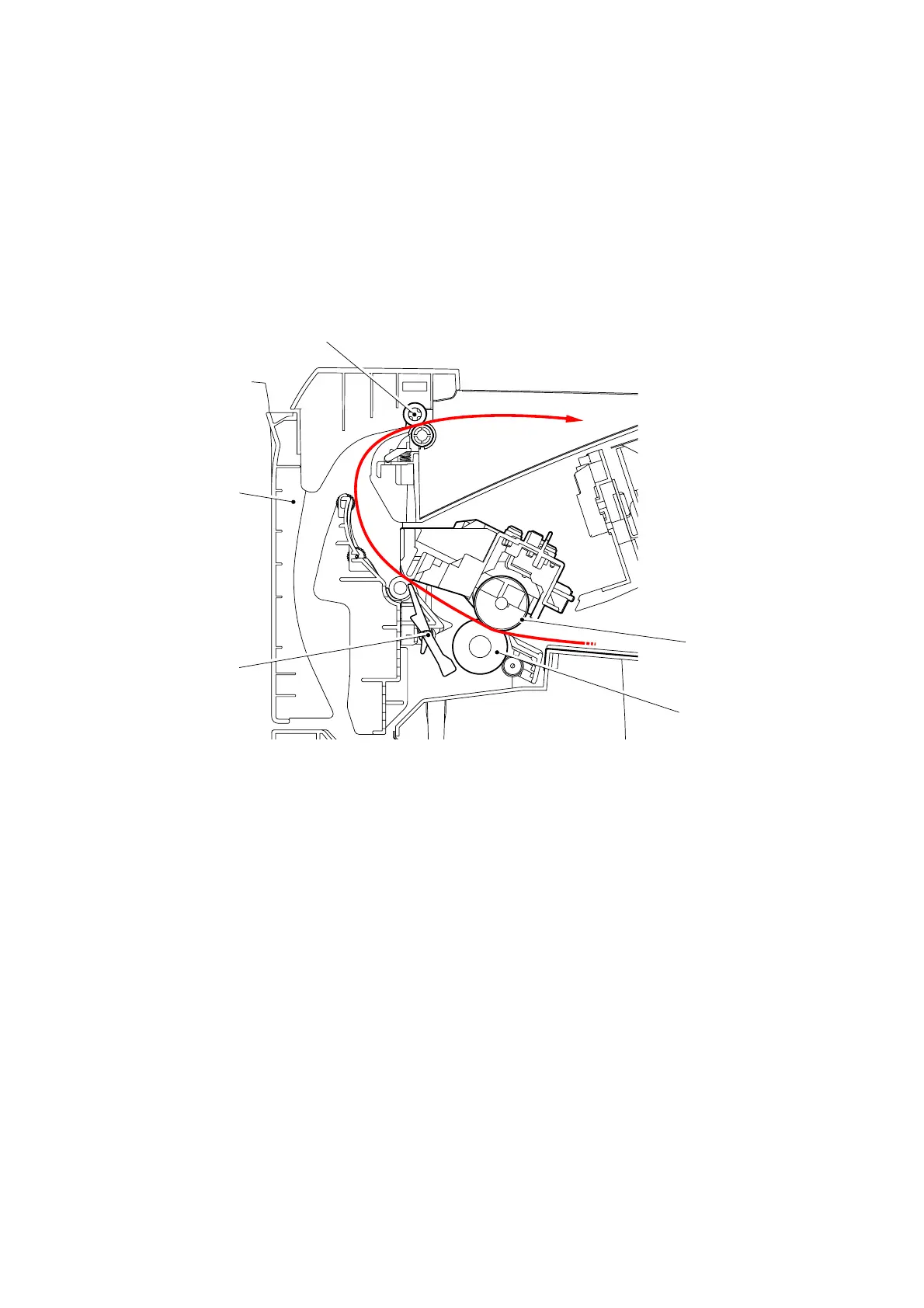

Fig. 3-17
When a paper jam occurs, the roller in the eject roller ASSY is released to remove the jammed
recording paper easily.
Paper eject actuator
Eject roller ASSY
Back cover
Heat roller
Pressure roller
