Brother DCP-8065DN - Page 179

Confidential
5-80

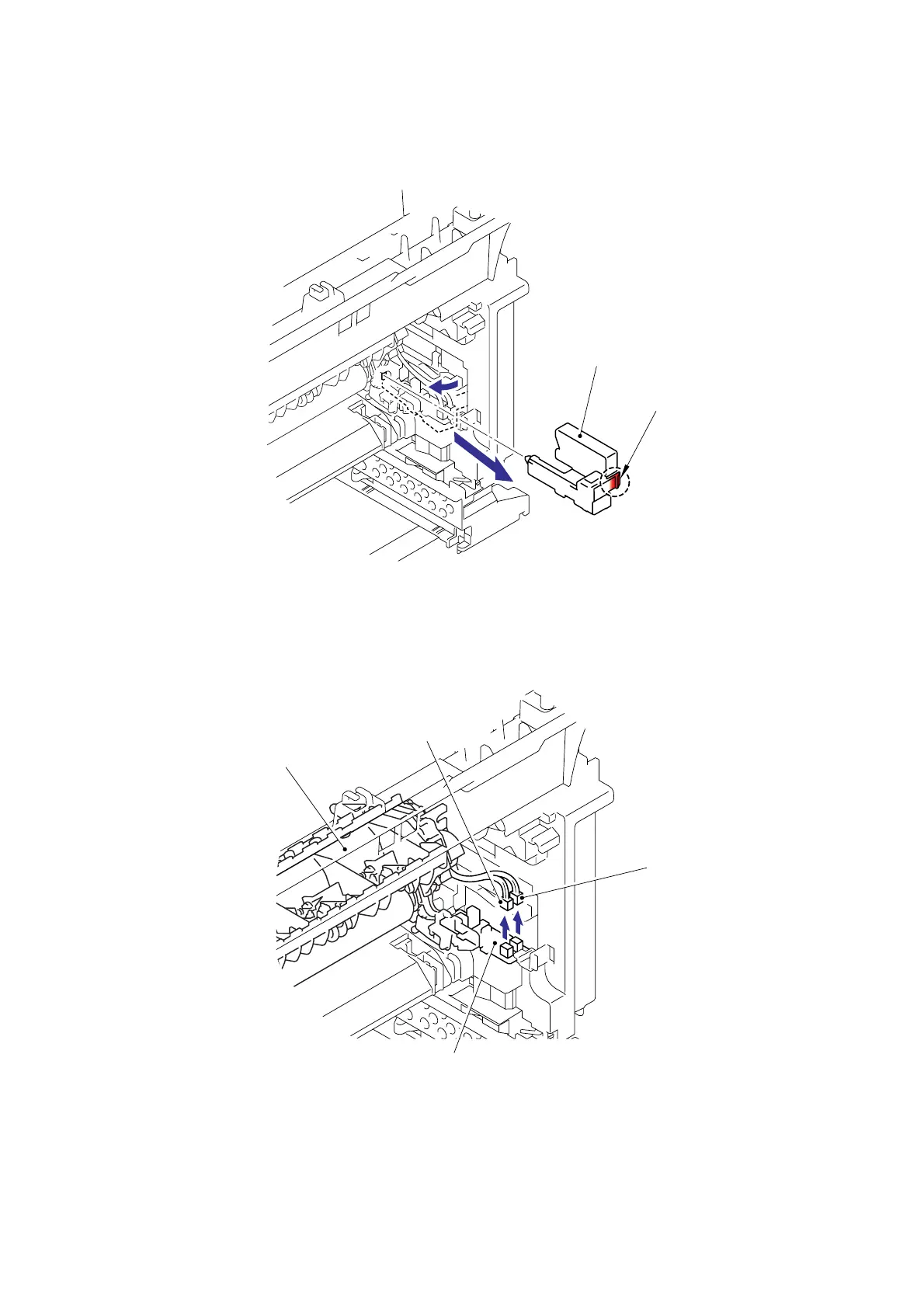

(3) Pull the FU harness cover 2 to the direction of the arrow 3a while pressing the Hook and
pull out the FU harness cover 2 from the back of the machine.
Fig. 5-111
(4) Disconnect the connectors of the Thermistor ASSY M and Thermistor ASSY S from the
Relay rear PCB ASSY, and remove the harnesses of these thermistors.
Fig. 5-112
FU harness cover 2
Hoo
k
Thermistor ASSY S
Relay rear PCB ASSY
Thermistor ASSY M
3a
3b
Fuser unit
