(7) Push the Hook of the Sub outer chute (indicated by the arrow 7a), and move the Eject
actuator to the direction of the arrow 7b.
(8) Lift up the Eject actuator to remove.
(9) Remove the Eject actuator spring.

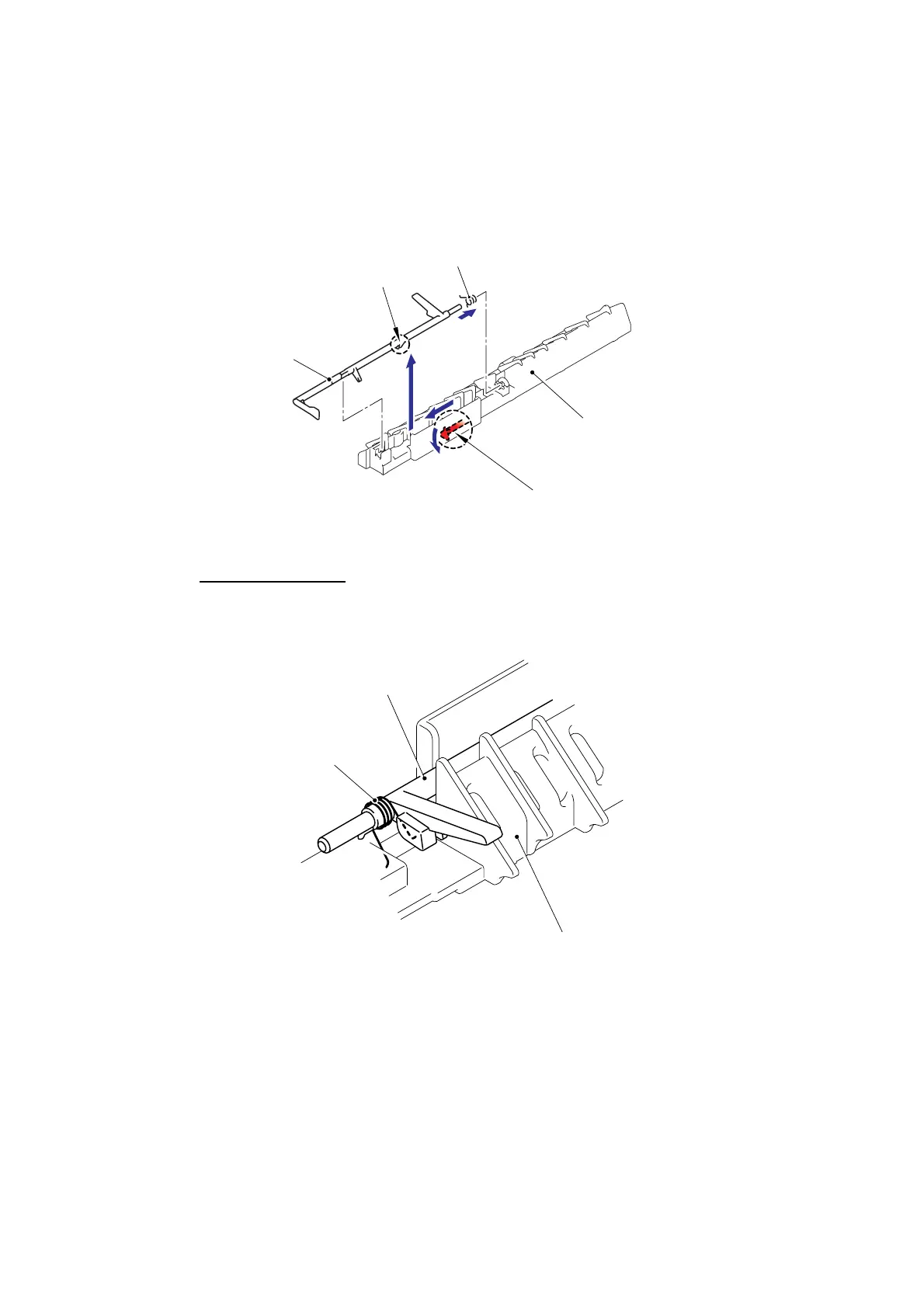

Fig. 5-14

Assembling Notes
When assembling the Eject actuator spring, ensure that its direction is correct referring
to the figure below.
Fig. 5-15
Sub outer chute
Hoo
k
7a
7b
8
9
Eject actuator spring
Rib
Eject actuato
r
Sub outer chute
Eject actuator spring
Eject actuato
r
