Brother DCP-8065DN

Confidential
5-48

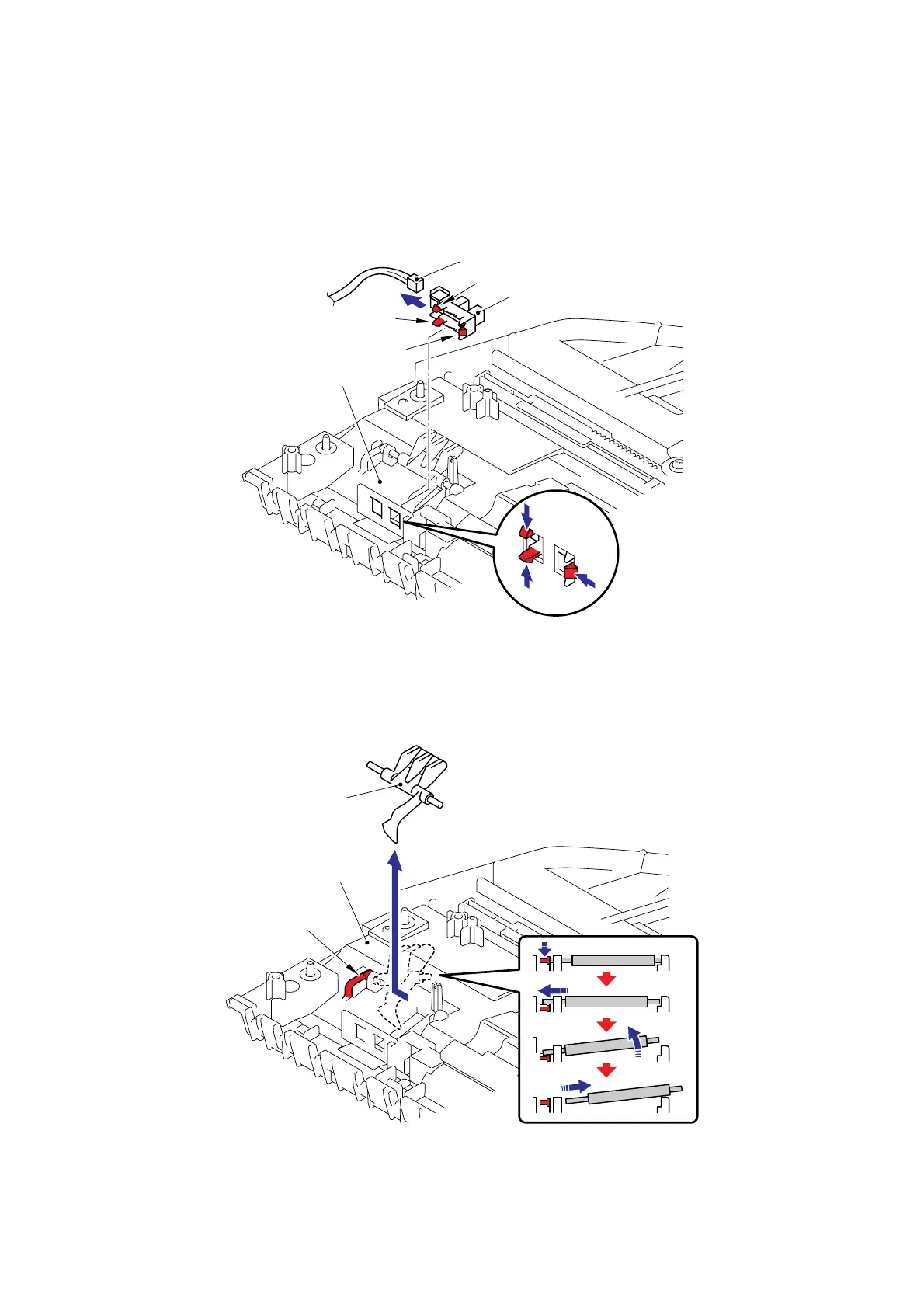

5.1.28 Actuator Front 1/Photo Interrupter (For the models with the DX only)
(1) Turn the Paper feed chute ASSY upside down. Release the Hooks of the Photo interrupter
to remove the Photo interrupter from the Paper feed chute ASSY.
(2) Disconnect the Connector from the Photo interrupter.
Fig. 5-49
(3) Push down the Stopper, slide the Actuator front 1 to the stopper side and pull up the
Actuator front 1 to remove.
Fig. 5-50
Connecto
r
Photo interrupte
r
Paper feed chute ASSY
Paper feed chute ASSY
Actuator front 1
Hoo
k
Hoo
k
Hoo
k
Stoppe
r
