Brother DCP-8065DN - Page 204

Confidential
5-105

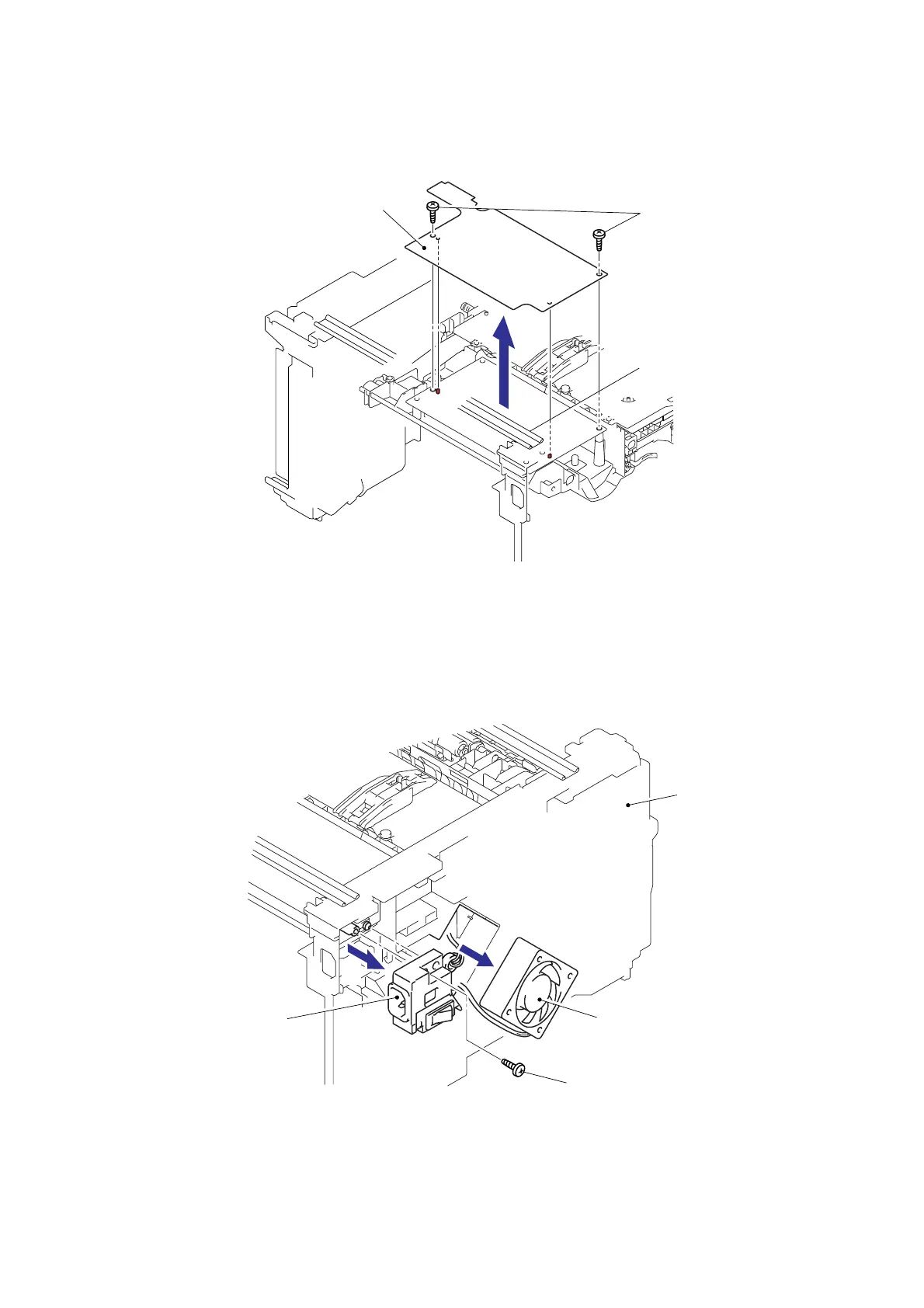

(6) Remove the two bind B M4x12 Taptite screws, and then remove the LV insulation sheet.
Fig. 5-159
(7) Remove the bind B M4x12 Taptite screw.
(8) Remove the SW holder ASSY.
(9) Float the Fan motor 60 unit LV from the Frame R.
Fig. 5-160
Taptite, bind B M4x12
LV insulation sheet
Frame R
Taptite, bind B M4x12
Fan motor 60 unit LV
SW holder ASSY
9
8
<Back side>
<Right side>
