Brother DCP-8065DN

Confidential
5-118

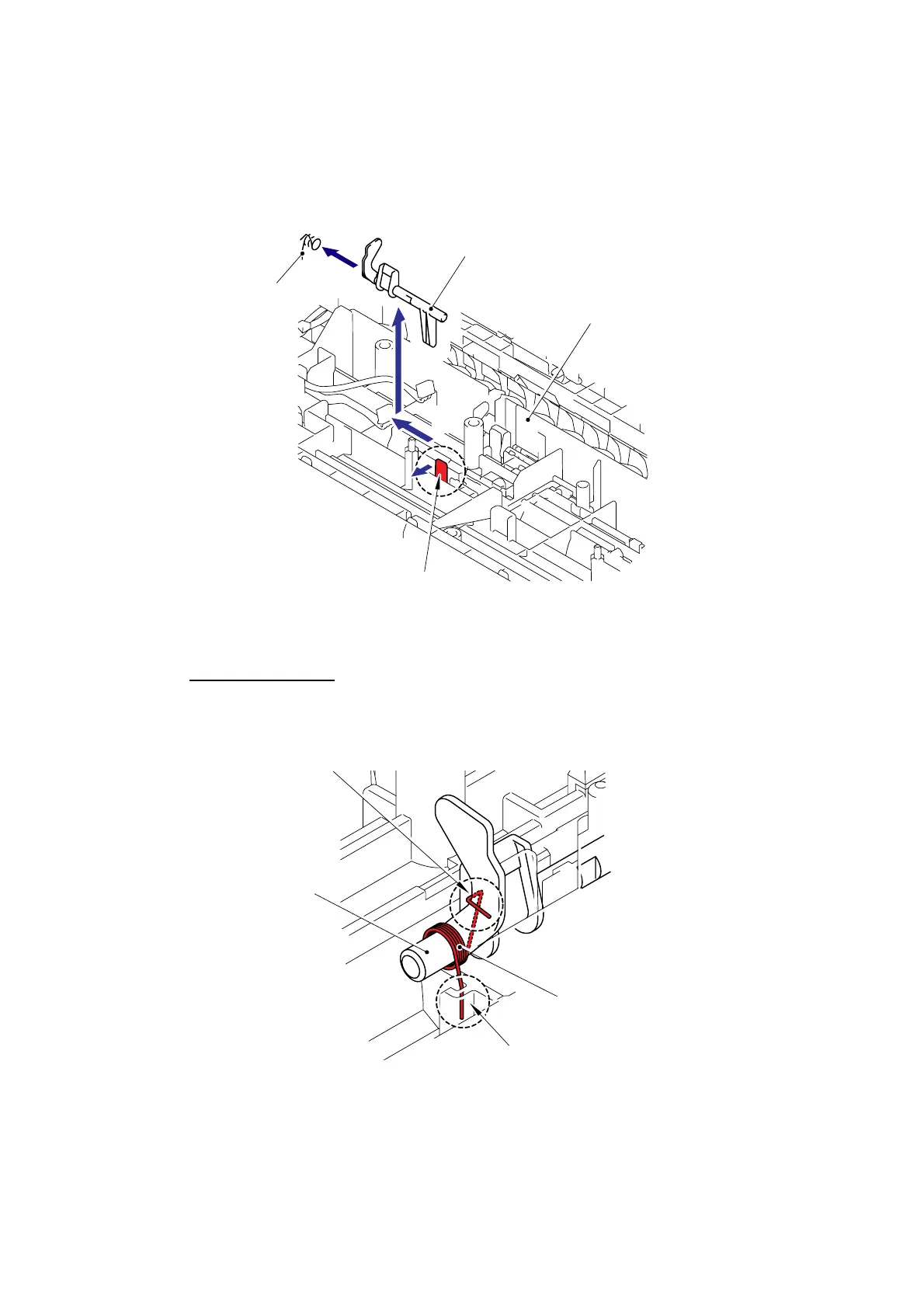

(3) Slide the Regist actuator rear to the direction of the arrow 3b while pressing the Hook to the
direction of the arrow 3a and pull up the Regist actuator rear to remove. Then, remove the
Regist actuator spring from the Regist actuator rear.
Fig. 5-185

Assembling Notes
When assembling the Regist actuator spring, ensure that its direction is correct
referring to the figure below.
Fig. 5-186
Paper feed unit
Regist actuator rea
r
Regist actuator spring
Hoo
k
3a
3c
3b
3d
Regist actuator rea
r
Regist actuator spring
Hoo
k
Hoo
k
