5-126

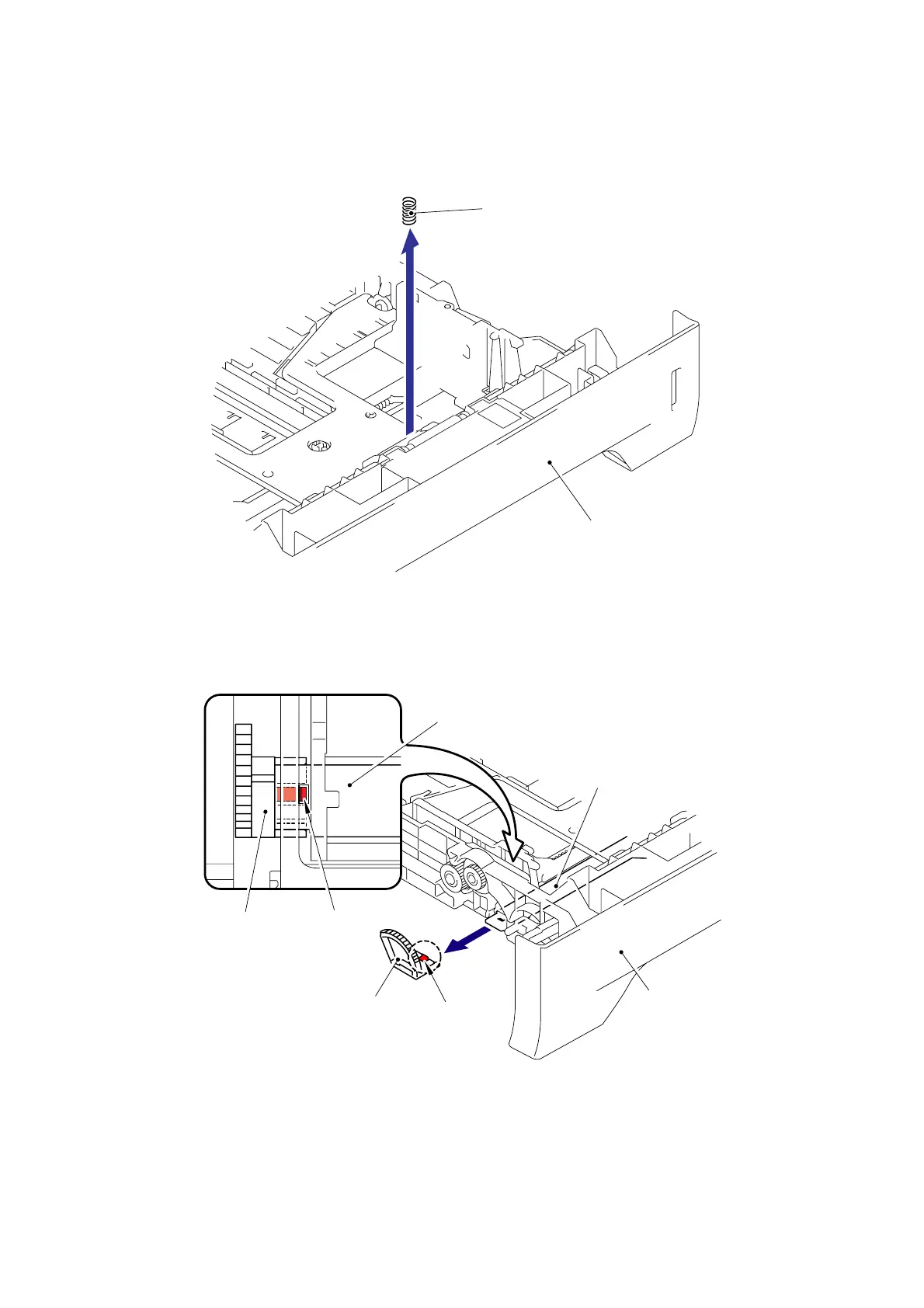

(5) Remove the Separation pad spring.
Fig. 5-200
(6) Remove the Lift gear 46.
Fig. 5-201
Paper tray
Separation pad spring
Paper tray
Lift gear 46
Hoo
k
Hoo
k
Lift gear 46
Plate up plate
Plate up plate
