6-11 Confidential
(26) Remove the two cup B M4x20 Taptite screws. Lift up the rear of the Scanner unit FLFB
slightly and remove the Scanner unit FLFB.

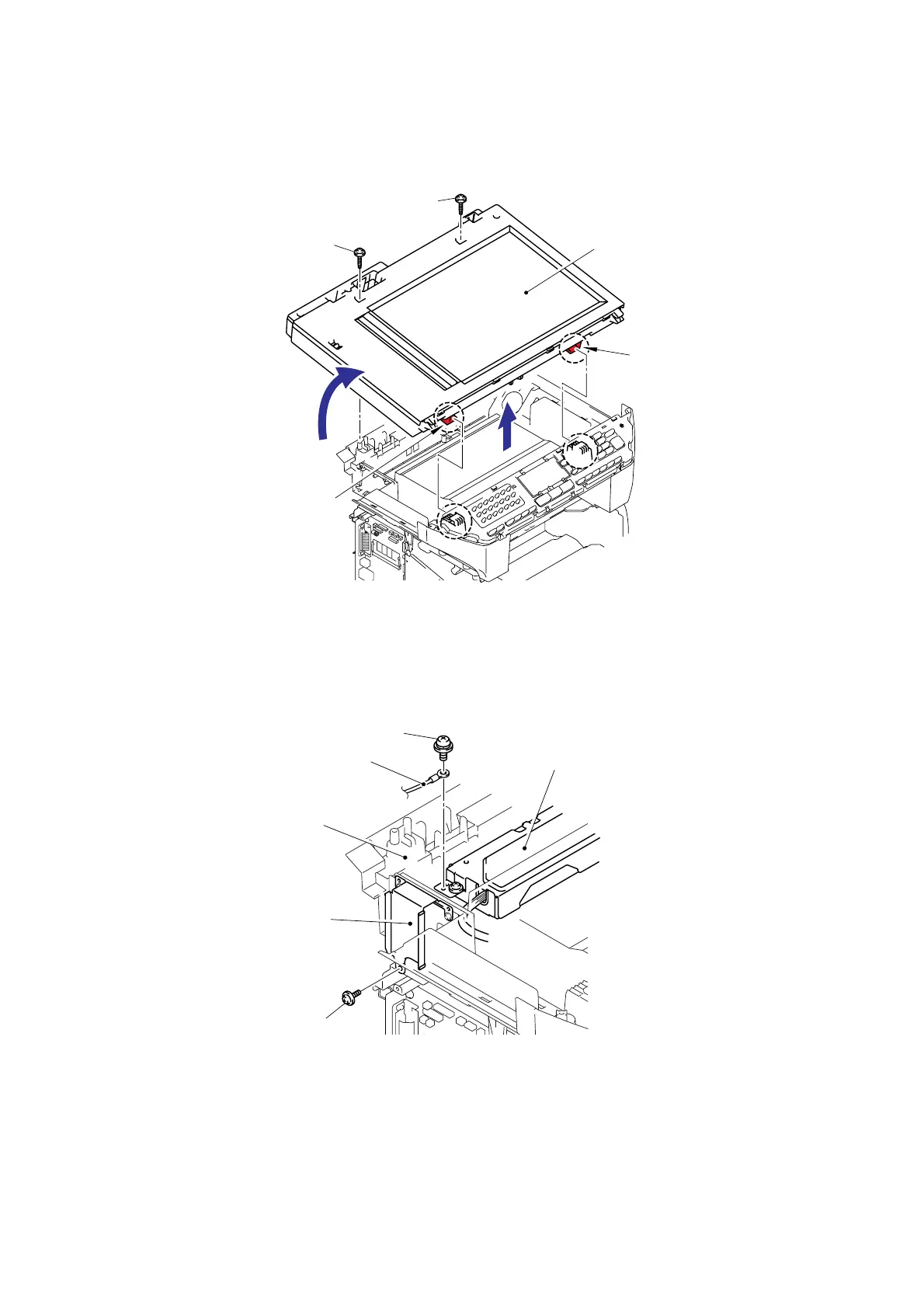

Fig. 6-17
(27) Remove the cup S M3x6 SR Taptite screw, and remove the Screw pan (S/P washer) M3.5x6
of the NCU FG harness ASSY ALFB.
Fig. 6-18
Taptite, cup B M4x20
Taptite, cup B M4x20
Scanner unit FLFB
Hook
Hook
26a
26b
Screw pan (S/P washer) M3.5x6
N
CU FG harness ASSY ALFB
Taptite, cup S M3x6 SR
CU unit
Driver PCB shield ALFB
Joint cover
