Brother DCP-8065DN Service Manual

Confidential
3-7

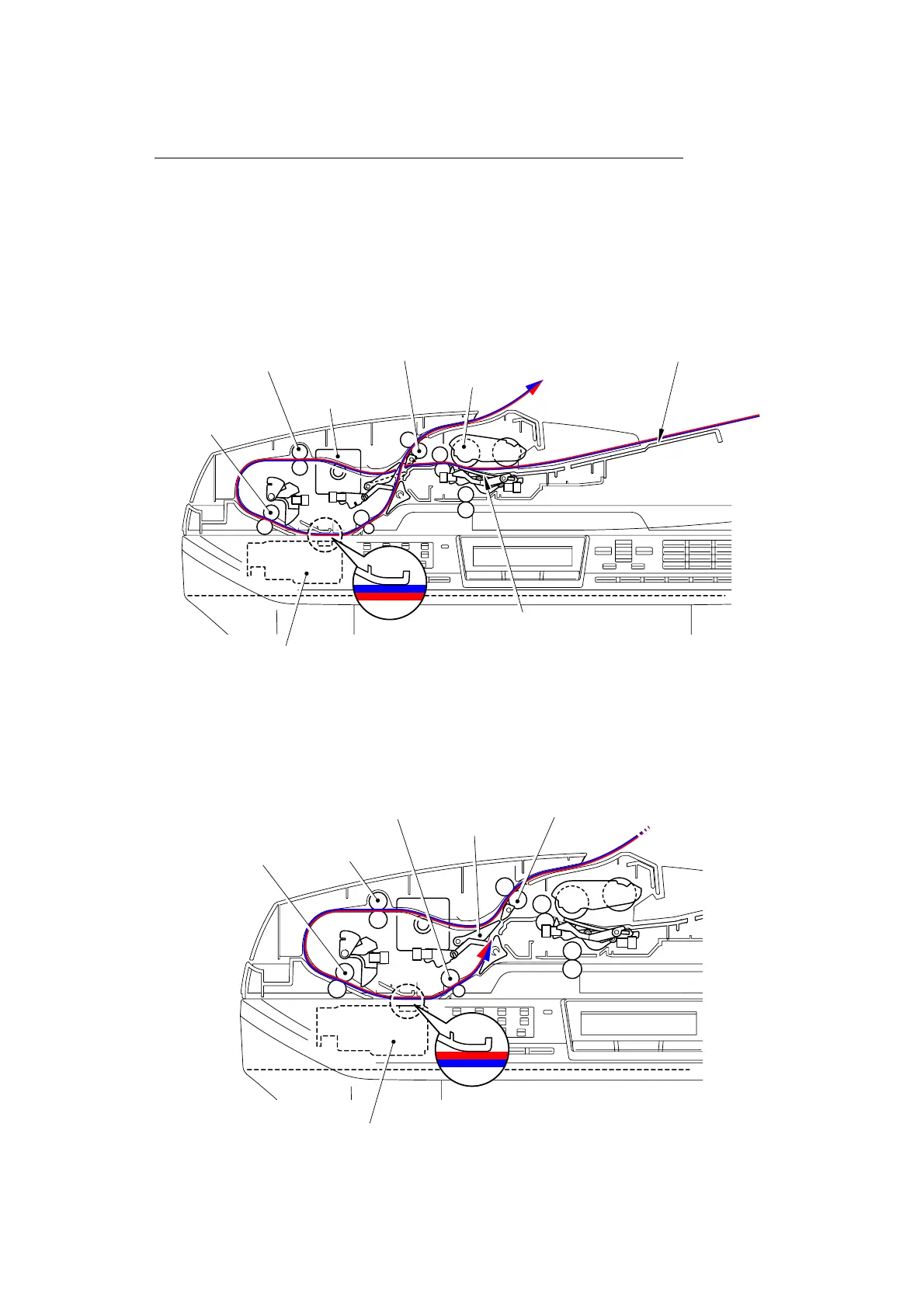

ADF duplex scanning (The document moves over the immovable CCD unit.)
(1) Set the document face up into the document chute. When the machine starts duplex scanning,
the ADF motor is rotated clockwise, the pick-up roller draws the document, and the separation
roller and separation pad send a sheet of the document to the ADF one by one from the top
page of the stacked documents.
(2) The document is passed through the paper feed rollers 1, 2 and 3, and is passed over the CCD
unit so that the document is scanned. Then, the document is sent for the specified distance by
the switch back roller ASSY, and the switch back roller is turned counter so that the document
is drawn again.
Fig. 3-7
(3) The drawn document is attached on the flap B and sent to the paper feed rollers 2 and 3. At
this time, the opposite side of the document is faced-up so that the backside of the document is
scanned. The document is sent to the switch back roller ASSY again.
Fig. 3-8
Paper feed chute ASSY
SB roller ASSY
ADF moto
r
Separation rolle
r
Paper feed roller 2
Paper feed roller 3
CCD module
Separatio
n
rubbe
r
SB roller ASSY
Flap B
Paper feed roller 2
Pape
r
feed roller 3
CCD module
Paper feed roller 4

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
