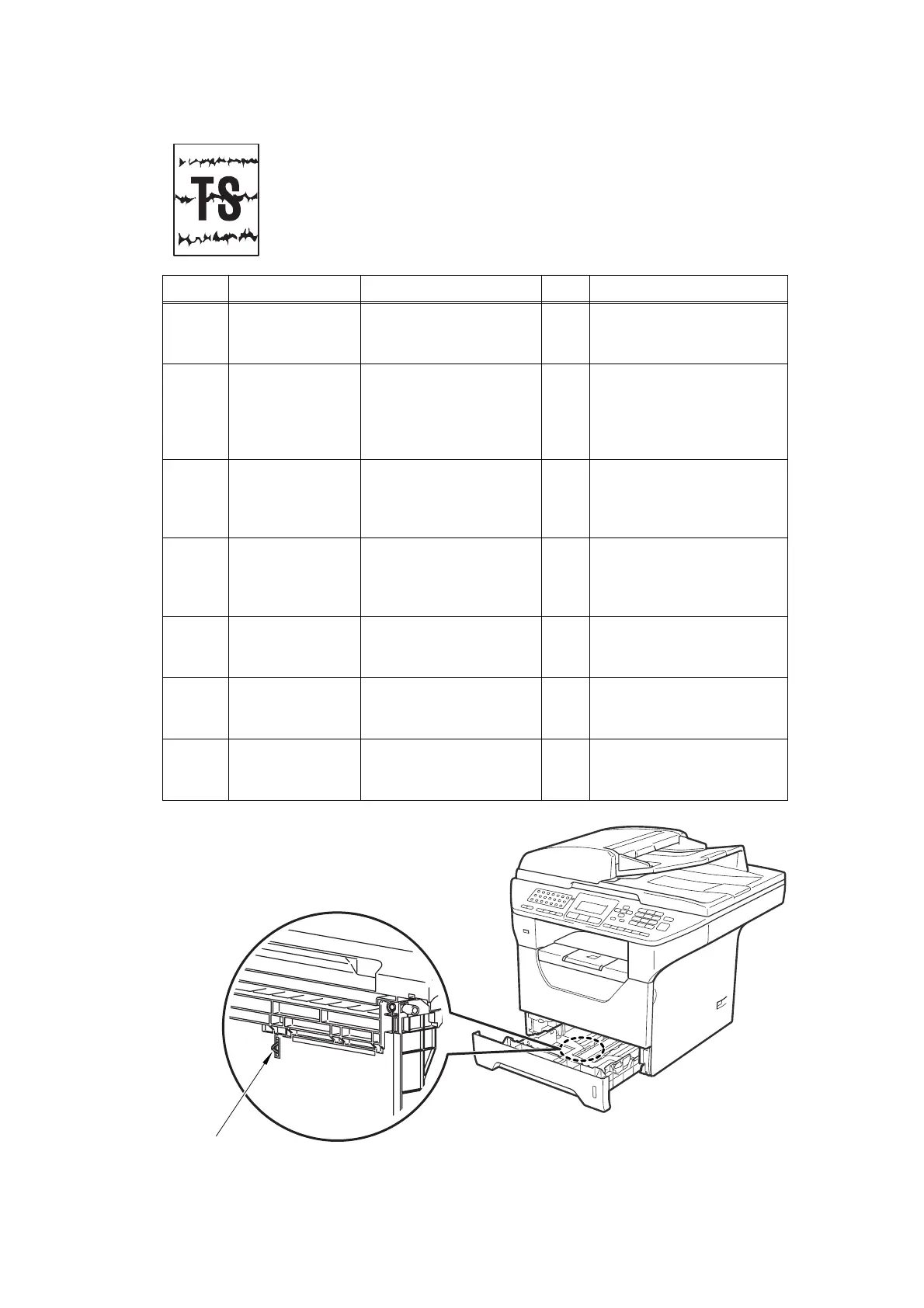

■ Black horizontal stripes
Fig. 3-7
<User Check>
- Clean the inside of the machine and the corona wire in the drum
unit.
- Replace the drum unit with a new one.
Step Cause Check
Result Remedy
1
Dirt on the
charged
electrode
Are the electrodes on
the drum unit and
machine body dirty?
Yes
Clean both electrodes.
(Refer to Fig. 3-2, Fig. 3-3.)
2
Paper tray
ground terminal
provided in the
machine body
Is the paper tray ground
terminal bent, which is
provided in the machine
body?
(Refer to
Fig. 3-7 .)
Yes
Correct bending of paper
tray ground terminal.
3
Toner attached
on the develop
roller
Are the horizontal stripes
at 42.5 mm (develop
roller circumference)
intervals?
Yes
This problem will disappear by
printing approximate 10 pages.
If the same problem occurs,
replace the toner cartridge.
4
Scratch and Dirt
on the exposure
drum
Are the horizontal stripes
at 94.2 mm (exposure
drum circumference)
intervals?
Yes
Replace the drum unit.
5
Scratch and Dirt
on the heat roller
Are the horizontal stripes
at 78.5 mm (heat roller
circumference) intervals?
Yes
Replace the fuser unit.
6
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
7
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.
Bottom surface
of Paper tray
Paper tray ground terminal.

Brother MFC-8480DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	32 ppm
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Power supply type	AC
Weight (imperial)	40.3 lbs
Dimensions (WxDxH)	530.8 x 449.5 x 474.9 mm
Power requirements	110 - 240V, 50/60 Hz
All-in-one functions	Copy, Fax, Scan
Standard media sizes	2.75'' - 8.5\
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows OS Mac OS
Package dimensions (W x D x H)	24.7 x 22.3 x 22.6 \
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Display	LCD
Market positioning	Business
Internal memory	64 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	30 dB
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, LLMNR, LPR/LPD, IPP/IPPS, FTP, HTTP/HTTPS, SSL/TLS, TFTP, SMTP, APOP, POP, SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD, CIFS, SNTP, NDP, RA, DNS, mDNS, ICMPv6
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18 W
Power consumption (average operating)	680 W
Package weight	21645 g
Sustainability certificates	ENERGY STAR
Maximum duty cycle	30000 pages per month
Recommended duty cycle	3500 pages per month
Operating temperature (T-T)	10 - 32.2 °C
Operating relative humidity (H-H)	20 - 80 %
