Brother MFC-8480DN Service Manual

5-104
Confidential

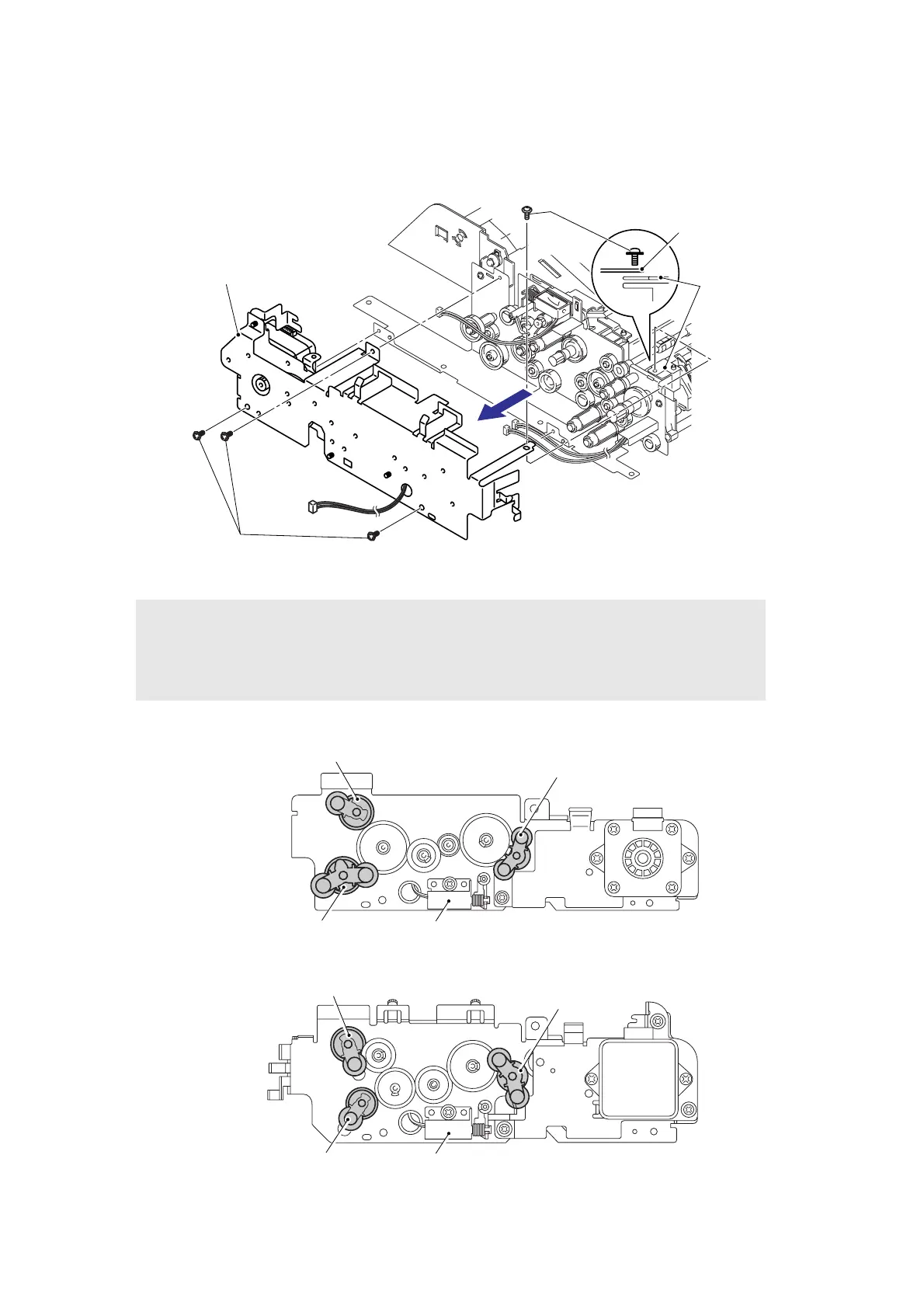

9.8.47 Motor Frame ASSY
(1) Remove the three cup S M3x6SR Taptite screws and one cup S M3x10 Taptite screw,
and remove the Motor frame ASSY.
Fig. 5-110
Fig. 5-111
Assembling Note:
• When assembling the Motor frame ASSY, ensure that the gears (indicated with gray)
are placed in the positions as shown in the figure below.
• Check that the “A” part is the upper side of the Exit chute.
Taptite cup S M3x6SR
Motor frame ASSY
"A" part of the
Motor frame ASSY
Taptite cup S M3x10
Exit chute
Switch back flap planetary gear
Paper feed planetary gear
Pick up planetary gear
Pick up solenoide ASSY
Switch back flap planetary gear
<ADF unit gear layout drawing of the old type>
<ADF unit gear layout drawing of the new type>
Paper feed planetary gear
Pick up planetary gear
Pick up solenoide ASSY

Brother MFC-8480DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	32 ppm
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Power supply type	AC
Weight (imperial)	40.3 lbs
Dimensions (WxDxH)	530.8 x 449.5 x 474.9 mm
Power requirements	110 - 240V, 50/60 Hz
All-in-one functions	Copy, Fax, Scan
Standard media sizes	2.75'' - 8.5\
Maximum internal memory	0.576 GB
Color all-in-one functions	scan, n
Compatible operating systems	Windows OS Mac OS
Package dimensions (W x D x H)	24.7 x 22.3 x 22.6 \
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Display	LCD
Market positioning	Business
Internal memory	64 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	30 dB
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA, LLMNR, LPR/LPD, IPP/IPPS, FTP, HTTP/HTTPS, SSL/TLS, TFTP, SMTP, APOP, POP, SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD, CIFS, SNTP, NDP, RA, DNS, mDNS, ICMPv6
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18 W
Power consumption (average operating)	680 W
Package weight	21645 g
Sustainability certificates	ENERGY STAR
Maximum duty cycle	30000 pages per month
Recommended duty cycle	3500 pages per month
Operating temperature (T-T)	10 - 32.2 °C
Operating relative humidity (H-H)	20 - 80 %
