9.11.4 LCD Cover / Backlight Module / LCD

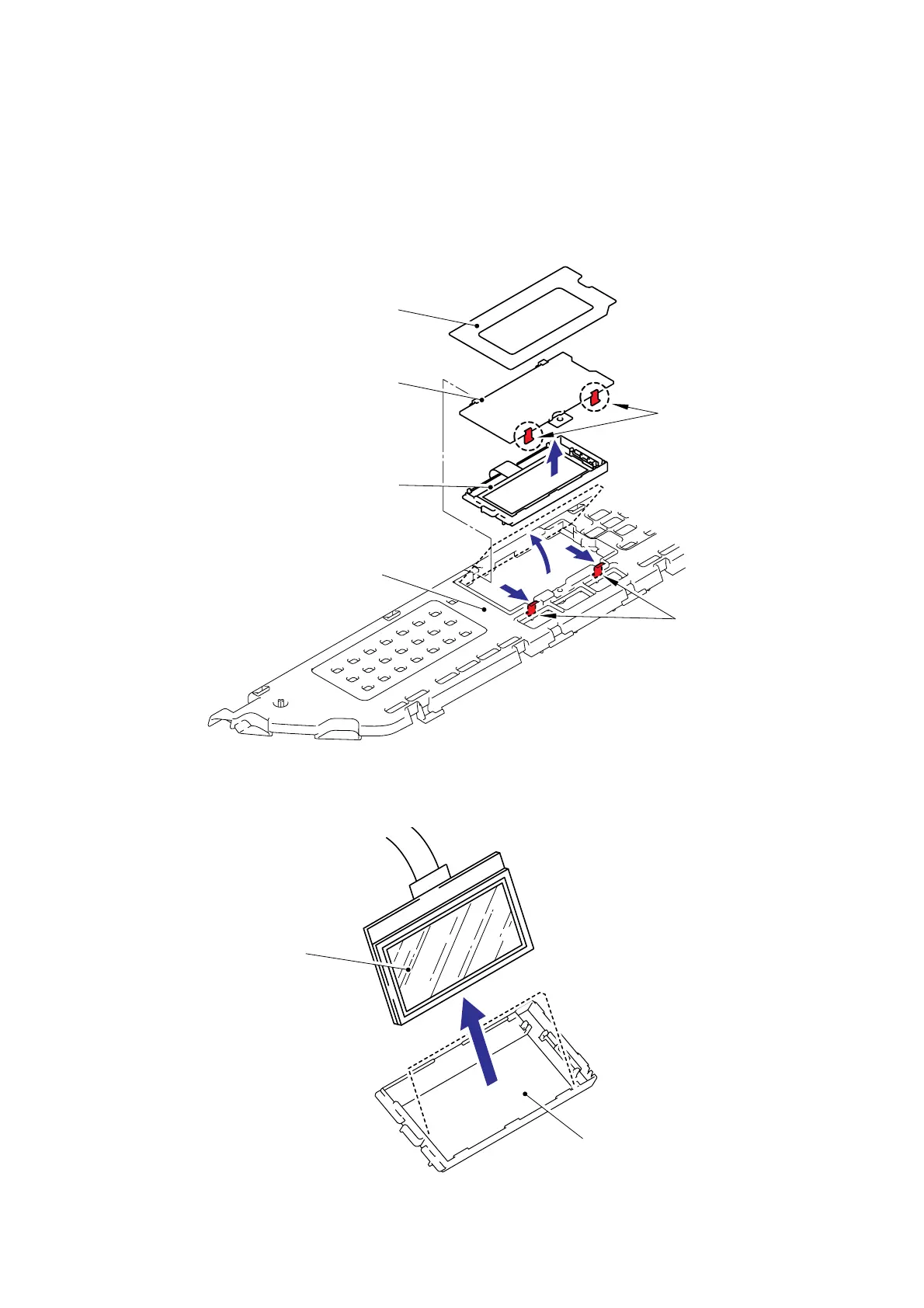

(1) Remove the Panel insulation sheet from the LCD cover.
(2) Release the Hooks on the Panel cover to the direction of the arrow and remove the LCD
cover from the Panel cover.
(3) Remove the LCD ASSY.
Fig. 5-171
(4) Remove the LCD from the Backlight module.
Fig. 5-172
2a
2a
2b
2c
2a
2a
Hooks
Hooks
Panel cover
LCD ASSY
LCD cover
Panel insulation sheet
LCD
Backlight module
