Brother MFC-8480DN - ADF Motor; PF Solenoid ASSY

5-105
Confidential

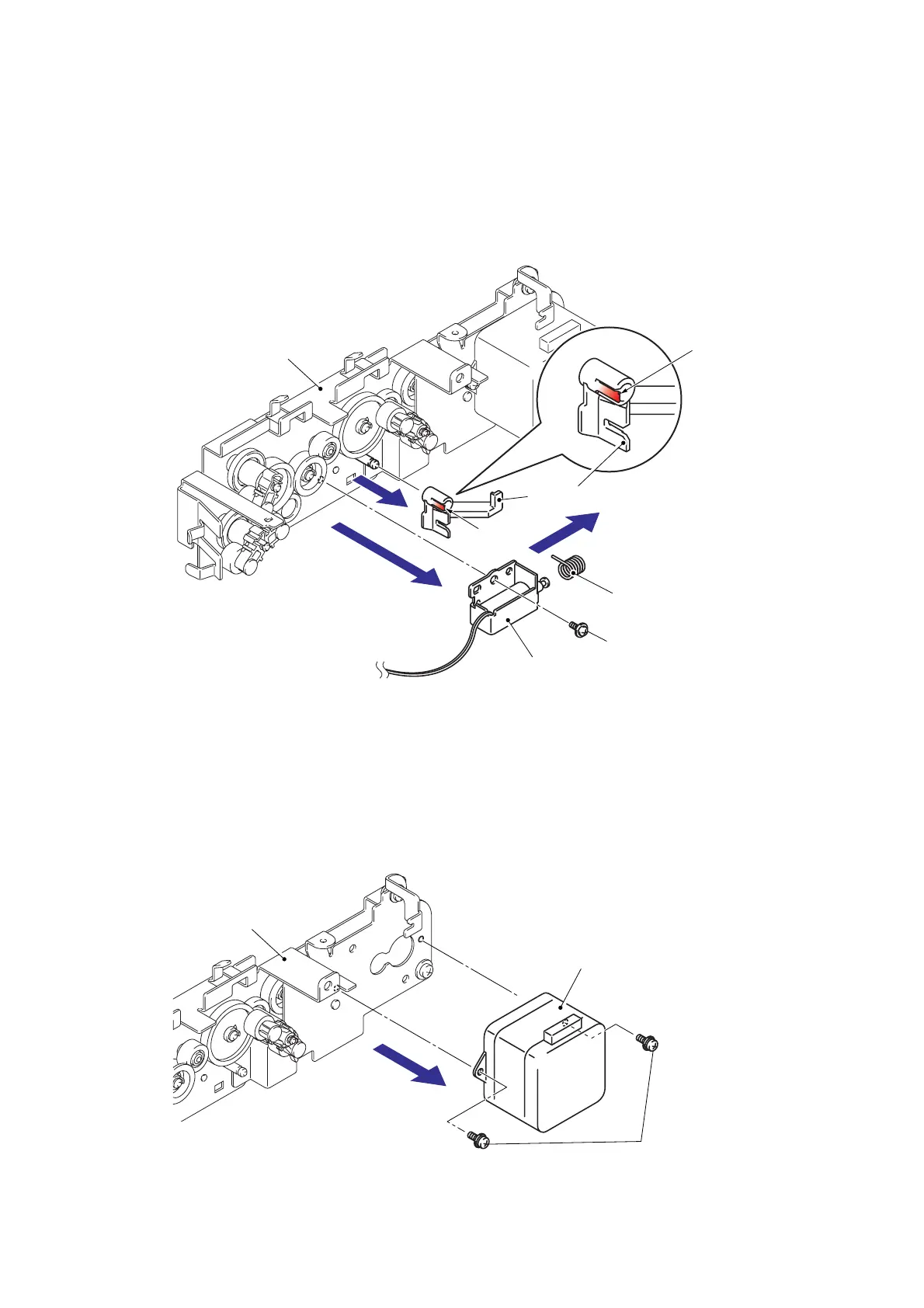

9.8.48 PF Solenoid ASSY
(1) Remove the cup S M3x6SR Taptite screw, and remove the Pickup solenoid ASSY.
(2) Remove the Solenoid release spring from the Pickup solenoid ASSY.
(3) Release the Hook, and remove the Pick solenoid lever from the Shaft of the Motor frame
ASSY.
Fig. 5-112
9.8.49 ADF Motor
(1) Remove the two screw pan (S/P washer) M3x6DB, and remove the ADF motor from the
Motor frame ASSY.
Fig. 5-113
2a2a
33
2b2b
Pickup solenoid ASSY
Taptite cup S M3x6SR
Solenoid release spring
Hook
Pick solenoid lever
Motor frame ASSY
ADF motor
Screw pan (S/P washer) M3x6DB
Motor frame ASSY
