9.15 USB HOST PCB ASSY
■ CCD model
(1) Disconnect the connector of the USB HOST harness ASSY from the Main PCB.

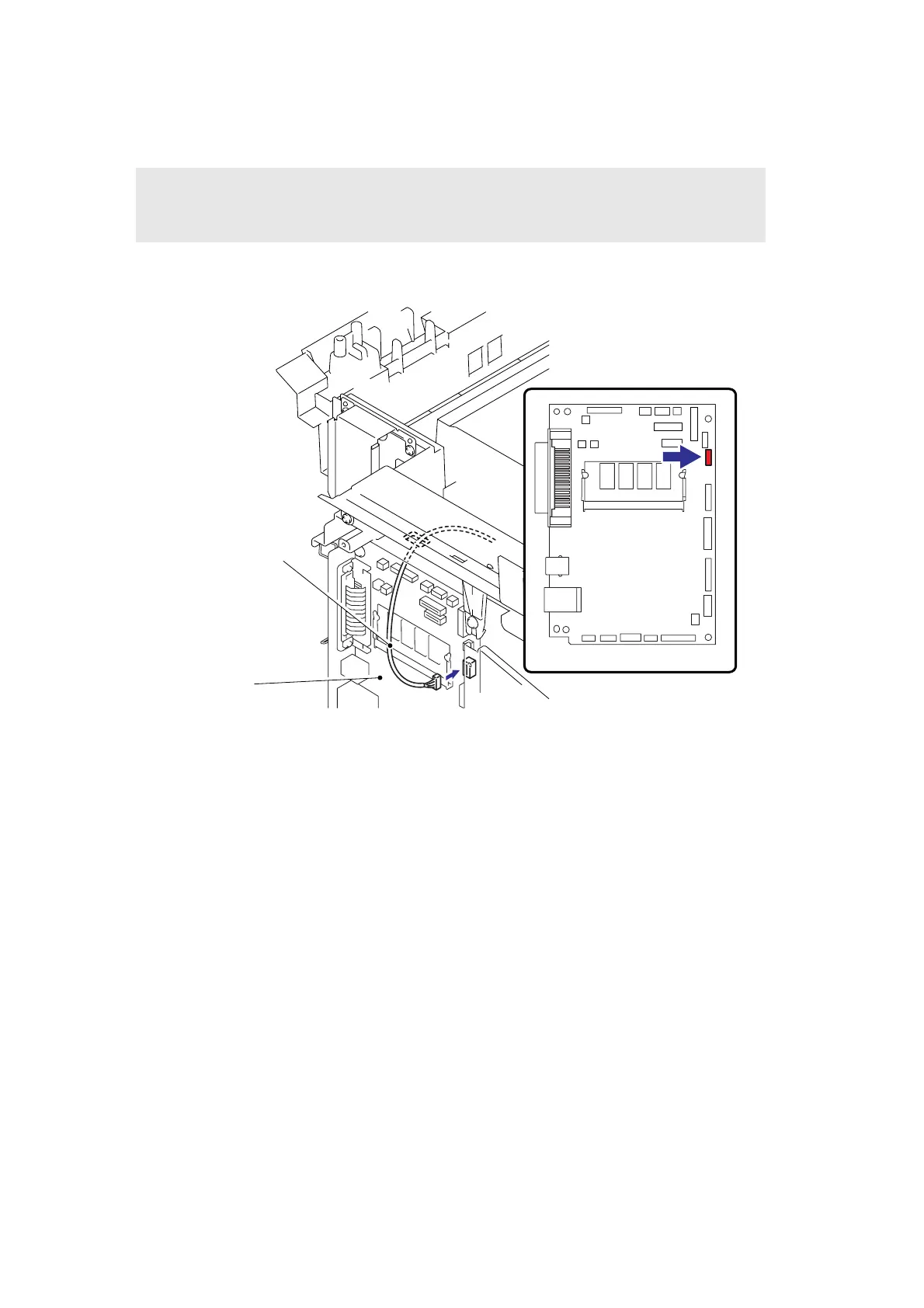

Fig. 5-196
Note:
• In the case of the USB HOST PCB ASSY of the CIS model, refer to "9.18.5 USB Host
PCB ASSY"
Main PCB
USB HOST harness
ASSY
Main PCB
