Brother MFC-8480DN - CIS Model; Speaker ASSY

5-164
Confidential
■ CIS model
9.13.2 Speaker ASSY

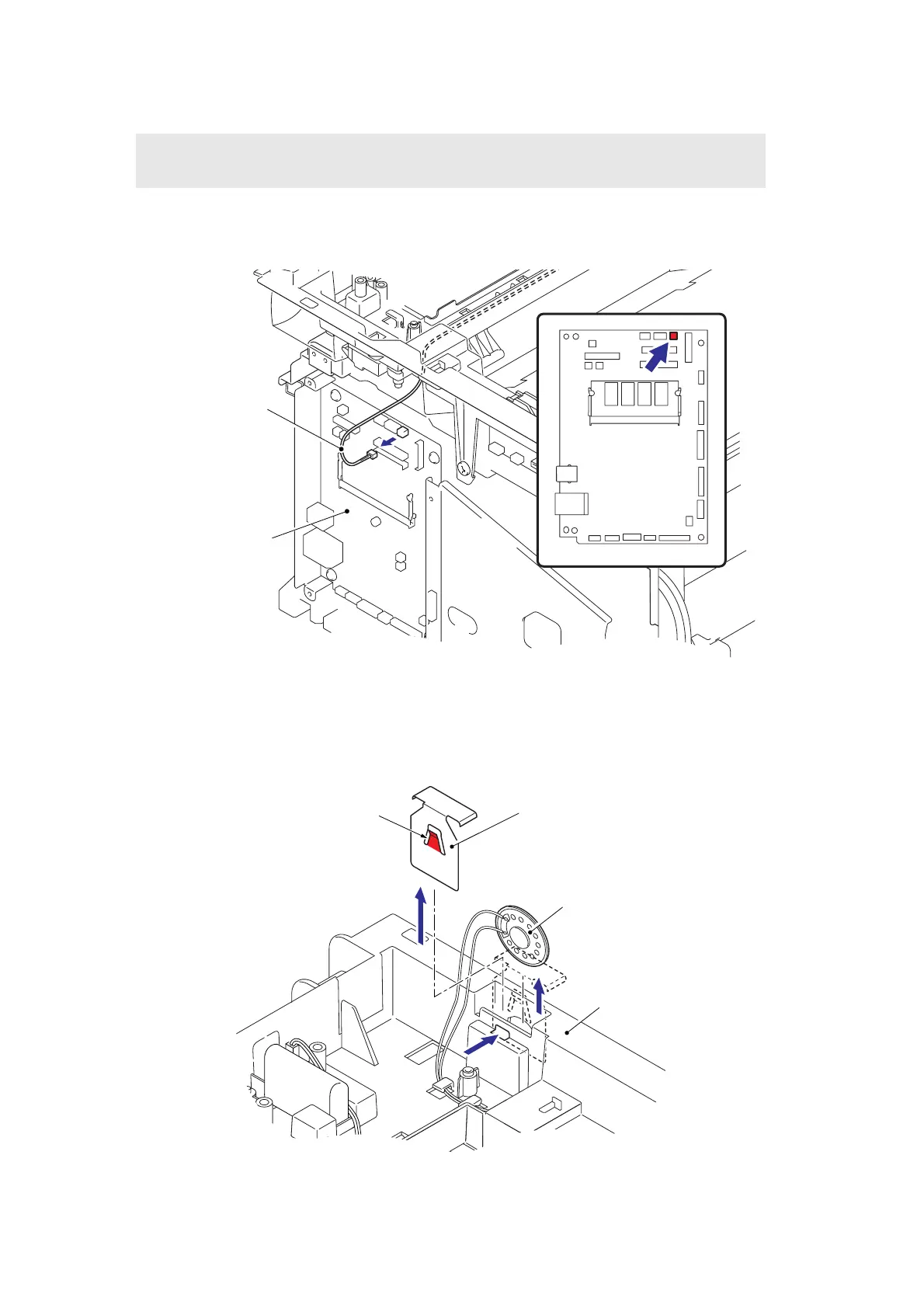

(1) Disconnect the Connector of the Speaker harness from the Main PCB.
Fig. 5-190
(2) Release the Hook of the Speaker hold spring, and remove the Speaker hold spring and
the Speaker unit from the Joint cover ASSY.
Fig. 5-191
Note:
• In the case of the CCD model, refer to "9.13.1 Speaker ASSY".
Main PCB
Main PCB
Speaker harness
<Left side>
2b
2c
2a
Speaker hold spring
Speaker unit
Joint cover ASSY
Hook
