Brother MFC-8480DN - Inner Chute

5-179
Confidential
9.18.6 Inner Chute
(1) Remove the four bind B M4x12 Taptite screws, and remove the Inner chute from the
Joint cover ASSY.
(2) Remove the four Pinch roller holders and the four Pinch roller springs from the Inner
chute.
(3) Remove the two Corrugation pinch rollers L and two Corrugation pinch rollers R from the
four Pinch roller holders.

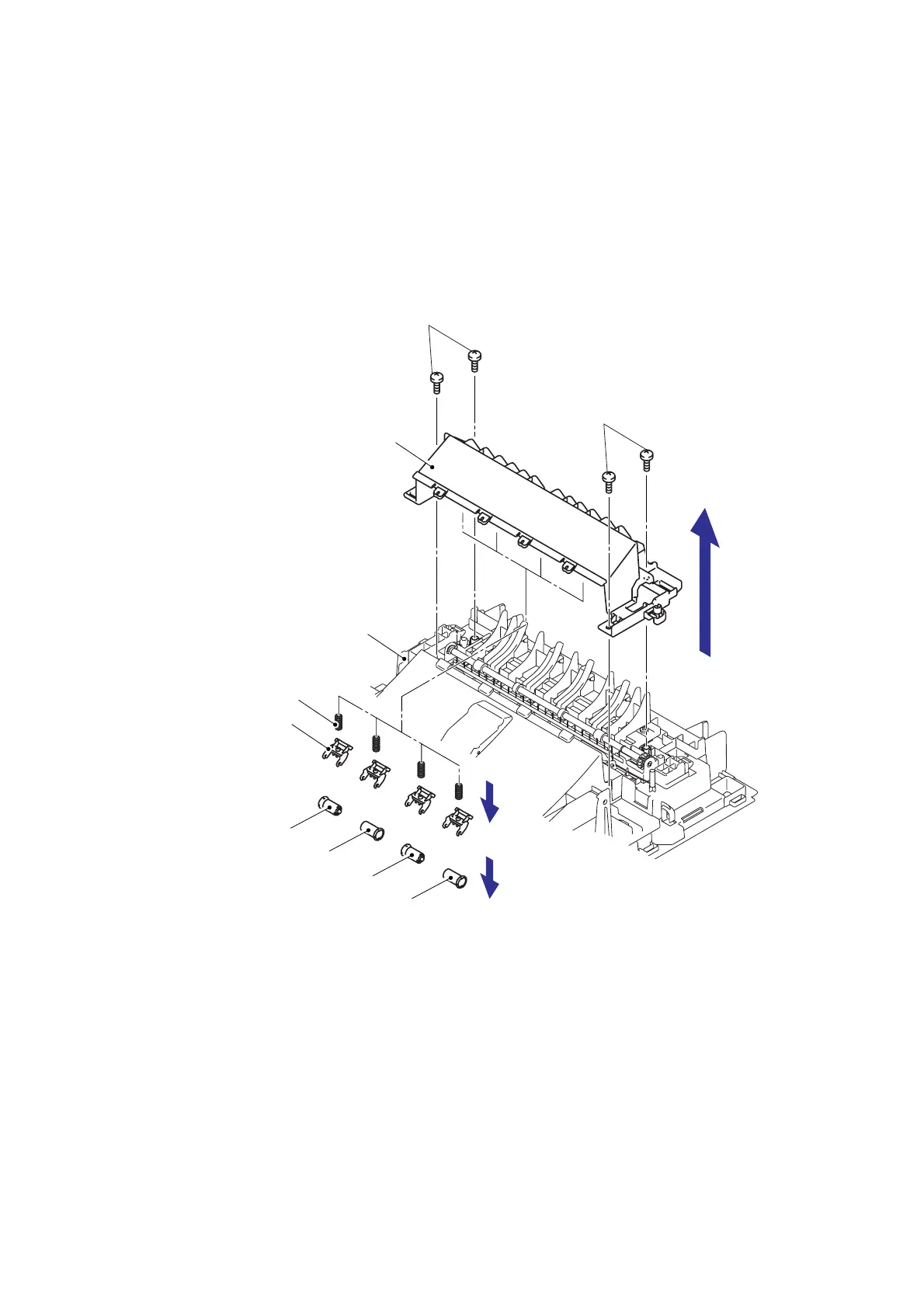

Fig. 5-210
1
2
3
Taptite bind B M4x12
Taptite bind B M4x12
Inner chute
Joint cover ASSY
Pinch roller spring
Pinch roller holder
Corrugation pinch rollers L
Corrugation pinch rollers R
Corrugation pinch rollers L
Corrugation pinch rollers R
